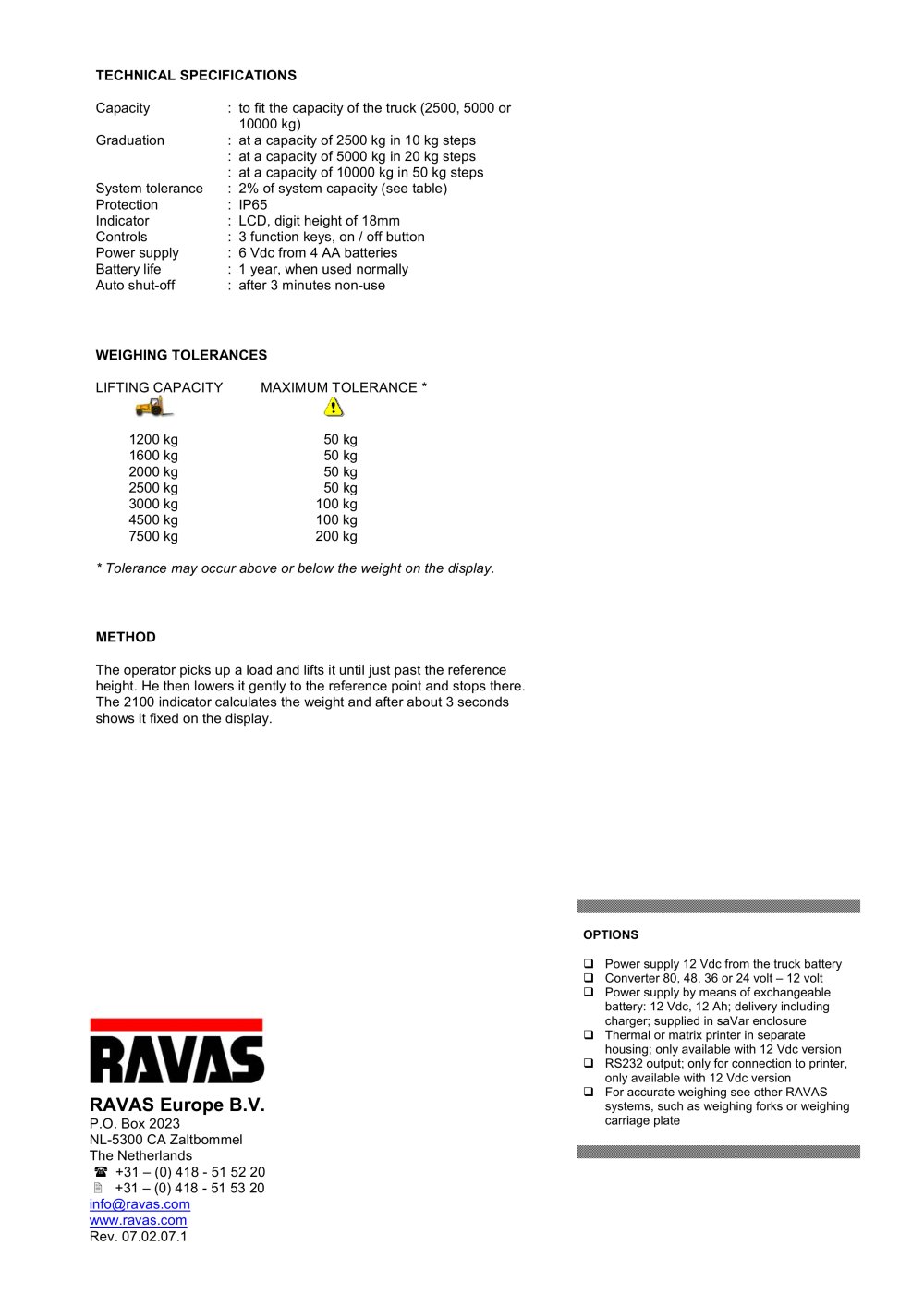

TECHNICAL SPECIFICATIONS Capacity : to fit the capacity of the truck (2500, 5000 or 10000 kg) Graduation : at a capacity of 2500 kg in 10 kg steps : at a capacity of 5000 kg in 20 kg steps : at a capacity of 10000 kg in 50 kg steps System tolerance : 2% of system capacity (see table) Protection : IP65 Indicator : LCD, digit height of 18mm Controls : 3 function keys, on / off button Power supply : 6 Vdc from 4 AA batteries Battery life : 1 year, when used normally Auto shut-off : after 3 minutes non-use WEIGHING TOLERANCES LIFTING CAPACITY MAXIMUM TOLERANCE * 1200 kg 50 kg 1600 kg 50 kg 2000 kg 50 kg 2500 kg 50 kg 3000 kg 100 kg 4500 kg 100 kg 7500 kg 200 kg * Tolerance may occur above or below the weight on the display. METHOD The operator picks up a load and lifts it until just past the reference height. He then lowers it gently to the reference point and stops there. The 2100 indicator calculates the weight and after about 3 seconds shows it fixed on the display.
OPTIONS Power supply 12 Vdc from the truck battery Converter 80, 48, 36 or 24 volt – 12 volt Power supply by means of exchangeable battery: 12 Vdc, 12 Ah; delivery including charger; supplied in saVar enclosure Thermal or matrix printer in separate housing; only available with 12 Vdc version

Forklift truck scales RCS - 56933 RAVAS Europe B.V.

RS232 output; only for connection to printer, only available with 12 Vdc version For accurate weighing see other RAVAS systems, such as weighing forks or weighing carriage plate P.O. Box 2023 NL-5300 CA Zaltbommel The Netherlands +31 – (0) 418 - 51 52 20 +31 – (0) 418 - 51 53 20 info@ravas.com www.ravas.com Rev. 07.02.07.1
