DuktilgodsDuctile Iron

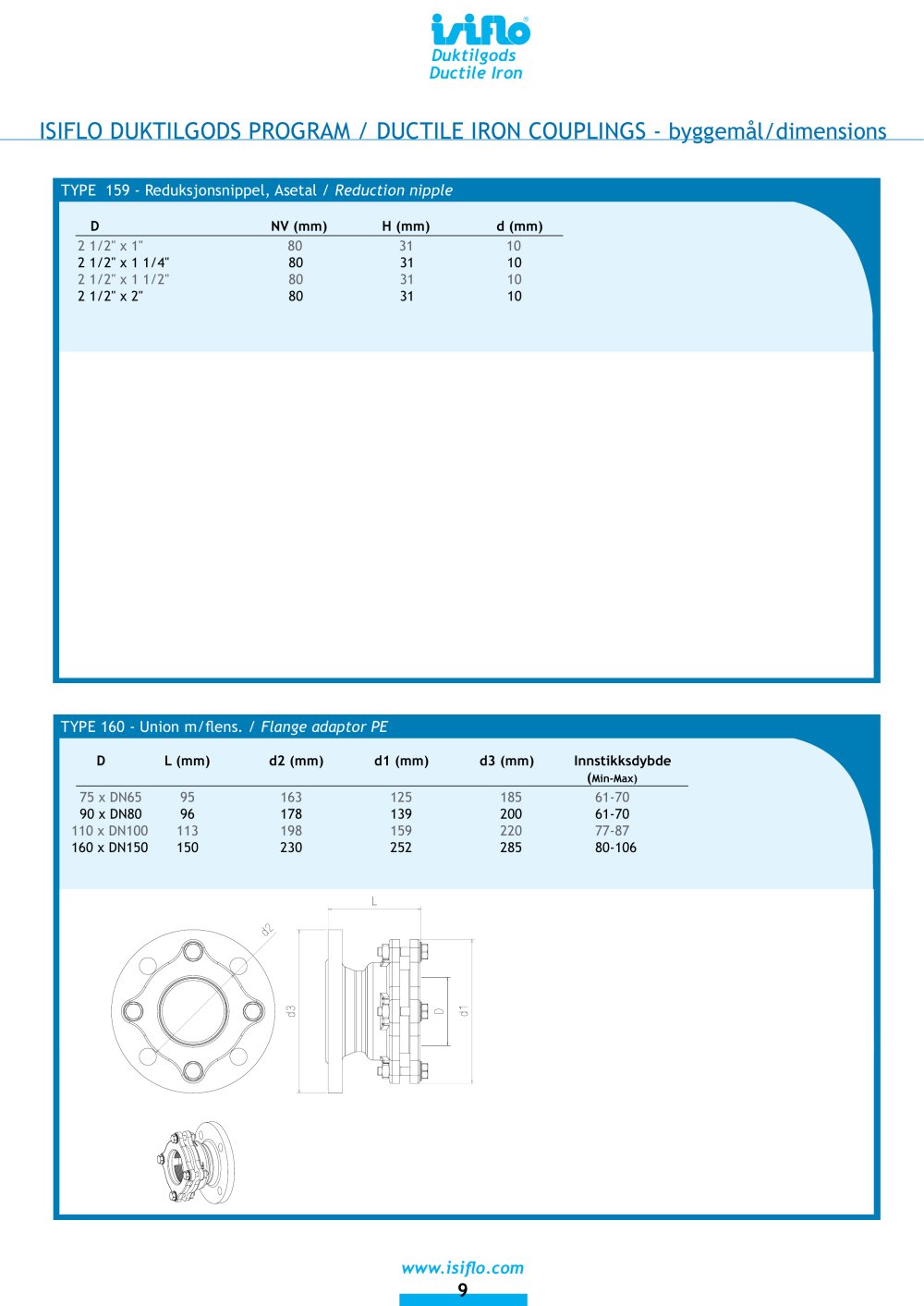

Isiflo Ductile Iron - 26457 ISIFLO DUKTILGODS PROGRAM / DUCTILE IRON COUPLINGS - byggemål/dimensions
TYPE 159 - Reduksjonsnippel, Asetal / Reduction nipple
D NV (mm) H (mm) d (mm) 2 1/2" x 1" 80 31 10 2 1/2" x 1 1/4" 80 31 10 2 1/2" x 1 1/2" 80 31 10 2 1/2" x 2" 80 31 10TYPE 160 - Union m/flens. / Flange adaptor PE
D L (mm) d2 (mm) d1 (mm) d3 (mm) Innstikksdybde (Min-Max) 75 x DN65 95 163 125 185 61-70 90 x DN80 96 178 139 200 61-70 110 x DN100 113 198 159 220 77-87 160 x DN150 150 230 252 285 80-106
