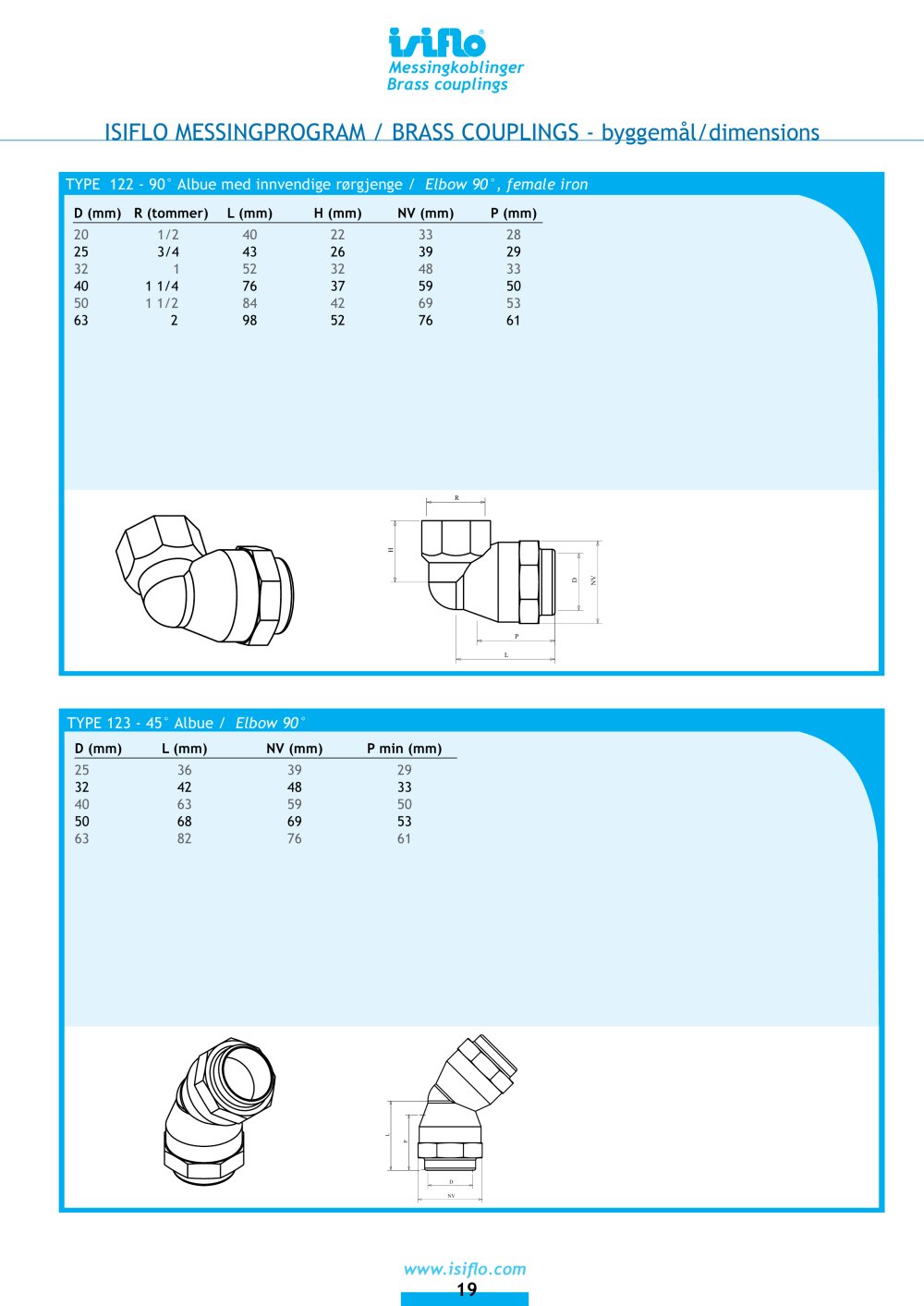

Isiflo Brass couplings - 26457 ISIFLO MESSINGPROGRAM / BRASS COUPLINGS - byggemål/dimensions

TYPE 122 - 90° Albue med innvendige rørgjenge / Elbow 90°, female iron
D (mm) R (tommer) L (mm) H (mm) NV (mm) P (mm) 20 1/2 40 22 33 28 25 3/4 43 26 39 29 32 1 52 32 48 33 40 1 1/4 76 37 59 50 50 1 1/2 84 42 69 53 63 2 98 52 76 61
R H D NV P L
TYPE 123 - 45° Albue / Elbow 90°
D (mm) L (mm) NV (mm) P min (mm) 25 36 39 29 32 42 48 33 40 63 59 50 50 68 69 53 63 82 76 61
L P D NV
