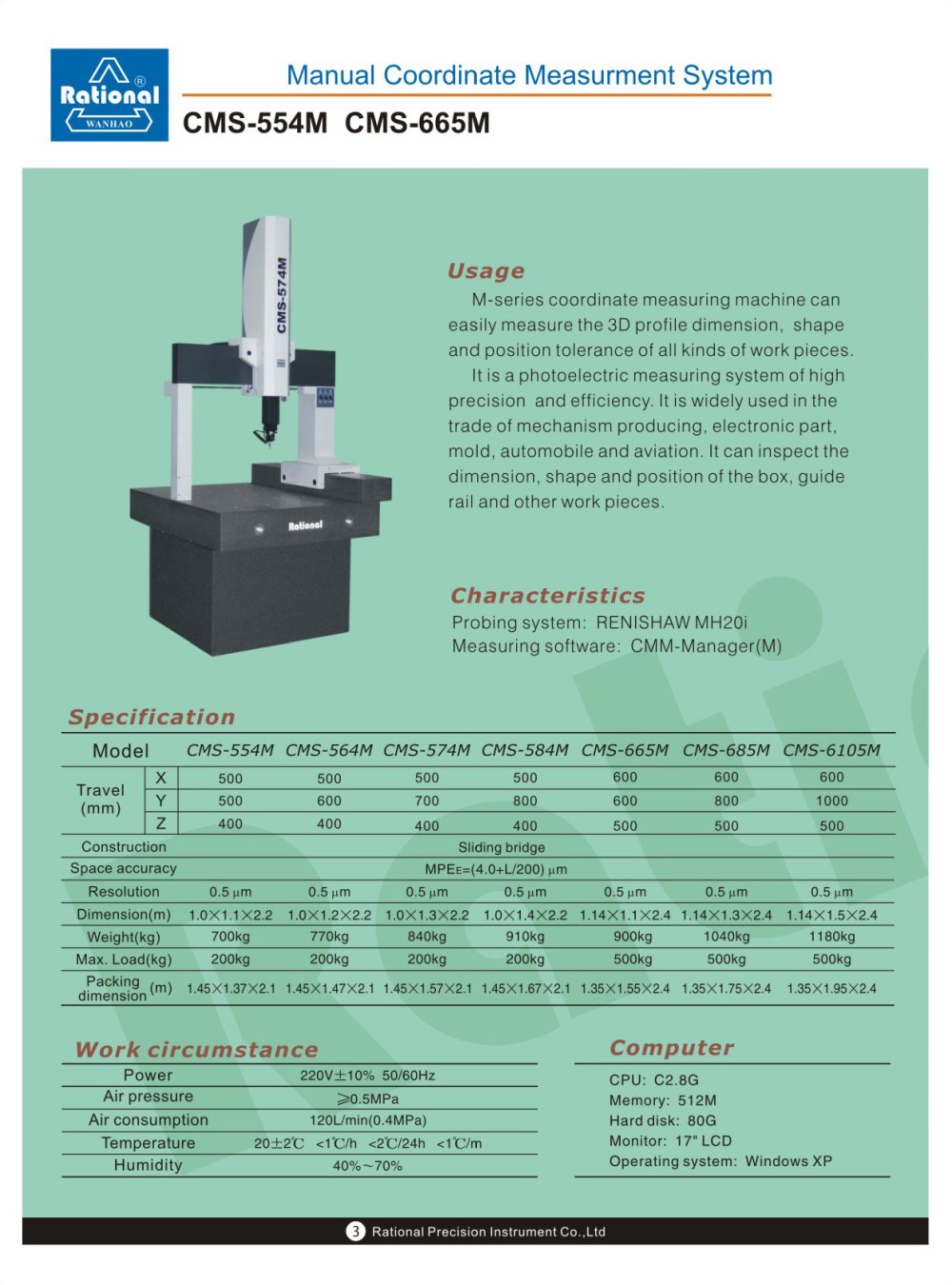

Manual Coordinate Measurment System CMS-554M CMS-665M

Usage

M-series coordinate measuring machine can easily measure the 3D profile dimension, shape and position tolerance of all kinds of work pieces.

It is a photoelectric measuring system of high precision and efficiency. It is widely used in the trade of mechanism producing, electronic part, mold, automobile and aviation. It can inspect the dimension, shape and position of the box, guide rail and other work pieces.

Characteristics

Probing system: RENISHAW MH20Ì Measuring software: CMM-Manager(M)

Spe ci fica ti on


Mode		CMS-554M	CMS-564M	CMS-574M CMS-584M	CMS-665M	CMS-685M	CMS-6105M
Travel (mm)	X	500	500	500 500	600	600	600
	Y	500	600	700 800	600	800	1000
	Z	4 00	400	400 400	500	500	500
Construction				Sliding bridge
Space accuracy				MPEe=(4.0+L/200) urn
Resolution		0.5 iim	0.5 um	0.5 um 0.5 urn	0.5 urn	0.5 urn	0.5 jim
Dimension(m)		1.0X1.1X2.2	1.0X1.2X2.2	1.0X1.3X2.2 1.0X1.4X2.2	1.14X1.1X2.4	1.14X1.3X2.4	1.14X1.5X2.4
Weight(kg)		700kg	770kg	840kg 910kg	900kg	1040kg	1180kg
Max. Load(kg)		200kg	200kg	200kg 200kg	500kg	500kg	500kg
Packing dimensior	(m)	1.45X1.37X2.1	1.45X1.47X2.1	1.45X1.57X2.1 1.45X1.67X2.1	1.35X1.55X2.4	1.35X1.75X2.4	1.35X1.95X2.4

Computer

Work circumstance


Power	220V±10% 50/60HZ	CPU: C2.8G
Air pressure	3?0.5MPa	Memory: 512M
Air consumption	120L/min(0.4MPa)	Hard disk: 80G
Temperature	20±2*C <1°C/h <2°C/24h <1°C/m	Monitor: 17" LCD
Humidity	40%-70%	Operating system: Windows XP
