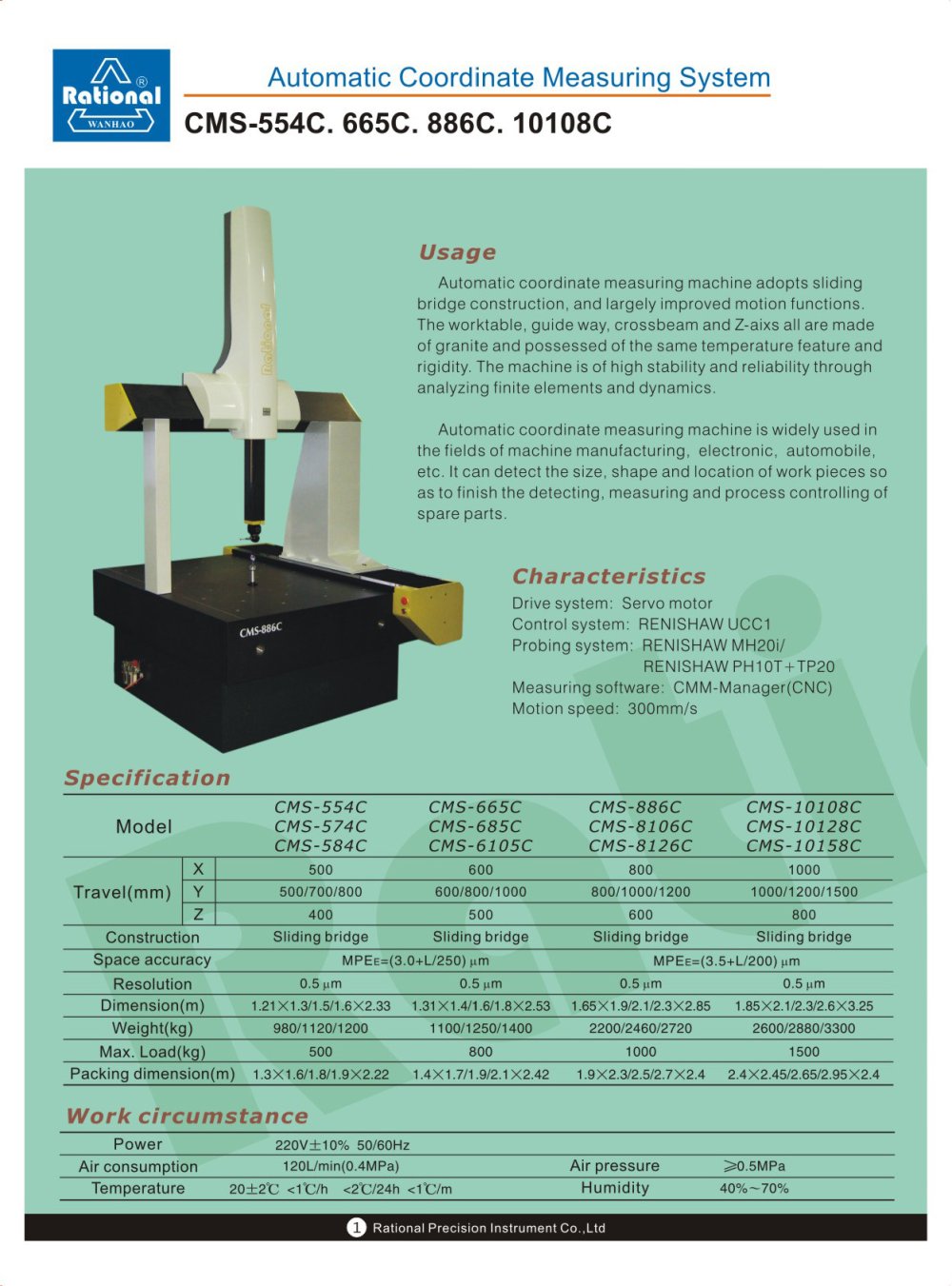

Automatic Coordinate Measuring System

PI CMS-554C. 665C. 886C. 10108C

Usage

Automatic coordinate measuring machine adopts sliding bridge construction, and largely improved motion functions. The worktable, guide way, crossbeam and Z-aixs all are made of granite and possessed of the same temperature feature and rigidity. The machine is of high stability and reliability through analyzing finite elements and dynamics.

Automatic coordinate measuring machine is widely used in the fields of machine manufacturing, electronic, automobile, etc. It can detect the size, shape and location of work pieces so as to finish the detecting, measuring and process controlling of spare parts.

Characteris tics

Drive system: Servomotor Control system: RENISHAW UCC1 Probing system: RENISHAW MH20i/

RENISHAW PH10T+TP20 Measuring software: CMM-Manager(CNC) Motion speed: 300mm/s

Specification


Model		CMS-554C CM5-574C CMS-584C	CMS-665C CMS-685C CMS-6105C	CMS-886C CMS-8106C CM5-8126C	CMS-10108C CMS-10128C CMS-10158C
	X	500	600	800	1000
Travel(mm)	Y	500/700/800	600/800/1000	800/1000/1200	1000/1200/1500
	Z	400	500	600	800
Construction		Sliding bridge	Sliding bridge	Sliding bridge	Sliding bridge
Space accuracy		MPEe=	3.0+L/250) _t.m	MPEe=	(3.5+L/200) ₍im
Resolution		0.5 Mm	0.5 (im	0.5 (im	0.5 Mm
Dimension(m)		1.21X1.3/1.5/1.6X2.33	1.31X1.4/1.6/1.8X2.53	1.65X1.9/2.1/2.3X2.85 1.85X2.1/2.3/2.6X3.25
Weight(kg)		980/1120/1200	1100/1250/1400	2200/2460/2720	2600/2880/3300
Max. Load(kg)		500	800	1000	1500

Packing dimension(m) 1.3X1.6/1.8/1.9X2.22 1.4X1.7/1.9/2.1X2.42 1.9X2.3/2.5/2.7X2.4 2.4X2.45/2.65/2.95X2.4

Work circumstance


Power	220V±10% 50/60HZ
Air consumption	120L/min(0.4MPa)	Air pressure	^0.5MPa
Temperature	20±2⁼C <TC/h <2°C724h <1°C/m	Humidity	40%-70%
