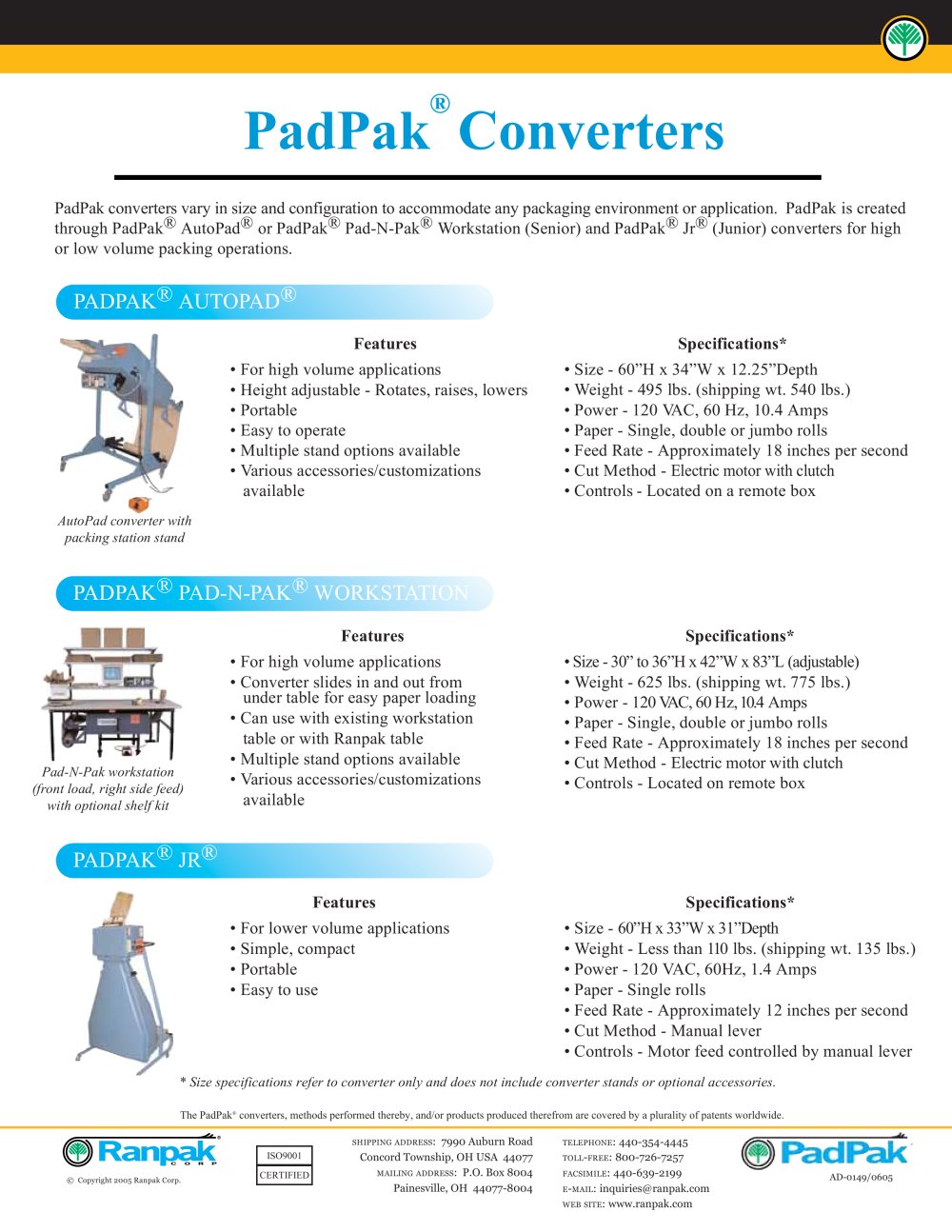

| PadPak Converters | |||||||||||||||||||||||||||||||||||||||||||||||
| PadPak converters vary in size and configuration to accommodate any packaging environment or application. PadPak is created through PadPak® AutoPad® or PadPak® Pad-N-Pak® Workstation (Senior) and PadPak® Jr® (Junior) converters for high or low volume packing operations. | |||||||||||||||||||||||||||||||||||||||||||||||
| PADPAK® AUTOPAD® | |||||||||||||||||||||||||||||||||||||||||||||||
| Features • For high volume applications • Height adjustable - Rotates, raises, lowers • Portable • Easy to operate • Multiple stand options available • Various accessories/customizations available | Specifications* • Size - 60"H x 34"W x 12.25"Depth • Weight - 495 lbs. (shipping wt. 540 lbs.) • Power - 120 VAC, 60 Hz, 10.4 Amps • Paper - Single, double or jumbo rolls • Feed Rate - Approximately 18 inches per second • Cut Method - Electric motor with clutch • Controls - Located on a remote box | ||||||||||||||||||||||||||||||||||||||||||||||
| AutoPad converter with packing station stand | |||||||||||||||||||||||||||||||||||||||||||||||
| PADPAK® PAD-N-PAK® | |||||||||||||||||||||||||||||||||||||||||||||||
| WORKS | |||||||||||||||||||||||||||||||||||||||||||||||
| Features | Specifications* • Size - 30" to 36"H x 42"W x 83"L (adjustable) • Weight - 625 lbs. (shipping wt. 775 lbs.) • Power - 120 VAC, 60 Hz, 10.4 Amps • Paper - Single, double or jumbo rolls • Feed Rate - Approximately 18 inches per second • Cut Method - Electric motor with clutch • Controls - Located on remote box | ||||||||||||||||||||||||||||||||||||||||||||||
| • For high volume applications • Converter slides in and out from under table for easy paper loading • Can use with existing workstation table or with Ranpak table • Multiple stand options available • Various accessories/customizations available | |||||||||||||||||||||||||||||||||||||||||||||||
| Pad-N-Pak workstation (front load, right side feed) with optional shelf kit | |||||||||||||||||||||||||||||||||||||||||||||||
| PADPAK® JR® | |||||||||||||||||||||||||||||||||||||||||||||||
| Features • For lower volume applications • Simple, compact • Portable • Easy to use | Specifications* • Size - 60"H x 33"W x 31"Depth • Weight - Less than 110 lbs. (shipping wt. 135 lbs.) • Power - 120 VAC, 60Hz, 1.4 Amps • Paper - Single rolls • Feed Rate - Approximately 12 inches per second • Cut Method - Manual lever • Controls - Motor feed controlled by manual lever | ||||||||||||||||||||||||||||||||||||||||||||||
| * Size specifications refer to converter only and does not include converter stands or optional accessories. | |||||||||||||||||||||||||||||||||||||||||||||||
| The PadPak® converters, methods performed thereby, and/or products produced therefrom are covered by a plurality of patents worldwide. | |||||||||||||||||||||||||||||||||||||||||||||||
| shipping address: 7990 Auburn Road Concord Township, OH USA 44077 mailing address: P.O. Box 8004 Pamesville, OH 44077-8004 | |||||||||||||||||||||||||||||||||||||||||||||||
| telephone: 440-354-4445 toll-free: 800-726-7257 facsimile: 440-639-2199 e-mail: inquiries@ranpak.com website: www.ranpak.com | |||||||||||||||||||||||||||||||||||||||||||||||
| inmlc | |||||||||||||||||||||||||||||||||||||||||||||||
| iso9001 | |||||||||||||||||||||||||||||||||||||||||||||||
| certified | |||||||||||||||||||||||||||||||||||||||||||||||
| ad-0149/0605 | |||||||||||||||||||||||||||||||||||||||||||||||
| © Copyright 2005 Ranpak Corp. | |||||||||||||||||||||||||||||||||||||||||||||||
