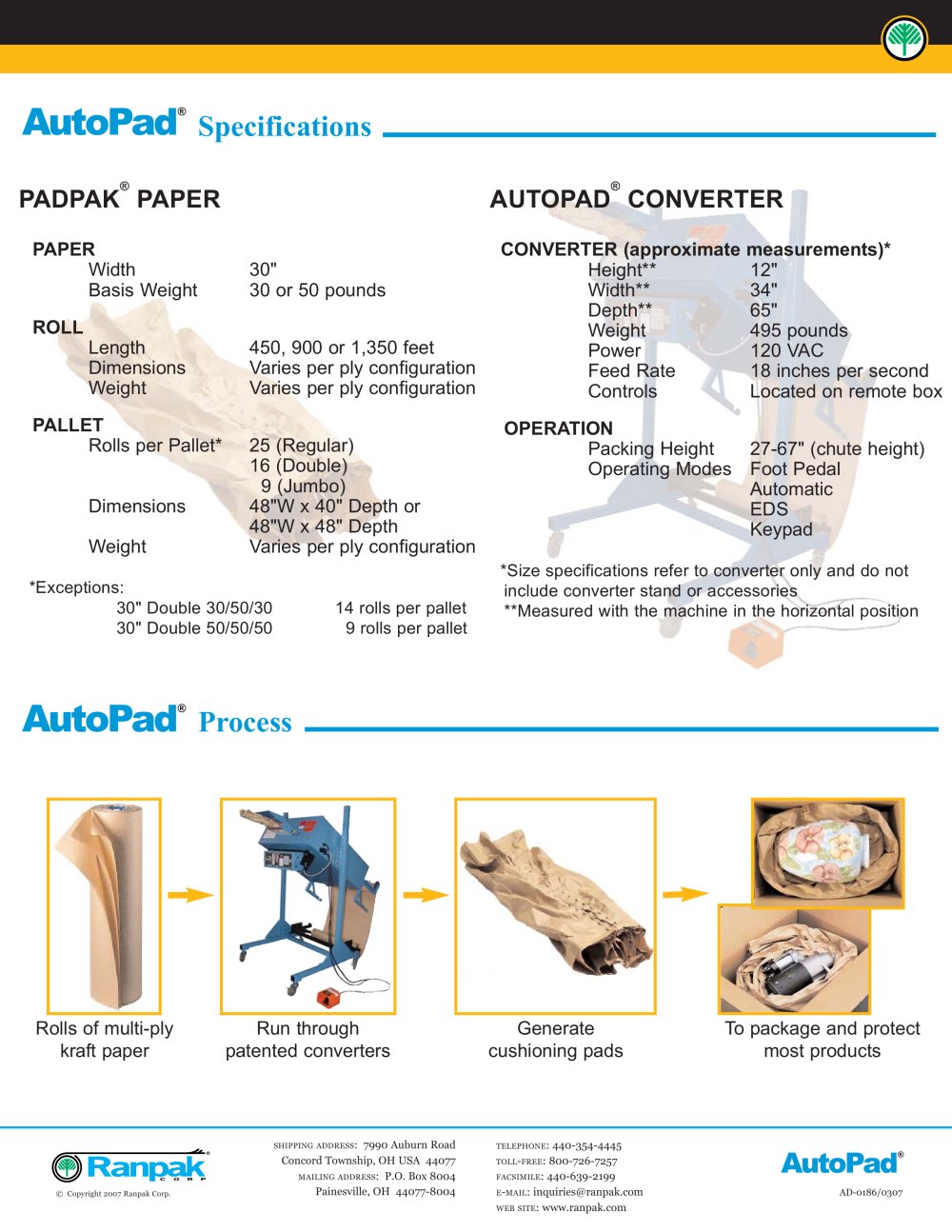

AutoPad
®Specifications
PADPAK
®PAPER AUTOPAD
OPERATION® Packing Height27-67" (chute height) Operating ModesFoot PedalAutomatic EDS Keypad
CONVERTER
PAPER CONVERTER (approximate measurements)* Width30" Basis Weight30 or 50 pounds Height**12" Width**34" Depth**65" Weight495 pounds Power120 VAC Feed Rate18 inches per second ControlsLocated on remote box ROLL PALLET Length450, 900 or 1,350 feet DimensionsVaries per ply configuration WeightVaries per ply configuration Rolls per Pallet*25 (Regular)16 (Double)9 (Jumbo)Dimensions48"W x 40" Depth or48"W x 48" DepthWeightVaries per ply configuration*Size specifications refer to converter only and do not include converter stand or accessories **Measured with the machine in the horizontal position *Exceptions:30" Double 30/50/3014 rolls per pallet 30" Double 50/50/509 rolls per pallet
AutoPad
®Process
Rolls of multi-plykraft paperRun through patented convertersGenerate cushioning padsTo package and protectmost products® SHIPPINGADDRESS :7990 Auburn RoadConcord Township, OH USA 44077 TELEPHONE :440-354-4445 ® TOLL - FREE :800-726-7257 MAILINGADDRESS :P.O. Box 8004Painesville, OH 44077-8004 FACSIMILE :440-639-2199
