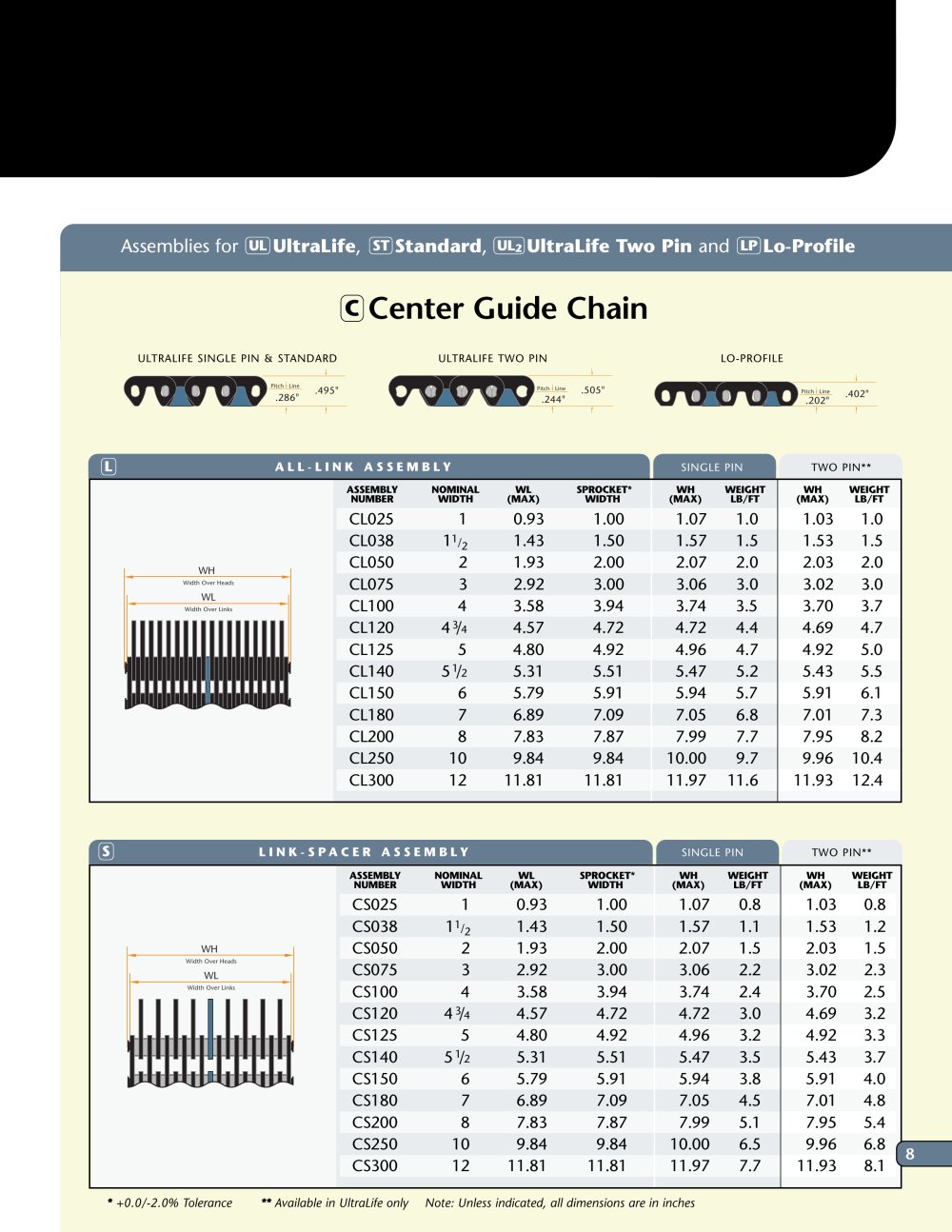

Assemblies for UL UltraLife, (ST Standard, (UL2 UltraLife Two Pin and (LPLo-Profile

<TXHTX?V

Pitch Line

fitch Lme .505"

.244"

.495"

— ^.402"

.286"

SEMBLY

TWO PIN**

ASSEMBLY NUMBER

CL025 CL038 CL050 CL075 CL100 CL120 CL125 CL140 CL150

CL180 CL200 CL250

CL300

NOMINAL WIDTH

2 3 4

4³/4

5¹/2

7 8 10

(MAX)

0.93 1.43 1.93 2.92

3.58 4.57 4.80 5.31 5.79 6.89 7.83 9.84 11.81

SPROCKET* WIDTH

1.00 1.50 2.00 3.00 3.94

4.72 4.92 5.51 5.91 7.09 7.87 9.84

11.81

(MAX)

1.07 1.57 2.07 3.06

3.74

4.72 4.96 5.47 5.94 7.05

7.99 10.00 11.97

WEIGHT LB/FT

1.0 1.5 2.0 3.0 3.5 4.4 4.7 5.2 5.7 6.8 7.7 9.7 11.6

(MAX)

1.03 1.53 2.03 3.02

3.70 4.69 4.92 5.43 5.91 7.01 7.95 9.96 11.93

WEIGHT LB/FT

1.0

1.5

2.0

3.0

3.7

4.7

5.0

5.5

6.1

7.3

8.2

10.4

12.4

Width Over Heads

Width Over Links

9999

IJSi


CER ASSEMBLY				SINÜLt PIN		IWO	PIN**
ASSEMBLY NUMBER	NOMINAL WIDTH	WL (MAX)	SPROCKET* WIDTH	WH (MAX)	WEIGHT LB/FT	WH (MAX)	WEIGHT LB/FT
CS025	1	0.93	1.00	1.07	0.8	1.03	0.8
CS038	11/₂	1.43	1.50	1.57	1.1	1.53	1.2
CS050	2	1.93	2.00	2.07	1.5	2.03	1.5
CS075	3	2.92	3.00	3.06	2.2	3.02	2.3
CS100	4	3.58	3.94	3.74	2.4	3.70	2.5
CS120	4³/4	4.57	4.72	4.72	3.0	4.69	3.2
CS125	5	4.80	4.92	4.96	3.2	4.92	3.3
CS140	5¹/2	5.31	5.51	5.47	3.5	5.43	3.7
CS150	6	5.79	5.91	5.94	3.8	5.91	4.0
CS180	7	6.89	7.09	7.05	4.5	7.01	4.8
CS200	8	7.83	7.87	7.99	5.1	7.95	5.4
CS250	10	9.84	9.84	10.00	6.5	9.96	6.8
CS300	12	11.81	11.81	11.97	7.7	11.93	8.1
UltraLife only	Note: Unless indicated, all dimensions are i			n inches

Width Over Heads

Width Over Links

* +0.0/-2.0% Tolerance
