Assemblies for
UL UltraLife ,
ST Standard ,
UL 2 UltraLife Two Pin and
LP Lo-Profile

C

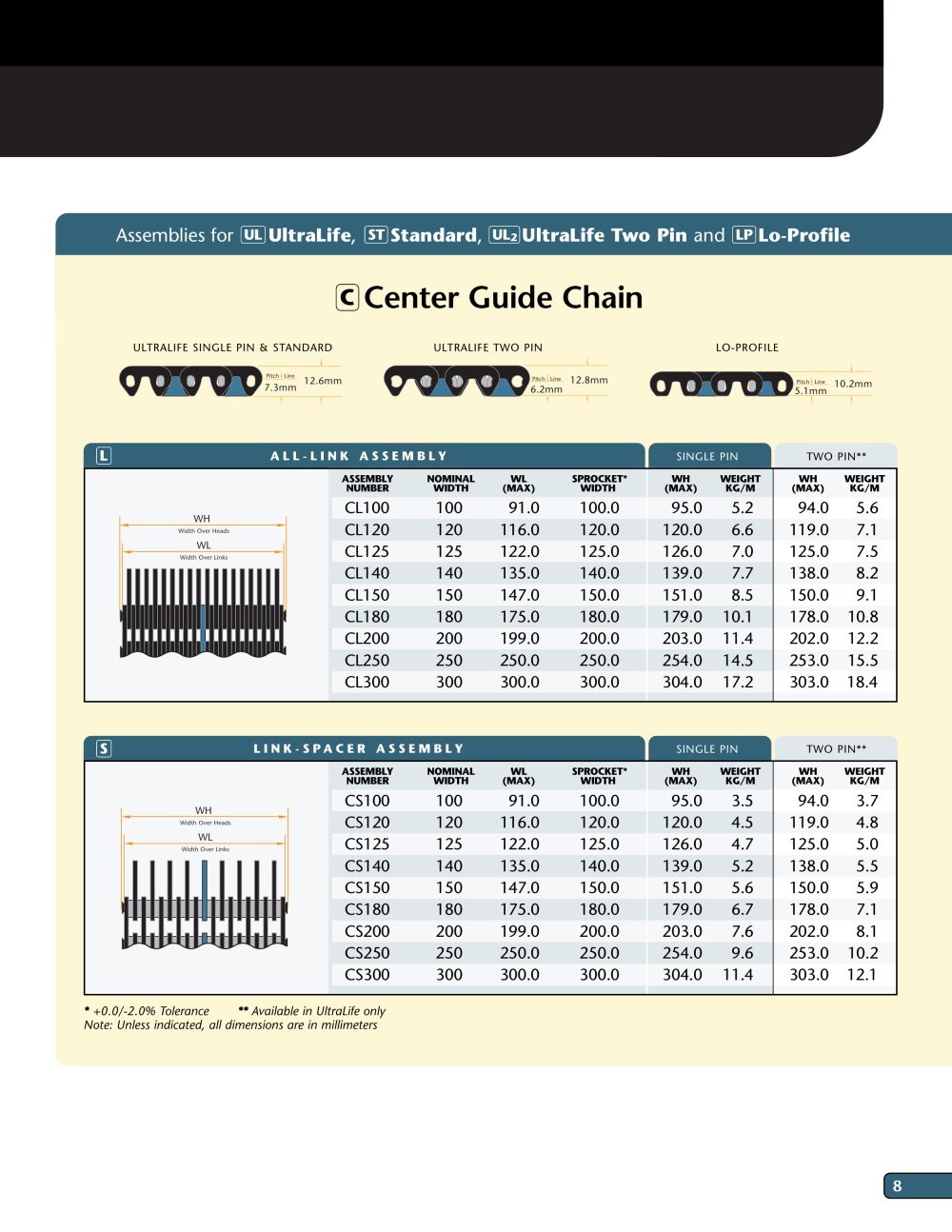

Glass Conveying Chain - 17760 Center Guide Chain

ULTRALIFE SINGLE PIN & STANDARD LO-PROFILEULTRALIFE TWO PIN Pitch Line Pitch Line 7.3mm12.6mm Pitch Line 6.2mm12.8mm 5.1mm10.2mm L ALL-LINK ASSEMBLY SINGLE PINTWO PIN** ASSEMBLYNOMINAL WLSPROCKET* WHWEIGHTWHWEIGHTNUMBER WIDTH (MAX) WIDTH (MAX) KG/M (MAX) KG/M WHWL CL100100 91.0 100.0 95.0 5.2 94.0 5.6 CL120 120 116.0 120.0 120.0 6.6119.0 7.1 CL125 125 122.0 125.0 126.0 7.0125.0 7.5 CL140 140 135.0 140.0 139.0 7.7138.0 8.2 CL150 150 147.0 150.0 151.0 8.5 150.0 9.1 CL180 180 175.0 180.0 179.0 10.1178.0 10.8 CL200 200 199.0 200.0 203.0 11.4202.0 12.2 CL250 250 250.0 250.0 254.0 14.5253.0 15.5 CL300 300 300.0 300.0 304.0 17.2303.0 18.4 Width Over Heads Width Over Links S LINK-SPACER ASSEMBLY SINGLE PINTWO PIN** ASSEMBLYNOMINAL WLSPROCKET*WHWEIGHTWHWEIGHT NUMBERWIDTH (MAX) WIDTH (MAX) KG/M (MAX) KG/M WHWL CS100100 91.0 100.0 95.0 3.5 94.0 3.7 CS120 120 116.0 120.0 120.0 4.5119.0 4.8 CS125 125 122.0 125.0 126.0 4.7125.0 5.0 CS140 140 135.0 140.0 139.0 5.2138.0 5.5 CS150 150 147.0 150.0 151.0 5.6 150.0 5.9 CS180 180 175.0 180.0 179.0 6.7178.0 7.1 CS200 200 199.0 200.0 203.0 7.6202.0 8.1 CS250 250 250.0 250.0 254.0 9.6253.0 10.2 CS300 300 300.0 300.0 304.0 11.4303.0 12.1 Width Over Heads Width Over Links * +0.0/-2.0% Tolerance ** Available in UltraLife only Note: Unless indicated, all dimensions are in millimeters 8
