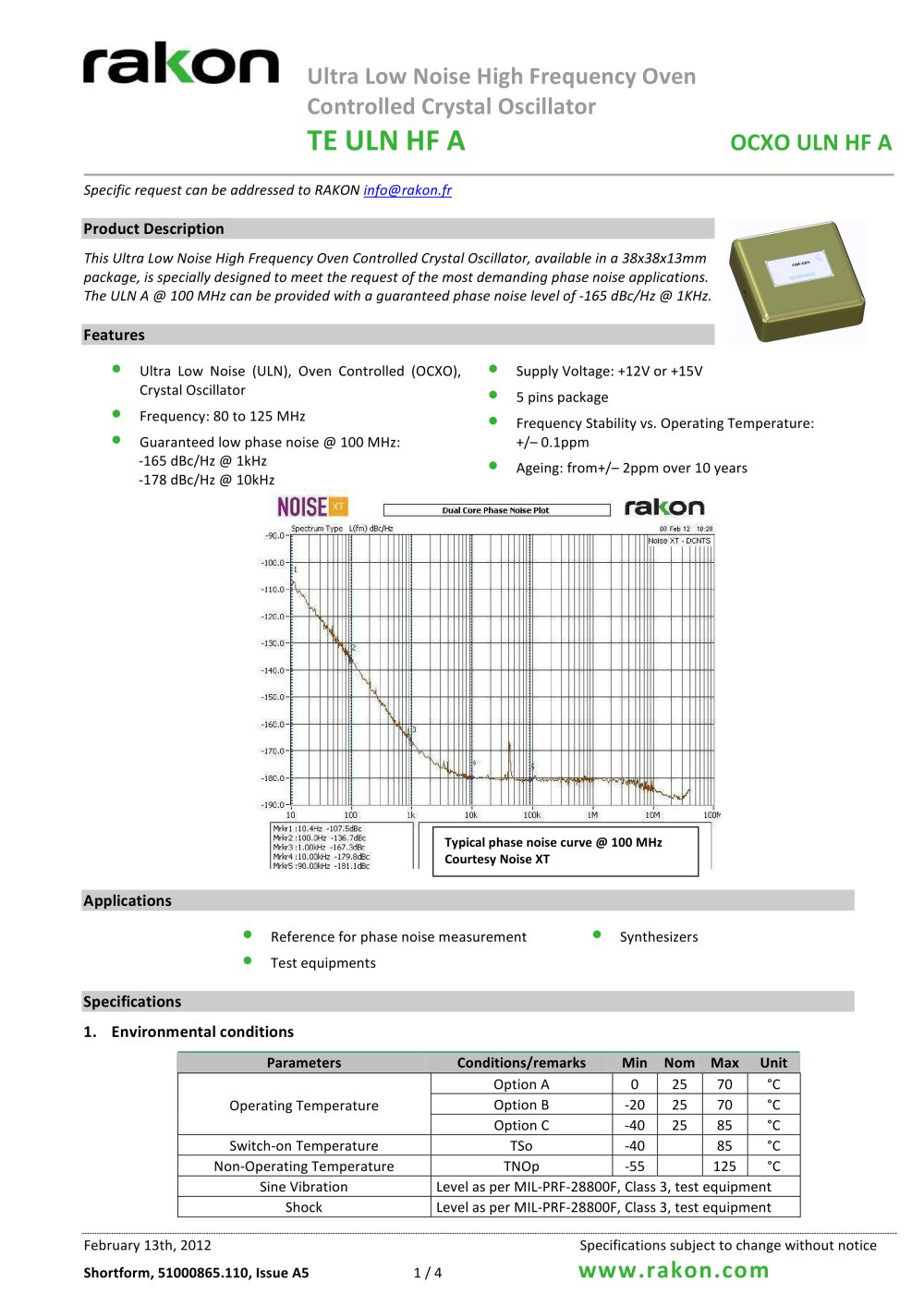

rai on Ultra Low Noise High Frequency Oven Controlled Crystal Oscillator TE ULN HF A OCXO ULN HF A Spécifie request can be addressed to RAKON info@rakon.fr Product Description This Ultra Low Noise High Frequency Oven Controlled Crystal Oscillator, available in a 38x38x13mm package, is specially designed to meet the request of the most demanding phase noise applications. The ULN A @ 100 MHz can be provided with a guaranteed phase noise level of -165 dBc/Hz @ 1KHz. Features Ultra Low Noise (ULN), Oven Controlled (OCXO), Crystal Oscillator Frequency: 80 to 125 MHz Guaranteed low phase noise @ 100 MHz: -165 dBc/Hz @ 1kHz -178dBc/Hz @ 10kHz Supply Voltage: +12V or +15V 5 pins package Frequency Stability vs. Operating Temperature: +/- 0.1ppm Ageing: from+/- 2ppm over 10 years Dual Core Phase Noise Plot NOISE —i ral on Spectrum Type L(Fm) dBc/Hz F.eb 12 1Û:28 Mrkrl : 10.4Hz -107.5dBc Mrkr2 :100.0Hz -136.7dBc Mrkr3 :1.00kHz -167.3dBc Mrkr4 :10.00kHz -179,8dBc MrkrB :90.00kHz -lSl.ldBc Typical phase noise curve @ 100 MHz Courtesy Noise XT Applications • Reference for phase noise measurement • Synthesizers • Test equipments Specifications 1. Environmental conditions Parameters Conditions/remarks Min Nom Max Unit Operating Temperature Option A 0 25 70 °C Option B -20 25 70 °C Option C -40 25 85 °C Switch-on Temperature TSo -40 85 °C Non-Operating Temperature TNOp -55 125 °C Sine Vibration Level as per MIL-PRF-28800F, Class 3, test equipment Shock Level as per MIL-PRF-28800F, Class 3, test equipment February 13th, 2012 1 / 4 Specifications subject to change without notice www.rakon.com Shortform, 51000865.110, Issue A5
