| | | RAININ® offers pipettes and tips in 2 shaft designs | | |
| | | |
| | | LTS® Cylindrical Shaft / Tip System | | |
| | | |
| | | • cylindrical design reduces tip ejection force • Low force means freedom from tired hands | | |
| | | |

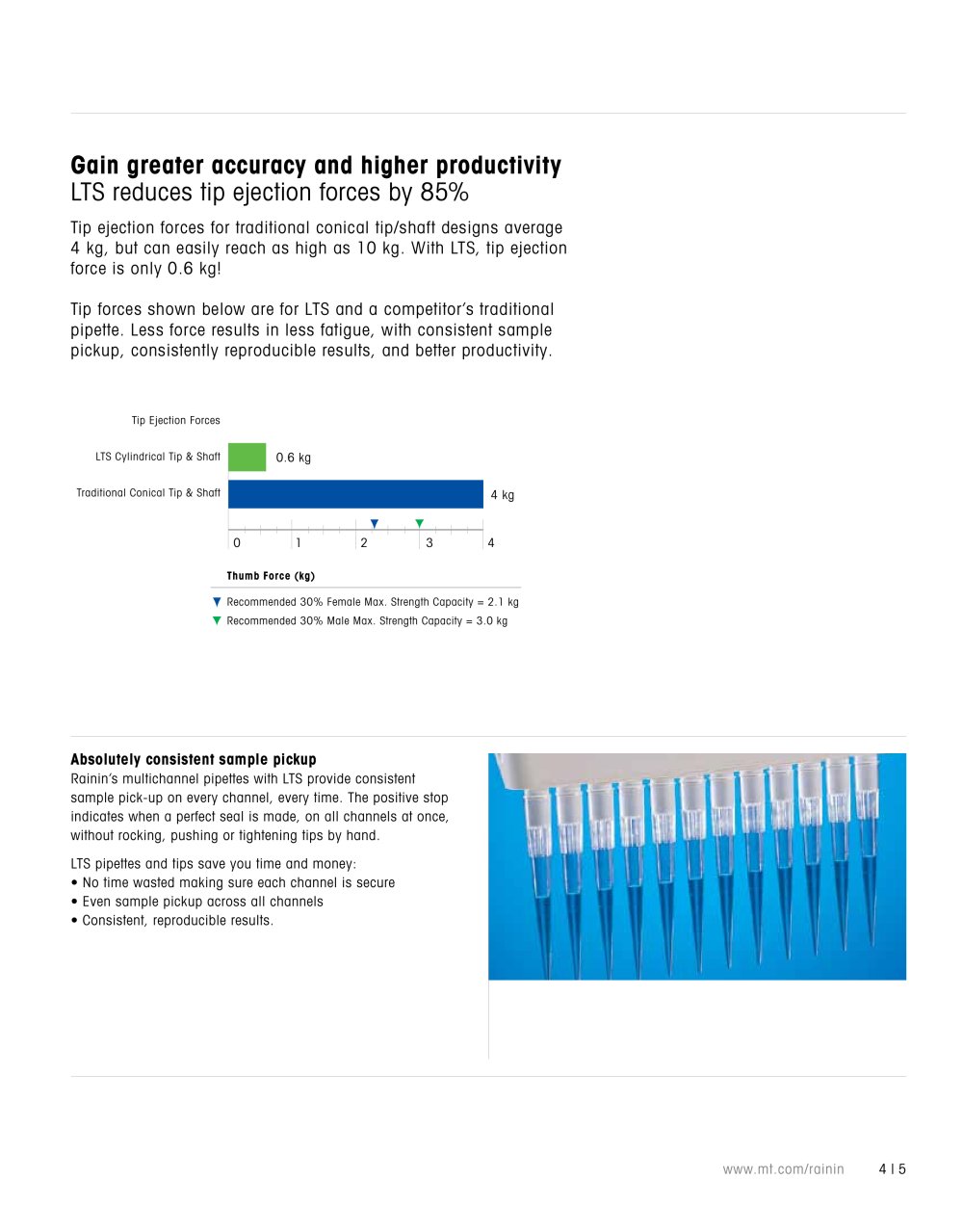

| | | LTS reduces tip ejection forces by 85% With traditional conical tip/shaft designs, tip ejection forces can be as high as 10 kg, with an average of 4 kg. Tip ejection force is only 0.6 kg with LTS. | | |
| | | |
| | | Tip Ejection Forces LTS Cylindrical Tip & Shaft Traditional Conical Tip & Shaft | | |
| | | 0.6 kg | | |
| | | |
| | | 4 kg | | |
| | | |
| | | |
| | | 0 Thumb Force (kg) | | |
| | | |
| | | J Recommended 30% Female Max. Strength Capacity = 2.1 kg ▼ Recommended 30% Male Max. Strength Capacity = 3.0 kg | | |
| | | LTS cylindrical tip and shaft | | |
| | | |
| | | | | | | | | | fl | Cylindrical tip with small seal area ™« | | | | Positive stop eliminates jamming | | | | t t | | | | | | | | | | |
| | | Consistent seal without excessive force The LTS cylindrical design produces a reliable, consistent seal without excessive force. LTS tips are thin-walled and incorporate a small, well-defined seal area and a positive stop. The positive stop lets you know exactly when the seal is made - no need to "jam" or pound the shaft into the tip. | | |
| | | |
| | | |
| | | For L-, FL-, RL-, E1, E3- models and all multichannel pipettes | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | |
