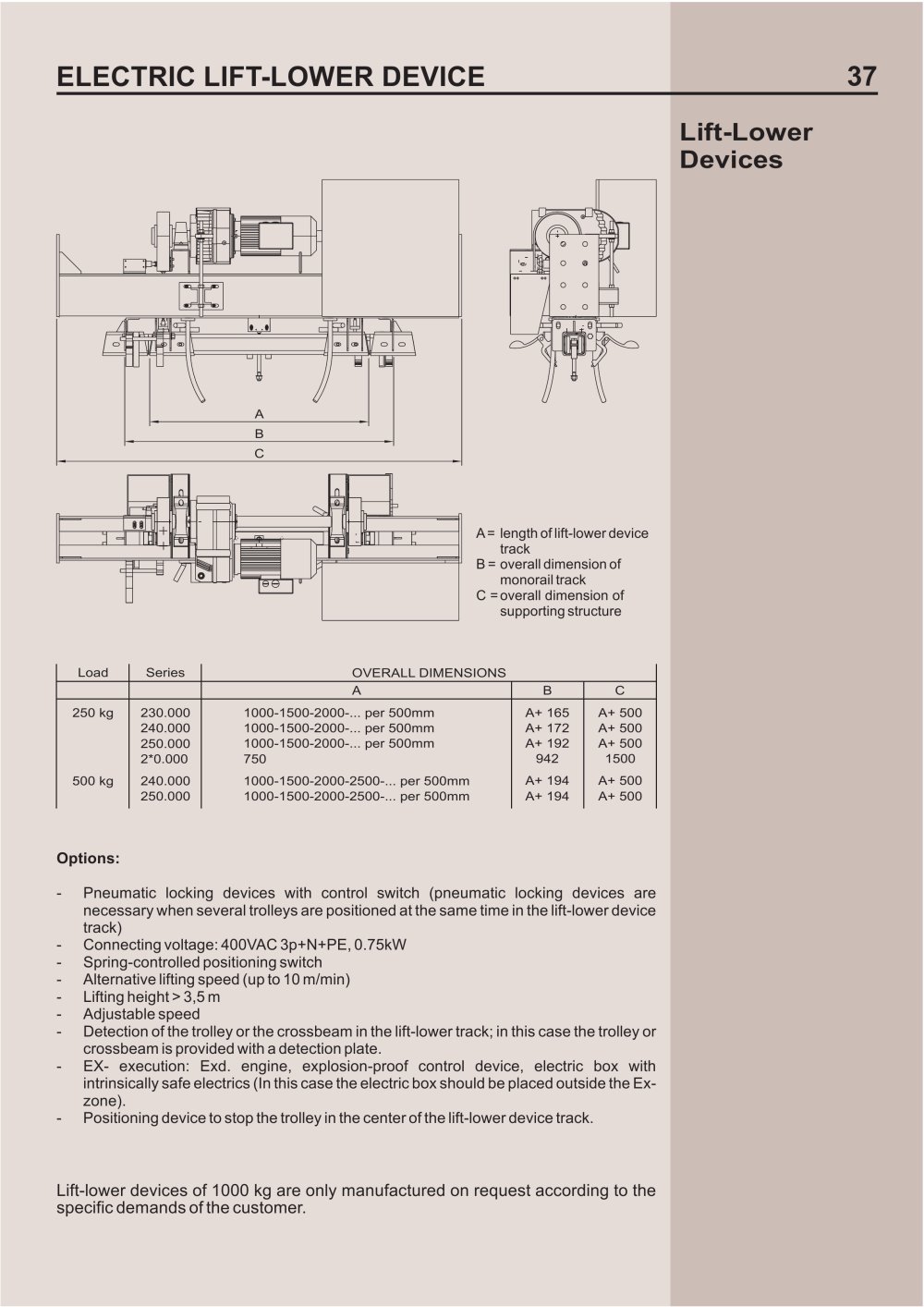

ELECTRIC LIFT-LOWER DEVICE 37 Lift-Lower Devices A B C 250 kg 230.000 1000-1500-2000-... per 500mm A+ 165 Series A+ 500 Load A B C OVERALL DIMENSIONS 240.000 1000-1500-2000-... per 500mm A+ 172 A+ 500 250.000 1000-1500-2000-... per 500mm A+ 192 A+ 500 500 kg 240.000 1000-1500-2000-2500-... per 500mm A+ 194 A+ 500 250.000 1000-1500-2000-2500-... per 500mm A+ 194 A+ 500 A= length of lift-lower device track B = overall dimension of monorail track C =overall dimension of supporting structure Options: - Pneumatic locking devices with control switch (pneumatic locking devices are necessary when several trolleys are positioned at the same time in the lift-lower device track) - Connecting voltage: 400VAC3p+N+PE, 0.75kW - Spring-controlled positioning switch - Alternative lifting speed (up to 10 m/min) - Lifting height > 3,5m - Adjustable speed - Detection of the trolley or the crossbeam in the lift-lower track; in this case the trolley or crossbeam is provided with a detection plate. - EX- execution: Exd. engine, explosion-proof control device, electric box with intrinsically safe electrics (In this case the electric box should be placed outside the Exzone). - Positioning device to stop the trolley in the center of the lift-lower device track. Lift-lower devices of 1000 kg are only manufactured on request according to the specific demands of the customer. 2*0.000 750 942 1500
