Catalogue Standard Keyboards

Page

/ 20

Make a request

/ 20

Text version of the page

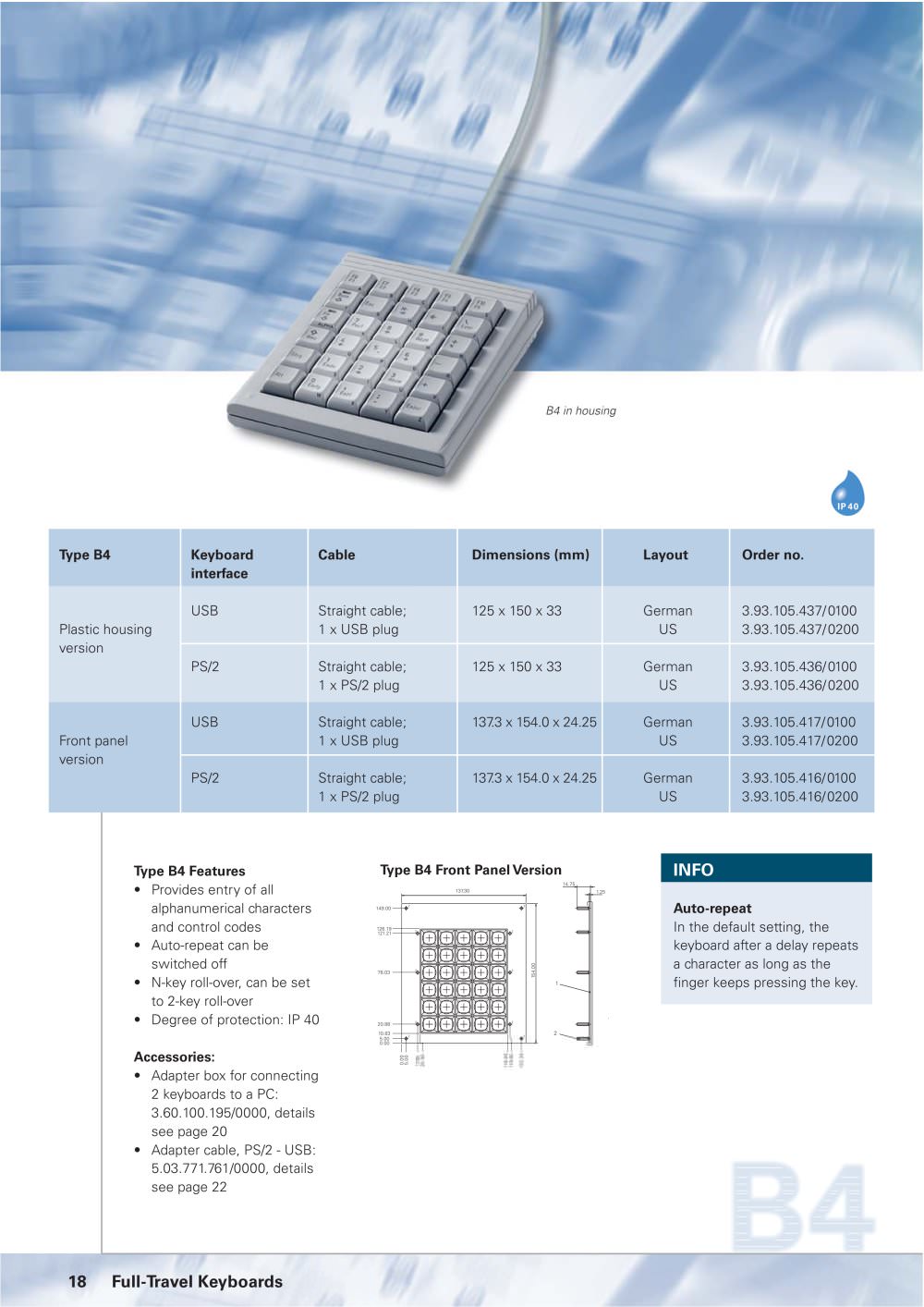

	Type B4 Keyboard Cable Dimensions (mm) interface	Layout Order no.
	USB Straight cable; 125 x 150 x 33 Plastic housing 1 x USB plug version PS/2 Straight cable; 125 x 150 x 33 1 x PS/2 plug	German 3.93.105.437/0100 US 3.93.105.437/0200 German 3.93.105.436/0100 US 3.93.105.436/0200
	USB Straight cable; 1373 x 154.0 x 24.25 Front panel 1 x USB plug	German 3.93.105.417/0100 US 3.93.105.417/0200
	version PS/2 Straight cable; 1373 x 154.0 x 24.25 1 x PS/2 plug	German 3.93.105.416/0100 US 3.93.105.416/0200

Type B4 Front Panel Version

Type B4 Features

• Provides entry of all alphanumerical characters and control codes

• Auto-repeat can be switched off

• N-key roll-over, can be set to 2-key roll-over

• Degree of protection: IP 40

Accessories:

• Adapter box for connecting 2 industrial keyboards to a PC: 3.60.100.195/0000, details see page 20

• Adapter cable, PS/2 - USB: 5.03.771.761/0000, details see page 22

'S,_,

Auto-repeat

In the default setting, the keyboard after a delay repeats a character as long as the finger keeps pressing the key.

78.03

5.00

18 Full-Travel Keyboards
