Technical DataB4B6-C/B8-C Contact systemGold/gold contactsSolid statemechanicalOperating force ≤ 0.9 N ≤ 0.7 NActuating travel4 mm4 mm Switching travel2

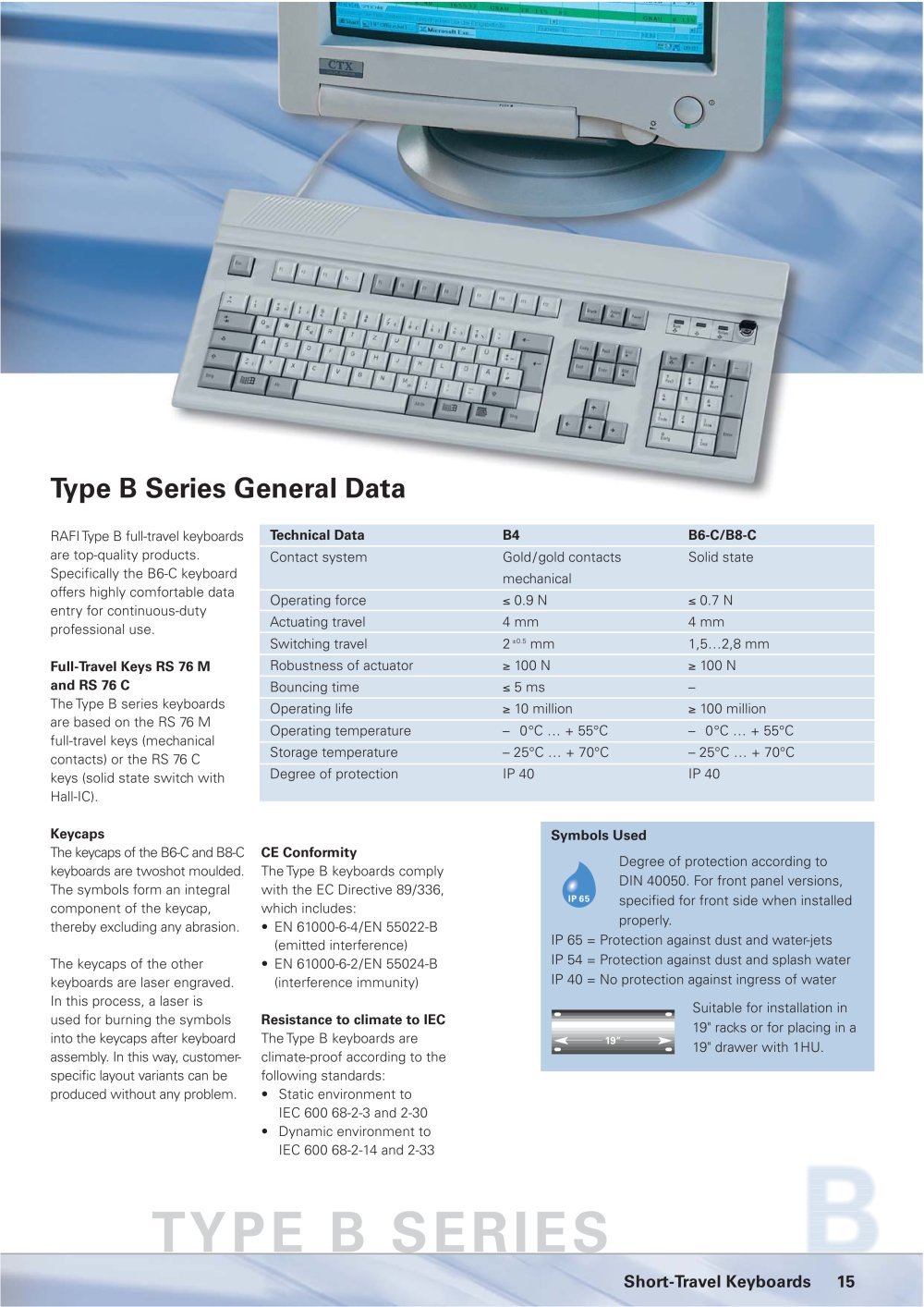

Type B Series General Data

Full-Travel Keys RS 76 M and RS 76 C The Type B series keyboardsare based on the RS 76 M full-travel keys (mechanicalcontacts) or the RS 76 C keys (solid state switch withHall-IC). Keycaps The keycaps of the B6-C and B8-C industrial keyboards are twoshot moulded. The symbols form an integral component of the keycap,thereby excluding any abrasion. The keycaps of the other keyboards are laser engraved.In this process, a laser is used for burning the symbolsinto the keycaps after keyboard assembly. In this way, customer-specific layout variants can be produced without any problem.
±0.5 mm1,5…2,8 mmRobustness of actuator ≥ 100 N ≥ 100 NBouncing time CE Conformity ≤ 5 ms–Operating life The Type B keyboards complywith the EC Directive 89/336,which includes:•EN 61000-6-4/EN 55022-B(emitted interference)•EN 61000-6-2/EN 55024-B(interference immunity) ≥ 10 million ≥ 100 millionOperating temperature– 0°C … + 55°C– 0°C … + 55°CStorage temperature– 25°C … + 70°C– 25°C … + 70°C Degree of protectionIP 40IP 40 RAFI Type B full-travel keyboardsare top-quality products. Specifically the B6-C keyboard offers highly comfortable data entry for continuous-duty professional use. Symbols Used Resistance to climate to IEC Degree of protection according to DIN 40050. For front panel versions, specified for front side when installedproperly.IP 65 = Protection against dust and water-jets IP 54 = Protection against dust and splash water IP 40 = No protection against ingress of waterSuitable for installation in19" racks or for placing in a 19" drawer with 1HU. The Type B keyboards are climate-proof according to thefollowing standards:•Static environment to IEC 600 68-2-3 and 2-30•Dynamic environment to IEC 600 68-2-14 and 2-33
IP65 19”

TYPE B SERIES

15Short-Travel Keyboards
