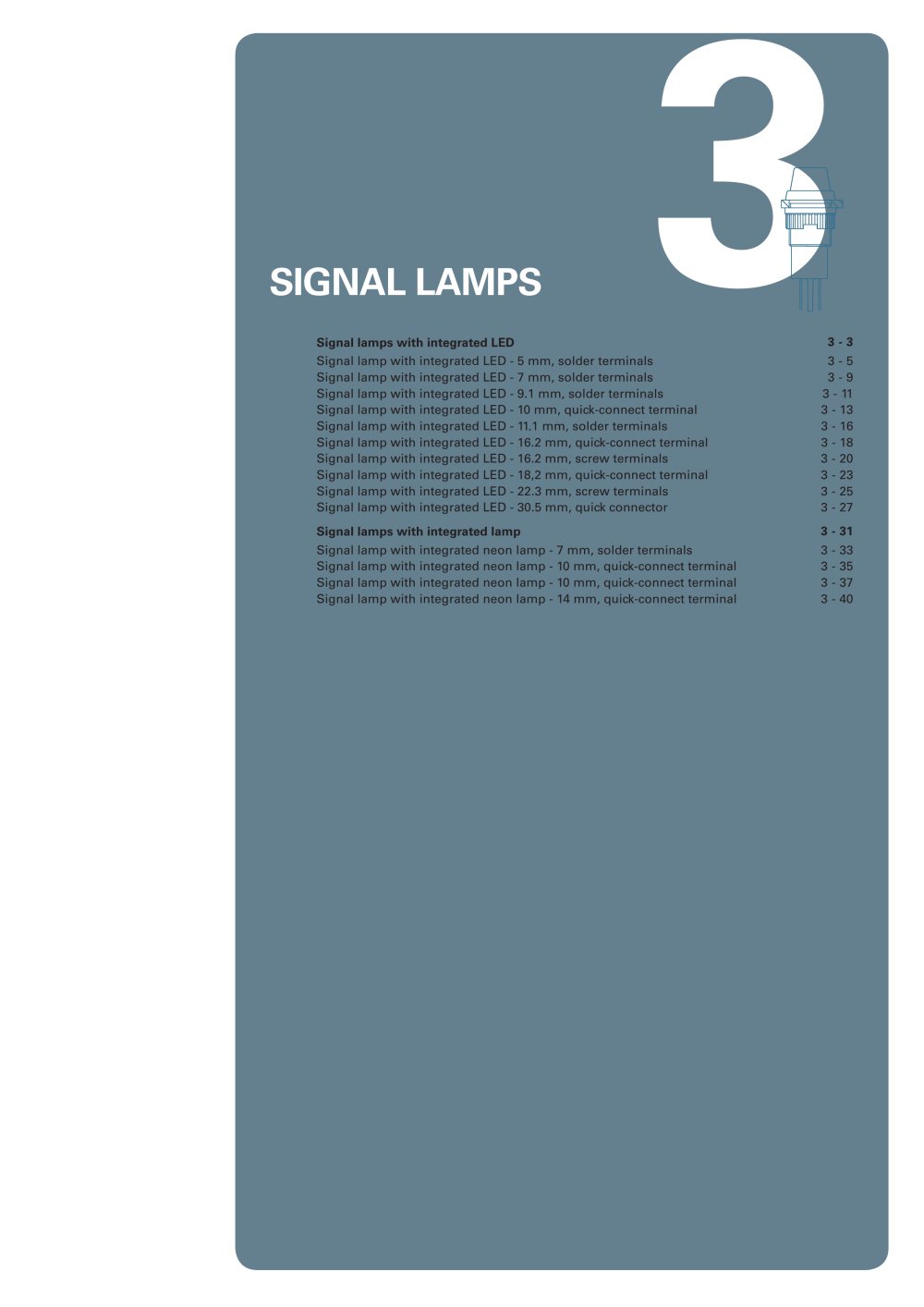

SIGNAL LAMPS Signal lamps with integrated LED Signal lamp with integrated LED - 5 mm, solder terminals Signal lamp with integrated LED - 7 mm, solder terminals Signal lamp with integrated LED - 9.1 mm, solder terminals Signal lamp with integrated LED - 10 mm, quick-connect terminal Signal lamp with integrated LED - 11.1 mm, solder terminals Signal lamp with integrated LED - 16.2 mm, quick-connect terminal Signal lamp with integrated LED - 16.2 mm, screw terminals Signal lamp with integrated LED - 18,2 mm, quick-connect terminal Signal lamp with integrated LED - 22.3 mm, screw terminals Signal lamp with integrated LED - 30.5 mm, quick connector Signal lamps with integrated lamp Signal lamp with integrated neon lamp - 7 mm, solder terminals Signal lamp with integrated neon lamp - 10 mm, quick-connect terminal Signal lamp with integrated neon lamp - 10 mm, quick-connect terminal Signal lamp with integrated neon lamp - 14 mm, quick-connect terminal

SIGNAL LAMPS GENERAL INFORMATION Signal Lamps with integral lamps/LED The soldered lamps/LED without base cannot be replaced. Standard mounting dimensions We recommend use of mounting hole diameters 16, 22 and 30 mm, as these comply with international standard recommendations and DIN standards. Signal Lamps with lamp socket An integral lamp socket allows replacement of lamps/LED of the appropriate type. Limit values The voltage specified as the limit value is the standard insulating voltage for the signal lamps. The permitted ambient temperatures are always specified in conjunction Filament operating...

SIGNAL LAMPS SIGNAL LAMPS WITH INTEGRATED LED 3 Signal lamps with integrated LED integr. LED Signal lamps with integral LED. The mm specification in the product name indicates the appropriate mounting hole diameter of the signal lamps. All products are RoHS compliant.

SIGNAL LAMPS SIGNAL LAMPS WITH INTEGRATED LED Signal lamps with integrated LED 5 mm 3 - 5 Signal lamp with integrated LED 5 mm, protruding LED 3 - 6 Signal lamp with integrated LED 5 mm, round protruding lens 3 - 6 Signal lamp with integrated LED 5 mm, round flush lens 3 - 7 Signal lamp with integrated LED 5 mm, triangular flush lens 3 - 7 Signal lamps with integrated LED 7.0 mm 3 - 9 Signal lamp with integrated LED 7.0 mm, round protruding lens 3 - 10 Signal lamps with integrated LED 9.1 mm 3 - 11 Signal lamp with integrated LED 9.1 mm, round flat lens 3-12 Signal lamp with integrated LED 9.1...

SIGNAL LAMPS SIGNAL LAMPS WITH INTEGRATED LED - 5 MM, SOLDER TERMINALS SIGNAL LAMPS WITH INTEGRATED LED 5 mm Technical Data £ General information Form of lens Color of lens Diameter of collar see order block see order block see order block Dimensions Length of collar Overall height Mounting depth Mounting hole see order block see order block see order block 5 mm Mechanical design Mounting Terminals Lamp socket Lamp pressing into hole solder terminals no see order block Electrical characteristics Operating voltage UB Integrated currency resistor Forward voltage UF at 25 °C Reverse voltage UR at...

SIGNAL LAMPS SIGNAL LAMPS WITH INTEGRATED LED - 5 MM, SOLDER TERMINALS Signal lamp with integrated LED 5 mm, protruding LED Technical data see page 3 - 5 Mounting hole Integrated currency resistor Operating voltage UB transparent yellow LED yellow yes transparent green Long terminal is anode. Signal lamp with integrated LED 5 mm, round protruding lens Technical data see page 3 - 5 Mounting hole Integrated currency Operating resistor voltage UB transparent yellow LED super bright yellow yes transparent green transparent yellow LED yellow Long terminal is anode.

SIGNAL LAMPS SIGNAL LAMPS WITH INTEGRATED LED - 5 MM, SOLDER TERMINALS Signal lamp with integrated LED 5 mm, round flush lens Technical data see page 3 - 5 Mounting hole Integrated currency Operating Forward current. Order no. transparent red LED super bright red yes transparent yellow LED yellow transparent yellow LED super bright yellow yes transparent green LED green Long terminal is anode. * Without series resistor, mounting depth = 18 mm Signal lamp with integrated LED 5 mm, triangular flush lens Technical data see page 3 - 5 Color of lens Lamp Integrated currency Operating Forward current....

SIGNAL LAMPS SIGNAL LAMPS WITH INTEGRATED LED - 5 MM, SOLDER TERMINALS – Table (continued) – Signal lamps with integrated LED - 5 mm, triangular flush lens Long terminal is anode. * Without series resistor, mounting depth = 18 mm

SIGNAL LAMPS SIGNAL LAMPS WITH INTEGRATED LED - 7 MM, SOLDER TERMINALS SIGNAL LAMPS WITH INTEGRATED LED 7.0 mm Technical Data £ General information Form of lens Color of lens Diameter of collar round protruding see order block 8.5 mm Dimensions Overall height Mounting depth Mounting hole Mechanical design Mounting Terminals Lamp socket Lamp pressing into hole solder terminals no see order block Electrical characteristics Operating voltage UB Forward voltage UF at 25 °C Reverse current IR at 25 °C Forward current, IF Reverse current IR at 25 °C Power dissipation Ptot at 25 °C Light intensity 24...

SIGNAL LAMPS SIGNAL LAMPS WITH INTEGRATED LED - 7 MM, SOLDER TERMINALS Signal lamp with integrated LED 7.0 mm, round protruding lens Technical data see page 3 - 9 Mounting hole -» Color of lens Lamp Operating voltage UB Forward current. IF Light intensity Order no. transparent yellow LED yellow 24- 28 V max. 20 mA 200 mcd 1.69.511.103/1400 transparent green LED green 24- 28 V max. 20 mA 1000 mcd 1.69.511.104/1500 transparent blue LED blue 24- 28 V max. 20 mA 300 mcd 1.69.511.105/1600 transparent colorless LED white 24- 28 V max. 20 mA 400 mcd 1.69.511.101/1000

SIGNAL LAMPS SIGNAL LAMPS WITH INTEGRATED LED - 9.1 MM, SOLDER TERMINALS SIGNAL LAMPS WITH INTEGRATED LED 9.1 mm Technical Data £ General information Form of lens Color of lens Diameter of collar round protruding see order block 11 mm Dimensions Overall height Mounting depth Mounting hole Mechanical design Mounting Terminals Lamp socket Lamp ring nut solder terminals T 4.6 LED Electrical characteristics Operating voltage UB Input current ICC type. Other specifications Degree of protection from front side Weight ROHS compliant REACH compliant Mounting hole Accessories Signal lamps with integrated...
