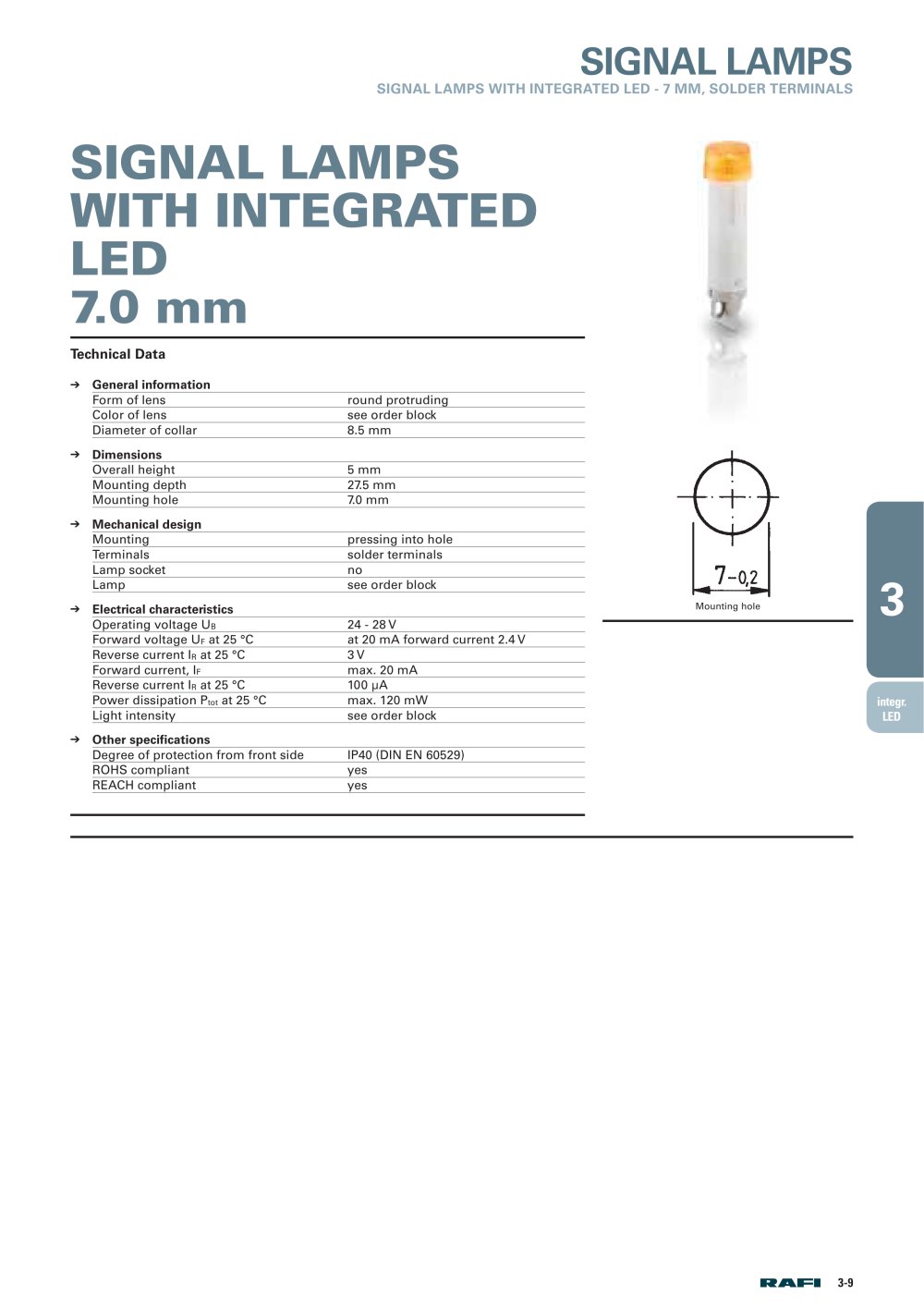

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:13.00pt "Arial", sans-serif; } .font3 { font:28.00pt "Arial", sans-serif; } Signal lamps with integrated LED 3 Integrated currency resistor Operating voltage UB Forward current, IF at 25°C Lamp Colour of lens Order no. no according to series resistor 5 - 28 V max. 20 mA LED red transparent red 1.69.508.931/1301 no according to series resistor 5 - 28 V max. 20 mA LED green transparent green 1.69.508.937/1503 no according to series resistor 5 - 28 V max. 20 mA LED yellow transparent yellow 1.69.508.943/1402 yes 24 - 28 V 8 - 12 mA LED red transparent red 1.69.508.934/1301 yes 24 - 28 V 8 - 12 mA LED green transparent green 1.69.508.940/1503 yes 24 - 28 V 8 - 12 mA LED yellow transparent yellow 1.69.508.946/1402 yes 24 - 28 V 8 - 12 mA LED super bright red transparent red 1.69.508.935/1300 yes 24 - 28 V 8 - 12 mA LED super bright yellow transparent yellow 1.69.508.947/1400 Technical data see page 3 - 6 Integr. Led Long terminal is anode. | * Without series resistor, mounting depth = 18 mm. 3 - 10 Stock items are marked by bold printed order numbers. Signal lamps
