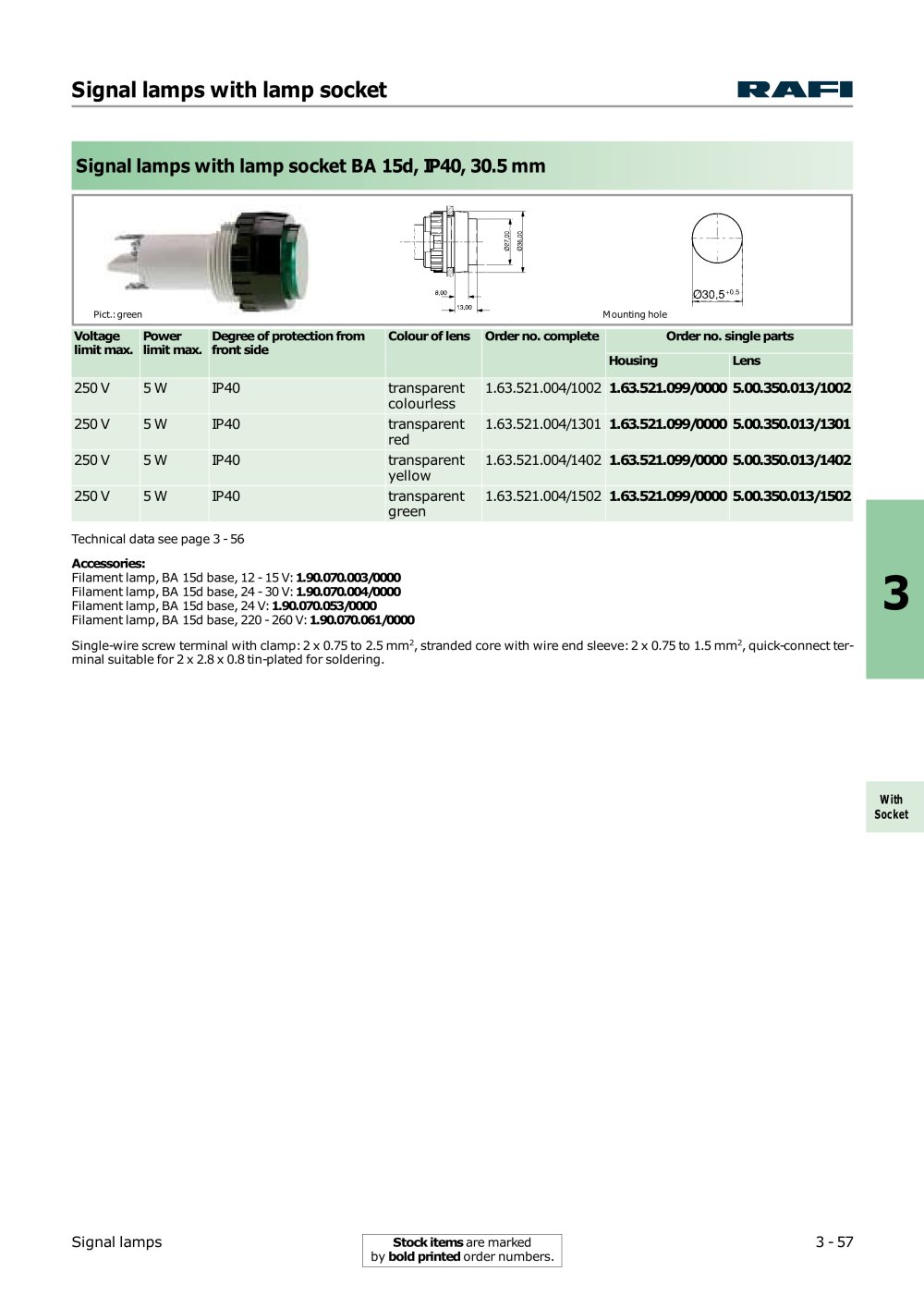

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:11.00pt "Arial", sans-serif; } .font5 { font:13.00pt "Arial", sans-serif; } .font6 { font:30.00pt "Arial", sans-serif; } Signal lamps with lamp socket S gnal lamps with lamp socket BA 15d, P40 30.5 mm Pict.: green Mounting hole Voltage limit max. Power limit max. Degree of protection from front side Colour of lens Order no. complete Order no. single parts Housing Lens 250 V 5 W IP40 transparent colourless 1.63.521.004/1002 1.63.521.099/0000 5.00.350.013/1002 250 V 5 W IP40 transparent red 1.63.521.004/1301 1.63.521.099/0000 5.00.350.013/1301 250 V 5 W IP40 transparent yellow 1.63.521.004/1402 1.63.521.099/0000 5.00.350.013/1402 250 V 5 W IP40 transparent green 1.63.521.004/1502 1.63.521.099/0000 5.00.350.013/1502 Technical data see page 3 - 56 Accessories: Filament lamp, BA 15d base, 12 - 15 V: 1.90.070.003/0000 Filament lamp, BA 15d base, 24 - 30 V: 1.90.070.004/0000 Filament lamp, BA 15d base, 24 V: 1.90.070.053/0000 Filament lamp, BA 15d base, 220 - 260 V: 1.90.070.061/0000 Single-wire screw terminal with clamp: 2 x 0.75 to 2.5 mm2, stranded core with wire end sleeve: 2 x 0.75 to 1.5 mm2, quick-connect terminal suitable for 2 x 2.8 x 0.8 tin-plated for soldering. 3 With Socket Signal lamps Stock items are marked by bold printed order numbers. 3 - 57
