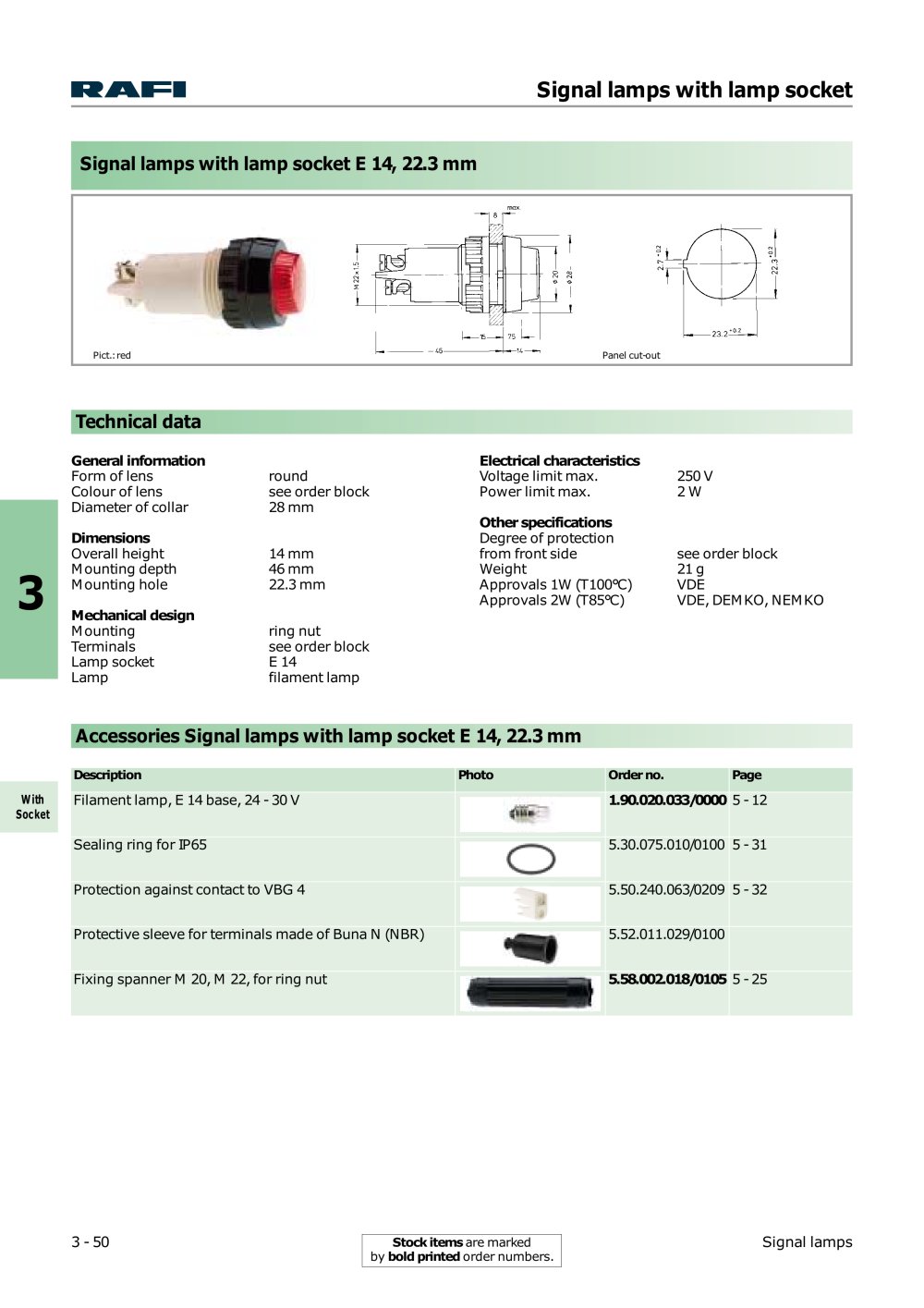

Signal lamps with lamp socket
Signal lamps with lamp socket E 14, 22.3 mm
Electrical characteristics Voltage limit max.250 V
Power limit max.2 W Other specifications Degree of protectionfrom front sidesee order blockWeight21 g
Approvals 1W (T100°C)VDE
Approvals 2W (T85°C)VDE, DEMKO, NEMKO
Panel cut-outPict.: red Technical data
General information Form of lensround
Colour of lenssee order block
Diameter of collar28 mm Dimensions Overall height14 mm
Mounting depth46 mm
Mounting hole22.3 mm Mechanical design Mountingring nut
Terminalssee order block
Lamp socketE 14Lampfilament lamp
3
Accessories Signal lamps with lamp socket E 14, 22.3 mm
Description Photo Order no. Page WithSocket Filament lamp, E 14 base, 24 - 30 V 1.90.020.033/0000 5 - 12 Sealing ring for IP65 5.30.075.010/0100 5 - 31 Protection against contact to VBG 4 5.50.240.063/0209 5 - 32 Protective sleeve for terminals made of Buna N (NBR) 5.52.011.029/0100 Fixing spanner M 20, M 22, for ring nut 5.58.002.018/0105 5 - 25
3 - 50Signal lamps
Stock items are markedby bold printed order numbers.
