Signal lamps with lamp socket

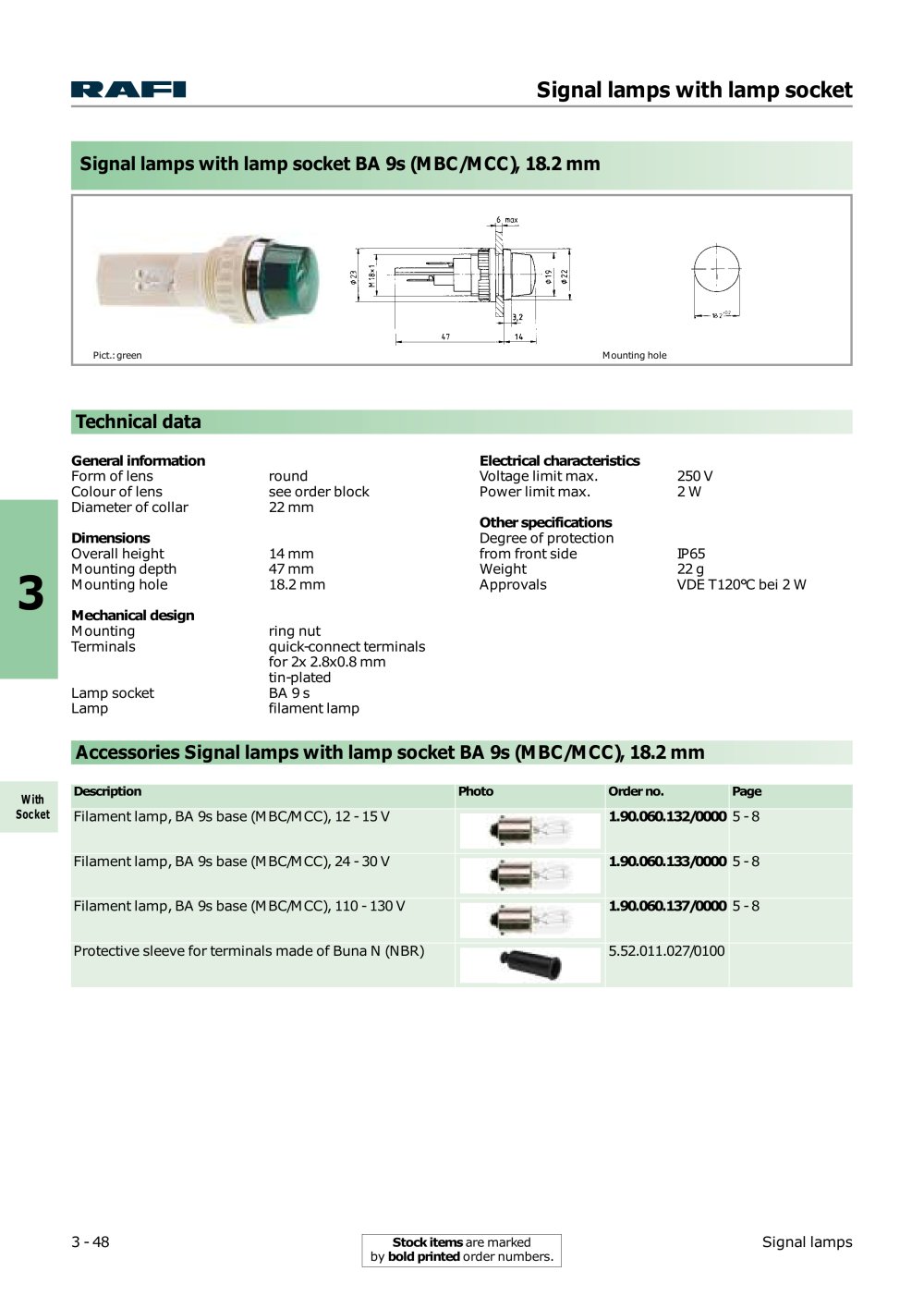

Signal lamps with lamp socket BA 9s (MBC/MCC), 18.2 mm
Electrical characteristics Voltage limit max.250 V
Power limit max.2 W Other specifications Degree of protectionfrom front sideIP65Weight22 g
ApprovalsVDE T120°C bei 2 W
Mounting holePict.: green Technical data
General information Form of lensround
Colour of lenssee order block
Diameter of collar22 mm Dimensions Overall height14 mm
Mounting depth47 mm
Mounting hole18.2 mm Mechanical design Mountingring nut
Terminalsquick-connect terminalsfor 2x 2.8x0.8 mm tin-platedLamp socketBA 9 s
Lampfilament lamp
3
Accessories Signal lamps with lamp socket BA 9s (MBC/MCC), 18.2 mm
WithSocket Description Photo Order no. Page Filament lamp, BA 9s base (MBC/MCC), 12 - 15 V 1.90.060.132/0000 5 - 8 Filament lamp, BA 9s base (MBC/MCC), 24 - 30 V 1.90.060.133/0000 5 - 8 Filament lamp, BA 9s base (MBC/MCC), 110 - 130 V 1.90.060.137/0000 5 - 8 Protective sleeve for terminals made of Buna N (NBR) 5.52.011.027/0100
3 - 48Signal lamps
Stock items are markedby bold printed order numbers.
