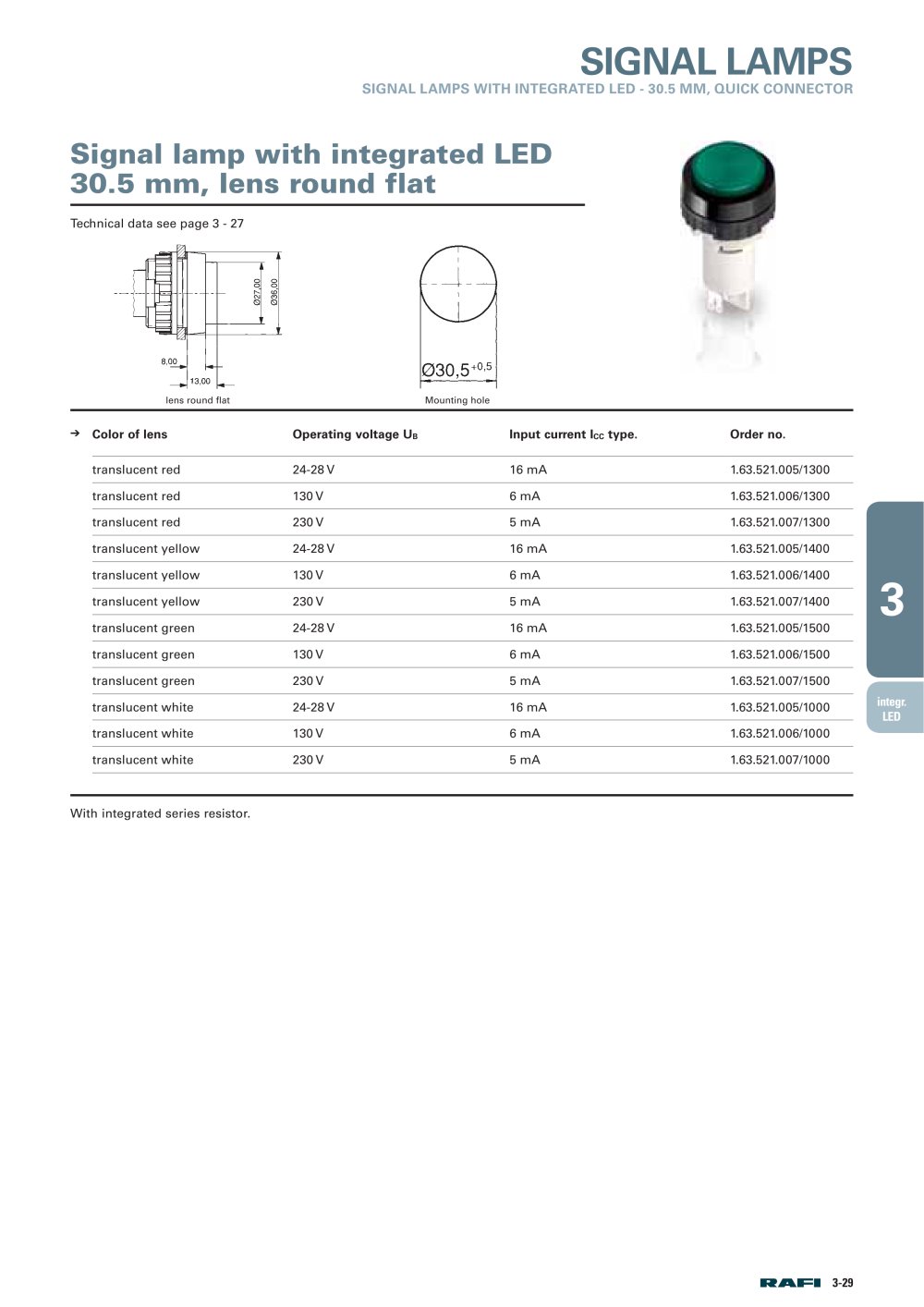

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } .font4 { font:13.00pt "Arial", sans-serif; } .font5 { font:30.00pt "Arial", sans-serif; } Signal lamps with integrated lamp 3 Technical data General information Electrical characteristics Form of lens see order block Voltage limit max. see order block Colour of lens see order block Power limit max. 1.2 W Diameter of collar see order block Other specifications Dimensions Operating life see order block Length of collar see order block Degree of protection Width of collar see order block from front side IP40 Overall height 4 mm Weight 5 g Mounting depth see order block Approvals at 1.5 mA Mounting hole 14 mm (T 85°C) VDE, SEV, FEMKO, DEMKO Mechanical design Mounting pressing into hole Terminals see order block Lamp socket no Lamp see order block Integr. Lamp Voltage limit max. Power limit max. Lamp Terminals Operating Colour of life lens Order no. 28 V 1.2 W filament lamp quick connector 2.8 x 0.8 tin-plated 15000 h transparent colourless 1.69.523.003/1002 28 V 1.2 W filament lamp quick connector 2.8 x 0.8 tin-plated 15000 h transparent red 1.69.523.003/1301 28 V 1.2 W filament lamp quick connector 2.8 x 0.8 tin-plated 15000 h transparent yellow 1.69.523.003/1402 28 V 1.2 W filament lamp quick connector 2.8 x 0.8 tin-plated 15000 h transparent green 1.69.523.003/1502 28 V 1.2 W filament lamp quick connector 2.8 x 0.8 tin-plated 15000 h transparent blue 1.69.523.003/1601 Technical data see page 3 - 32 3 - 32 Stock items are marked by bold printed order numbers. Signal lamps
