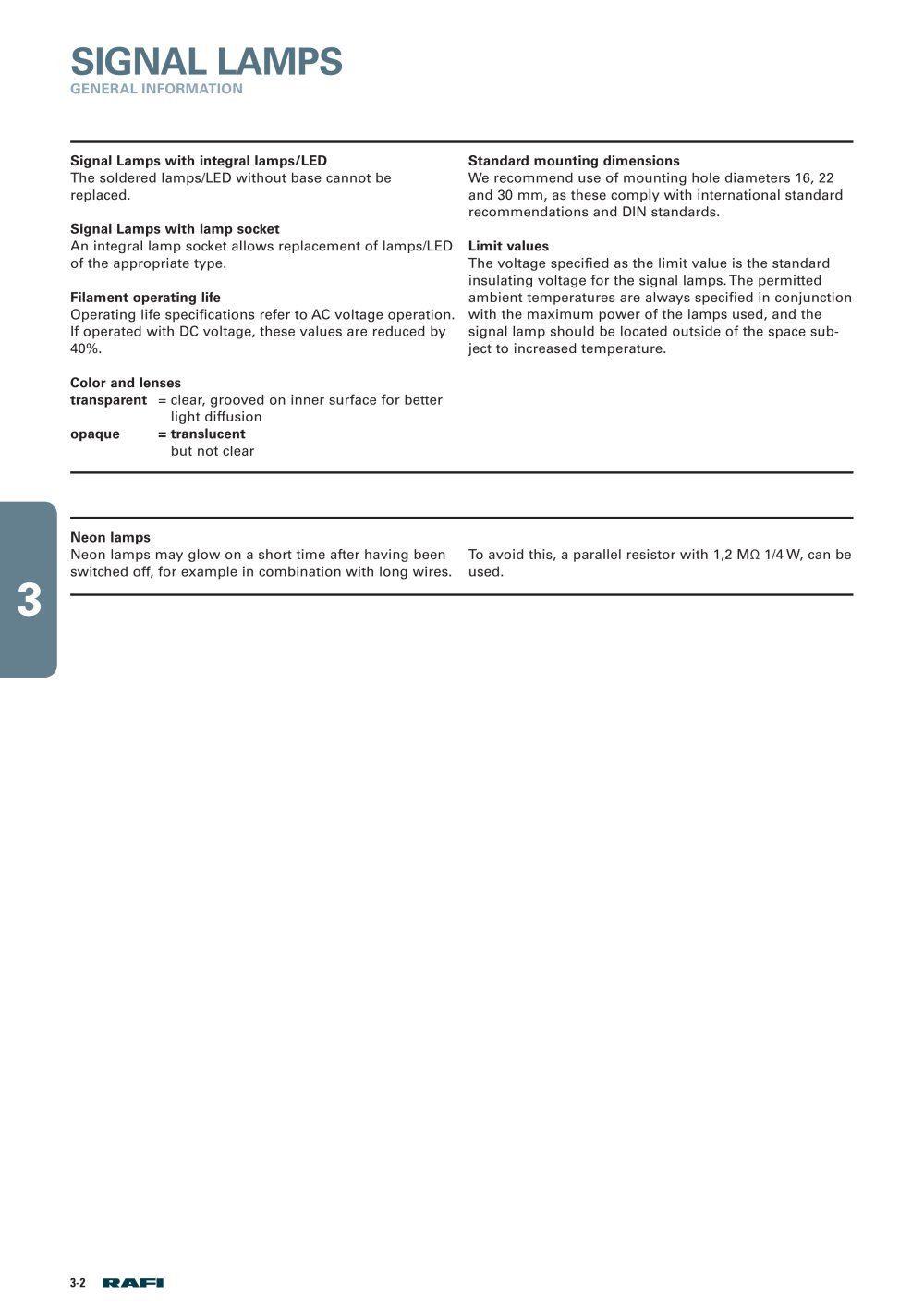

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:11.00pt "Arial", sans-serif; } .font2 { font:13.00pt "Arial", sans-serif; } .font3 { font:19.00pt "Arial", sans-serif; } .font4 { font:28.00pt "Arial", sans-serif; } Signal lamps General information Signal Lamps with intégral lamps/LEDs The soldered lamps/LEDs without base cannot be repla-ced. Signal Lamps with lamp socket An integral lamp socket allows replacement of lamps/LEDs of the appropriate type. Filament operating life Operating life specifications refer to AC voltage operati­on. If operated with DC voltage, these values are reduced by 40%. Color and lenses transparent = clear, grooved on inner surface for better light diffusion opaque = translucent but not clear Standard mounting dimensions We recommend use of mounting hole diameters 16, 22 and 30 mm, as these comply with international standard recommendations and DIN standards. Limit values The voltage specified as the limit value is the standard insulating voltage for the signal lamps. The permitted ambient temperatures are always specified in conjunction with the maximum power of the lamps used, and the signal lamp should be located outside of the space subject to increased temperature. 3 CE-Conformity The CE-Conformity of the products of Chapter "Signal Lamps" can be divided into the following groups -corresponding to the Low-Voltage Directives 72/23/EWG: All products with voltage > 50 V For these components the Low-Voltage Directive 73/23/ EWG aplies. All products with voltage < 50 V No directive applies for these components. EMC-Law The components of this catalogue are within the meaning of the law concerning the electromagnetic conformity (= EMC-Law) "basic components as, for ex., switches, signal lamps or like" and, therefore, do not fall within the scope of the EMC-Law. Declaration of conformity Declarations of conformity for all concerned products are available and can be delivered upon request. Please always state the exact order reference of the desi-red product. Marking The marking will be corresponding to the Low-Voltage Directive 73/23/EWG resp. the Directive "CE-Marking 93/68/EWG" either on the packing or on the product itself. 3 - 2 Signal lamps
