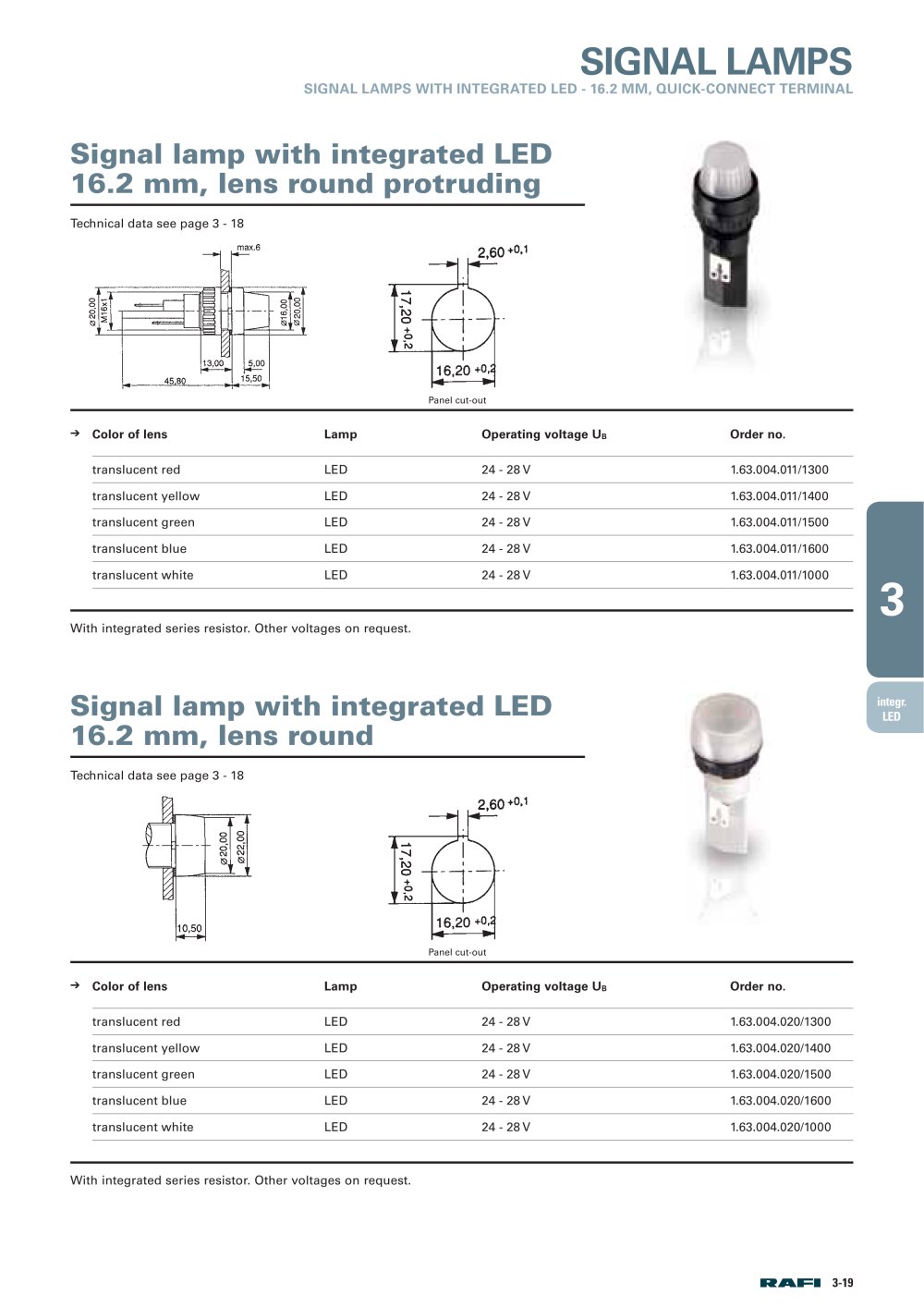

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } .font4 { font:13.00pt "Arial", sans-serif; } .font5 { font:30.00pt "Arial", sans-serif; } Signal lamps with integrated lamp 3 Technical data General information Form of lens Colour of lens Diameter of collar Dimensions Length of collar Width of collar Overall height Mounting depth Mounting hole Mechanical design Mounting Terminals Lamp socket Lamp see order block see order block see order block Electrical characteristics Voltage limit max. 24 V Power limit max. 0.45 W Other specifications Operating life 10000 h Degree of protection from front side IP40 Weight 0.3 g see order block see order block 1 mm 18 mm 5 mm pressing into hole solder terminals no filament lamp Integr. Lamp Voltage limit max. Power limit max. Lamp Operating life Colour of lens Order no. 24 V 24 V 24 V 24 V 24 V 0.45 W 0.45 W 0.45 W 0.45 W 0.45 W filament lamp filament lamp filament lamp filament lamp filament lamp 10000 h 10000 h 10000 h 10000 h 10000 h transparent colourless 1.69.508.113/1002 transparent red 1.69.508.113/1301 transparent yellow 1.69.508.113/1402 transparent green 1.69.508.113/1502 transparent blue 1.69.508.113/1601 Technical data see page 3 - 22 3 - 22 Stock items are marked by bold printed order numbers. Signal lamps
