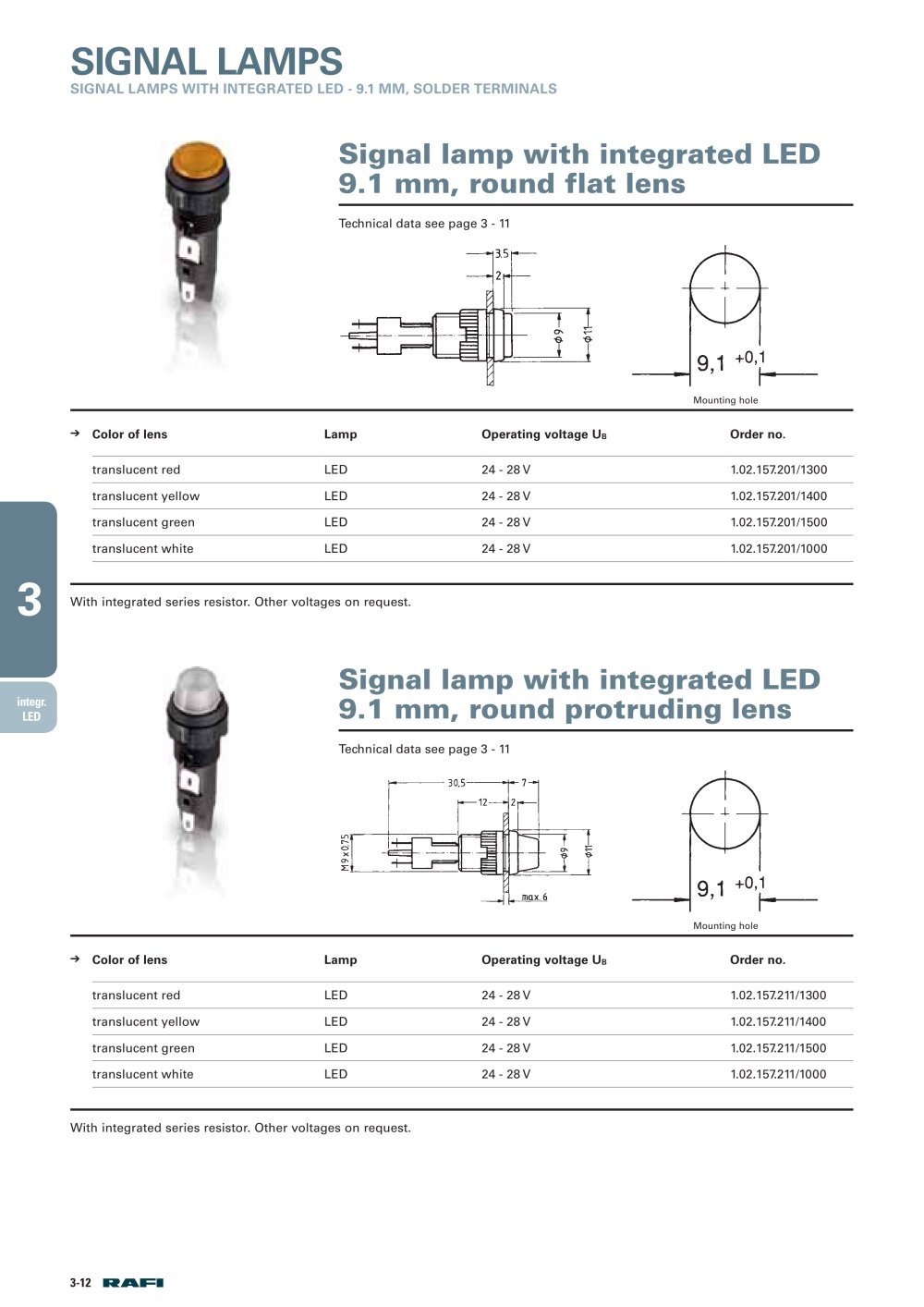

Signal lamps with integrated LED
Signal lamps with integrated LED, 9.1 mm
Electrical characteristics Operating voltageU
Mounting holecolourlessPict.: red Technical data
General information Form of lensround protruding
Colour of lenssee order block
Diameter of collar11 mm Dimensions Overall heightsee order block
Mounting depth30.5 mm
Mounting hole9.1 mm Mechanical design
B 24 - 28 VForward voltage
U Mountingring nut
Terminalssolder terminals
Lamp socketno
Lampsee order block
F at 25°Cat 20 mA forward current2.4 VReverse voltage
U at 25°C3 VReverse current
I
3
R R at 25°C100 µAPower dissipation
P
tot at 25°Cmax. 120 mWLight intensity at 20 mAsee order block Other specifications
Integr.LED Degree of protection
from front sideIP40
Weight1 g
Accessories Signal lamps with integrated LED, 9.1 mm
Description Photo Order no. Page Fixing spanner M 9, M 10 5.58.002.025/0105 5 - 25
3 - 14Signal lamps
