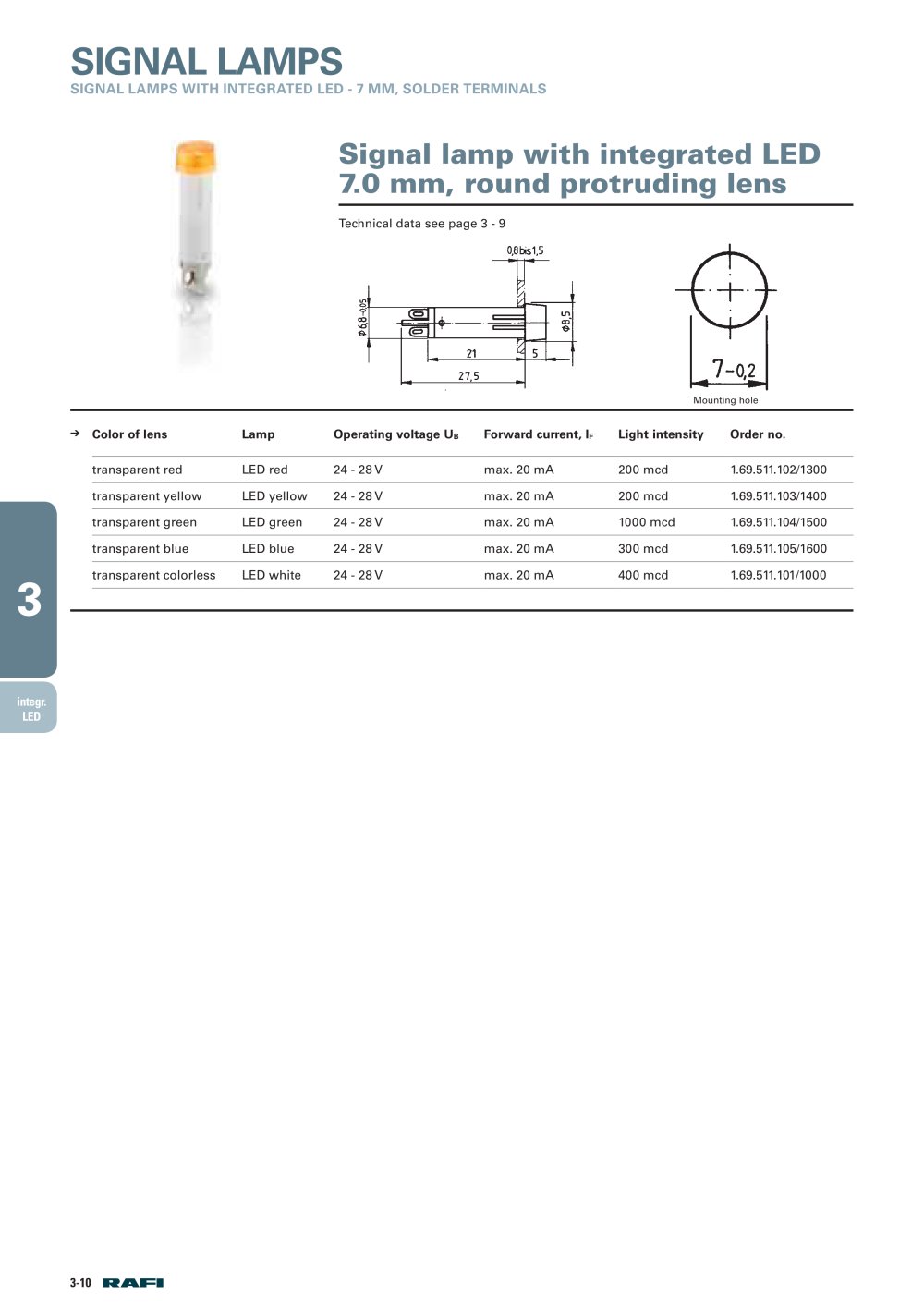

Signal lamps with integrated LED

Signal lamps with integrated LED, 7.0 mm

Electrical characteristics Operating voltageU
Mounting holePict.: yellow

Technical data

General information Form of lensround protruding Colour of lenssee order block Diameter of collar8.5 mm Dimensions Overall height5 mm Mounting depth27.5 mm Mounting hole7.0 mm Mechanical design
B 24 - 28 VForward voltage U Mountingpressing into hole Terminalssolder terminals Lamp socketno Lampsee order block
F at 25°Cat 20 mA forward current2.4 VReverse current I at 25°C3 VForward current, I

3

R F max. 20 mAReverse current I
R at 25°C100 µAPower dissipation P
tot at 25°Cmax. 120 mWLight intensitysee order block
Integr.LED Other specifications Degree of protection from front sideIP40
