RAFIX 16
Accessories RAFIX 16 pushbutton
Description Photo Order no. Page Fixing spanner for hexagon nut 5.58.002.034/0000 2 - 75

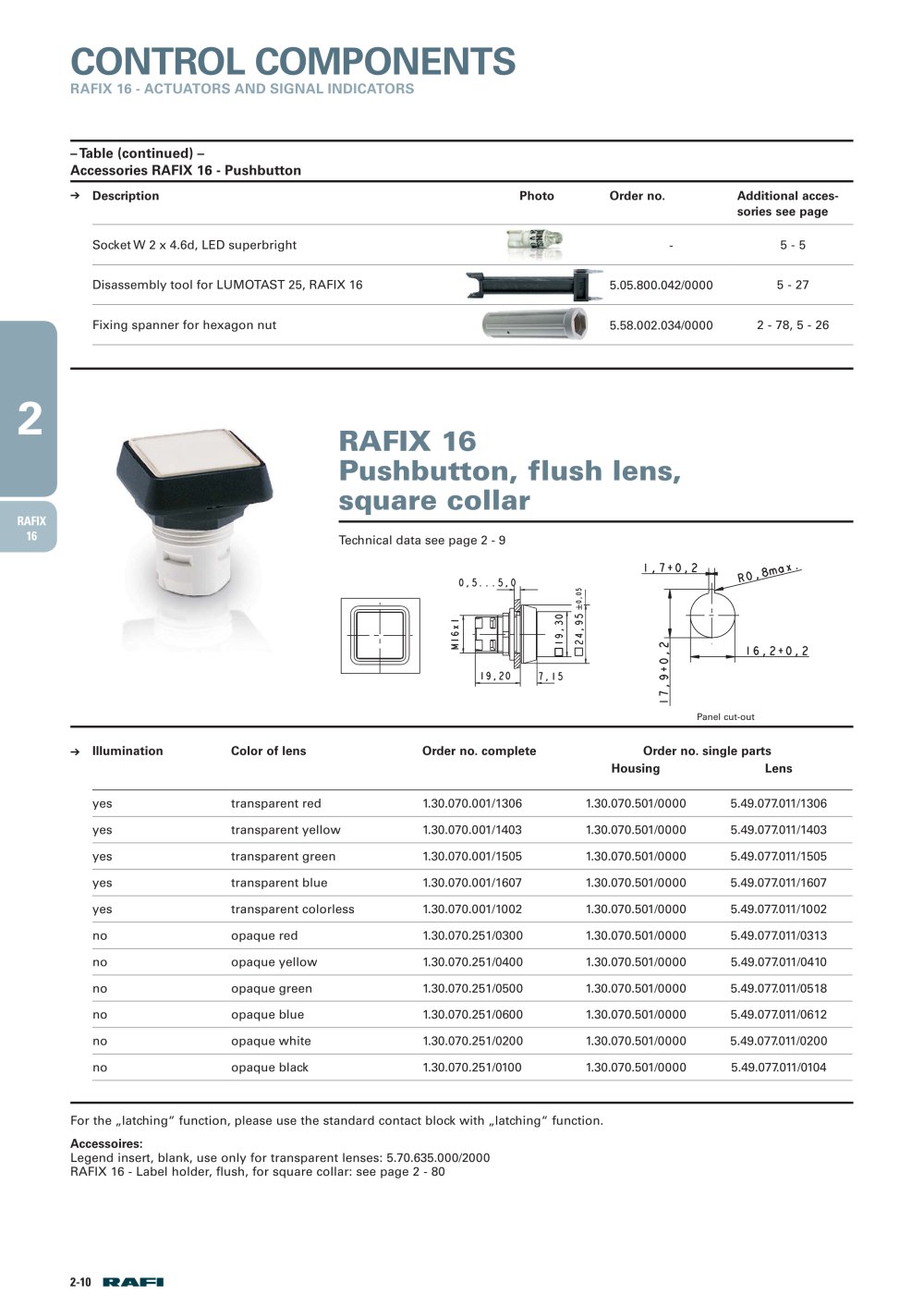

RAFIX 16 pushbutton, flush lens, square collar
2
Pict.: whitepanel cut-out Illuminability Colour of lens Order no. complete Order no. single parts Housing Lens RAFIX16 yes transparent colourless 1.30.070.001/1002 1.30.070.501/0000 5.49.077.011/1002 yes transparent red 1.30.070.001/1306 1.30.070.501/0000 5.49.077.011/1306 yes transparent yellow 1.30.070.001/1403 1.30.070.501/0000 5.49.077.011/1403 yes transparent green 1.30.070.001/1505 1.30.070.501/0000 5.49.077.011/1505 yes transparent blue 1.30.070.001/1607 1.30.070.501/0000 5.49.077.011/1607 no opaque black 1.30.070.251/0100 1.30.070.751/0000 5.05.510.640/0100 no opaque white 1.30.070.251/0200 1.30.070.751/0000 5.05.510.640/0200 no opaque red 1.30.070.251/0300 1.30.070.751/0000 5.05.510.640/0300 no opaque yellow 1.30.070.251/0400 1.30.070.751/0000 5.05.510.640/0400 no opaque green 1.30.070.251/0500 1.30.070.751/0000 5.05.510.640/0500 no opaque blue 1.30.070.251/0600 1.30.070.751/0000 5.05.510.640/0600
Technical data see page 2 - 8 For the „latching“ function, please use the standard contact block with „latching“ function.Legend insert, blank, use only for transparent lenses: 5.70.635.000/2000 Accessories: Control components2 - 9
Stock items are markedby bold printed order numbers.
