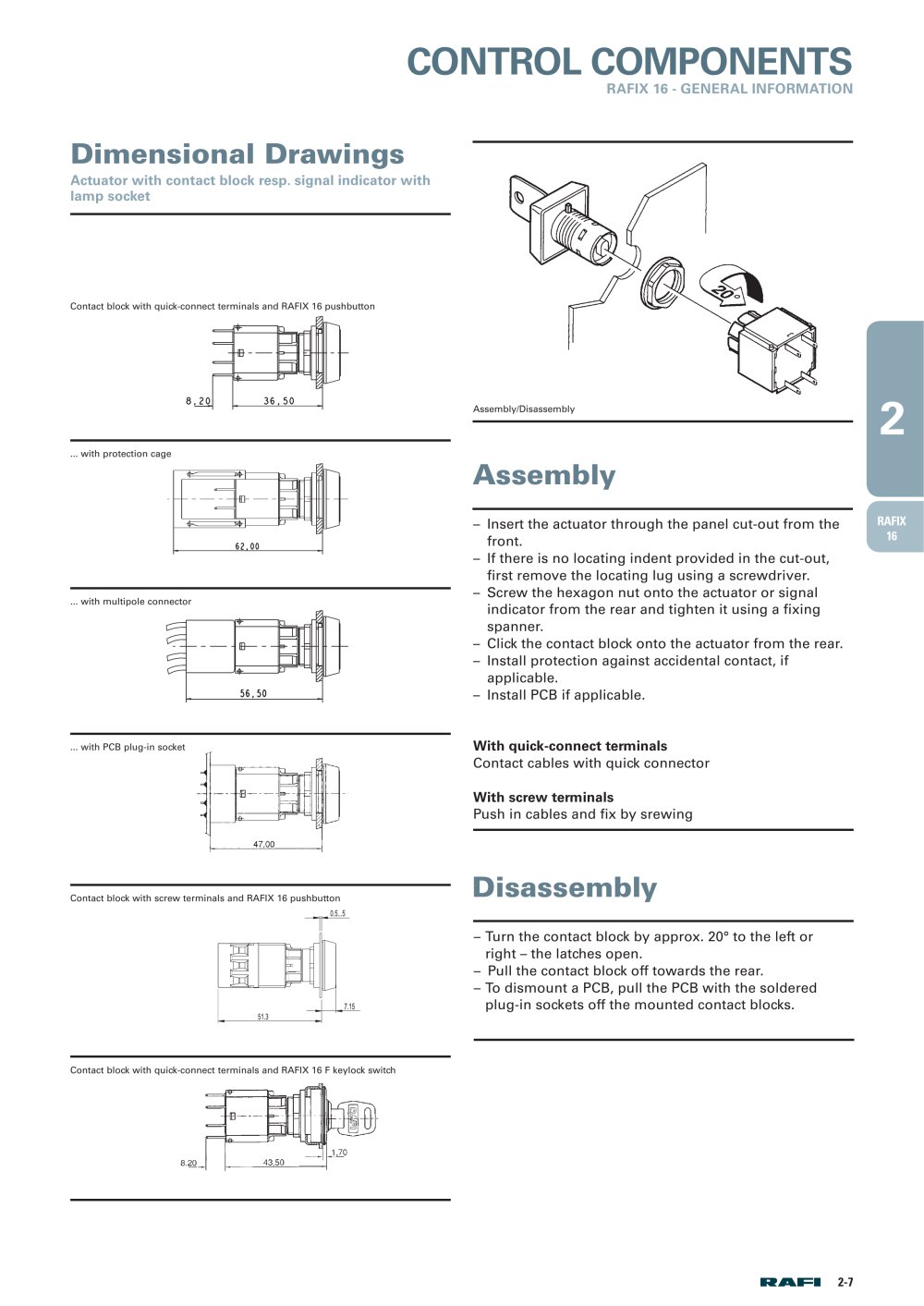

2 - 6 Control Components 2 RAFIX 16 Combination actuator and contact block All actuators All contact blocks with silver contacts 1.3007–.– – – 1.2012–.– – – 6(4) A/250 V AC  – Emergency stop Contact blocks with silver contacts 1.30074.– – – 1.20123.– – – 6(4) A/250 V AC   Emergency stop, Universal contact blocks with gold contacts 1.30074.– – – 1.20123.– – – 250 mA/42 V AC/DC –  Signal indicator lamp socket 1.62124.– – – 1.71212.– – – 1,2 W/60 V AC/DC  – Order no. Limit EU-Directive NSR 73/23 Ma. Dir. 89/392 Assembly – Insert the actuator through the panel cut-out from the front. If there is no locating indent provided in the cut-out, first remove the locating lug using a screwdriver. – Screw the hexagon nut onto the actuator or signal indicator from the rear and tighten it using a fixing spanner. – Slide the contact block onto the actuator from the rear with an audible click. – Install protection against accidental contact, if applicable. – Connect quick-connect terminals. – Alternatively, connect crimped female quick-connect terminals to multipole connector and plug it onto the contact block. – Alternatively, conntact the plug-in socket soldered onto the PCB. Disassembly – Turn the contact block by approx. 20° to the left or right – the latches open. – Pull the contact block off towards the rear (commercially available flat nose pliers recommended). To dismount a PCB, pull the PCB with the soldered plug-in sockets off the mounted contact blocks. CE-Conformity RAFIX® 16 Assembly/Disassembly RAFIX 16
