RAFIX 16

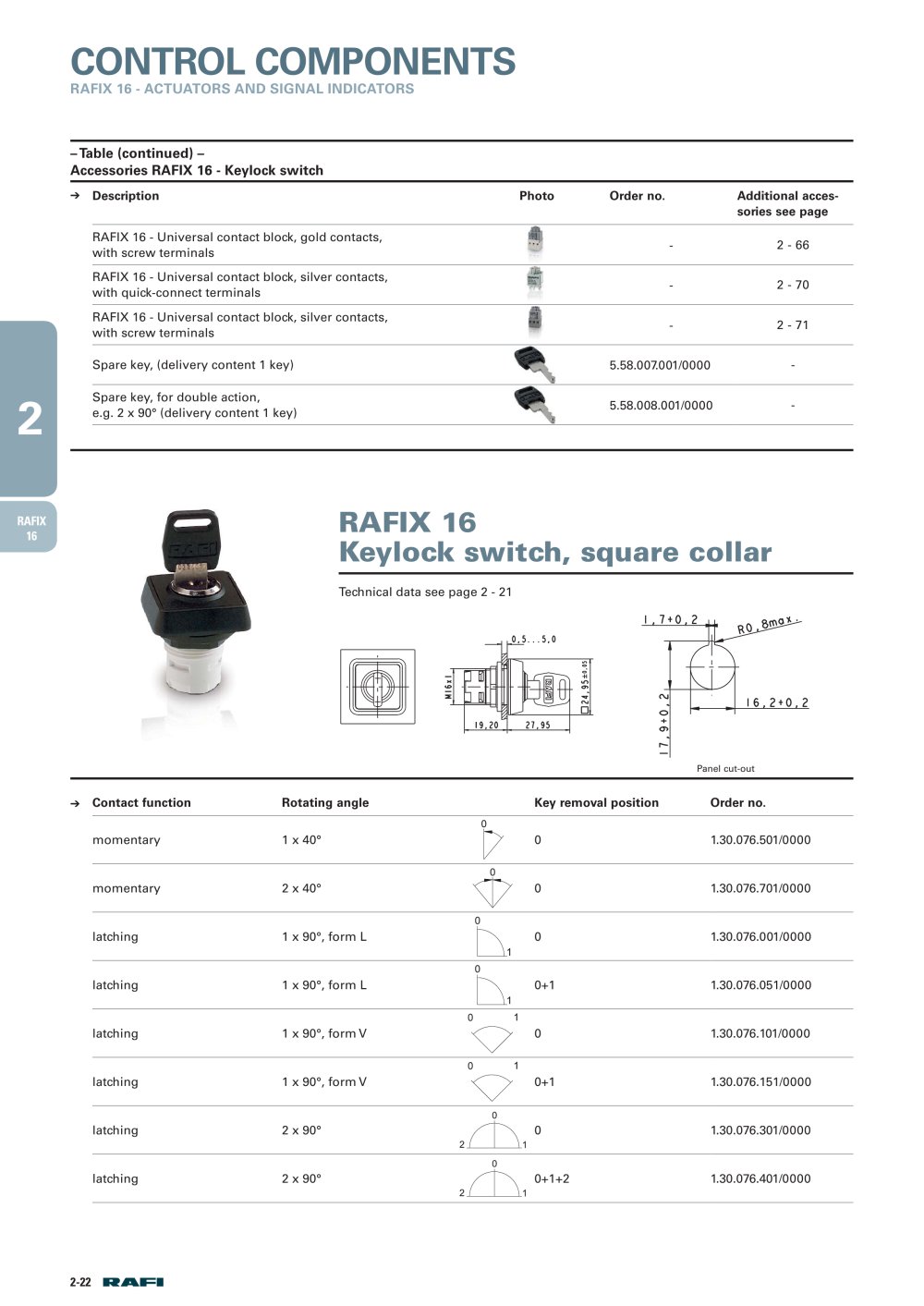

RAFIX 16 keylock switch MICROM EC

OJ...5.0

16.2*0.2

Panel cut-out


Technical data
General information		Mechanical characteristics
Form of collar	see order block	Torque max.	1.3 Nm
Dimensions		Electrical characteristics
Length of collar	see order block	Protection class	II
Diameter of collar	see order block
Key grid	25 x 25 mm	Other specifications
Width of collar	see order block	ESD-strength lock /
Overall height	27.95 mm	contact	15 kV
Mounting depth	44.7 mm	ESD strength key/ front
Mounting hole	16.2 mm	panel	8 kV
		Operating life	65000
Mechanical design		Degree of protection
M ounting	ring nut	from front side	IP65
Contact function	see order block	Ambient temp. operating
Contact arrangement	according to contact block	min.	-25 °C
Illuminability	no	Ambient temp. operating
Lock	Micromec	without lamp max.	+70 °C
Wafers	5	Storage temperature min.	-40 °C
Lock type	001	Storage temperature max.	+85 °C
Number of locking		Resistance to constant
positions	500	environment	according to
M ain key	yes		IEC 600 68-2-3 and 2-30
Symmetric key	no	Resistance at variable
Rotating angle	see order block	environment	according to
Key removal position	see order block		IEC 600 68-2-14 and 2-33
Group key	yes
General key	yes

RAFIX 16

Accessories RAFIX 16 keylock switch M ICROM EC


Description	Photo	Order no.	Page
RAFIX 16 universal contact block, 1 NC + 1 NO, momentary, silver contacts, without lamp socket		1.20.123.021/0000	2 - 65
RAFIX 16 universal contact block, 1 NC + 1 NO, momentary, gold contacts, without lamp socket	•	1.20.123.031/0000	2 - 61
Label holder, flush, for square collar		5.07.620.004/0000	2 - 76

Fixing spanner for hexagon nut

5.58.002.034/0000 2 - 75

2 - 22 Stock items are marked Control components

by bold printed order numbers.
