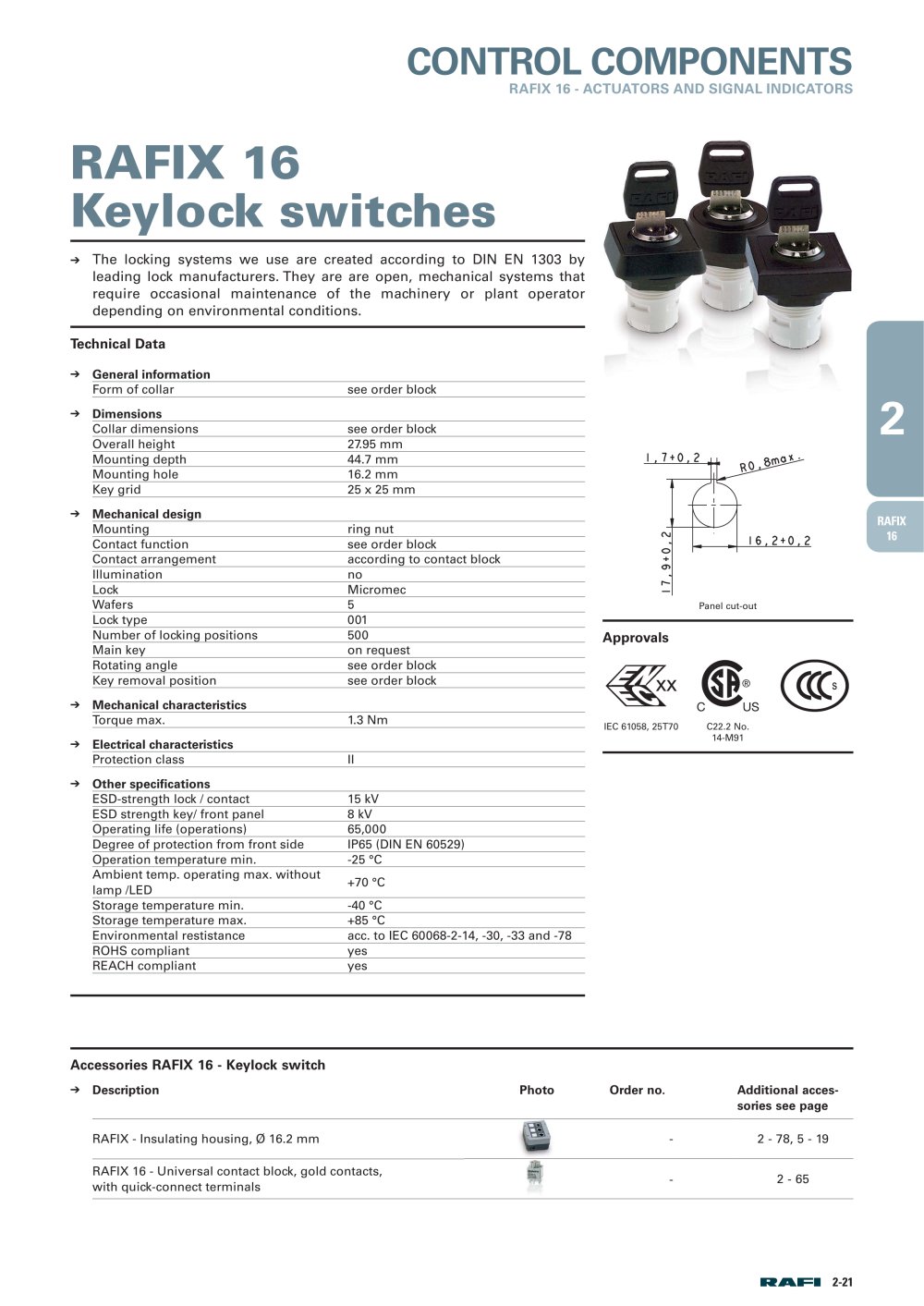

RAFIX 16

RAFIX 16 selector switch, square collar, alignable without gaps

Pict.: handle opaque whitePanel cut-out Illuminability Contact function Rotating angle Marking of handle Order no. complete yes momentary 1 x 40° translucent white 1.30.073.591/2000 yes momentary 2 x 40° translucent white 1.30.073.691/2000 yes latching L, 1 x 90° translucent white 1.30.073.541/2000

2

yes latching V, 1 x 90° translucent white 1.30.073.641/2000
RAFIX16 yes latching 2 x 60° translucent white 1.30.073.741/2000 yes latching 1 x 90°andmomentary 1 x 40° latching 90°/momentary 40°
translucent white 1.30.073.791/2000
2 no momentary 1 x 40° opaque white 1.30.073.590/0200 no momentary 2 x 40° opaque white 1.30.073.690/0200 no latching L, 1 x 90° opaque white 1.30.073.540/0200 no latching V, 1 x 90° opaque white 1.30.073.640/0200 no latching 2 x 60° opaque white 1.30.073.740/0200 no latching 1 x 90°and momentary 1 x 40° latching 90°/momentary 40°
opaque white 1.30.073.790/0200
2 Technical data see page 2 - 18 Only use contact blocks with "momentary" contact function.For versions with clockwise and counterclockwise rotation, use universal contact blocks only! Other handle marking colours available on request.

Control components2 - 21

Stock items are markedby bold printed order numbers.
