Mechanical characteristics Torque max.1.3 Nm

RAFIX 16

Other specifications Operating life30000 Degree of protectionfrom front sideIP65Ambient temp. operating min.-25 °C Ambient temp. operating without lamp max.+70 °C Ambient temp. operating with lamp max.+55 °C Storage temperature min.-40 °C Storage temperature max.+85 °C Resistance to constant environmentaccording to IEC 600 68-2-3 and 2-30Resistance at variable environmentaccording to IEC 600 68-2-14 and 2-33

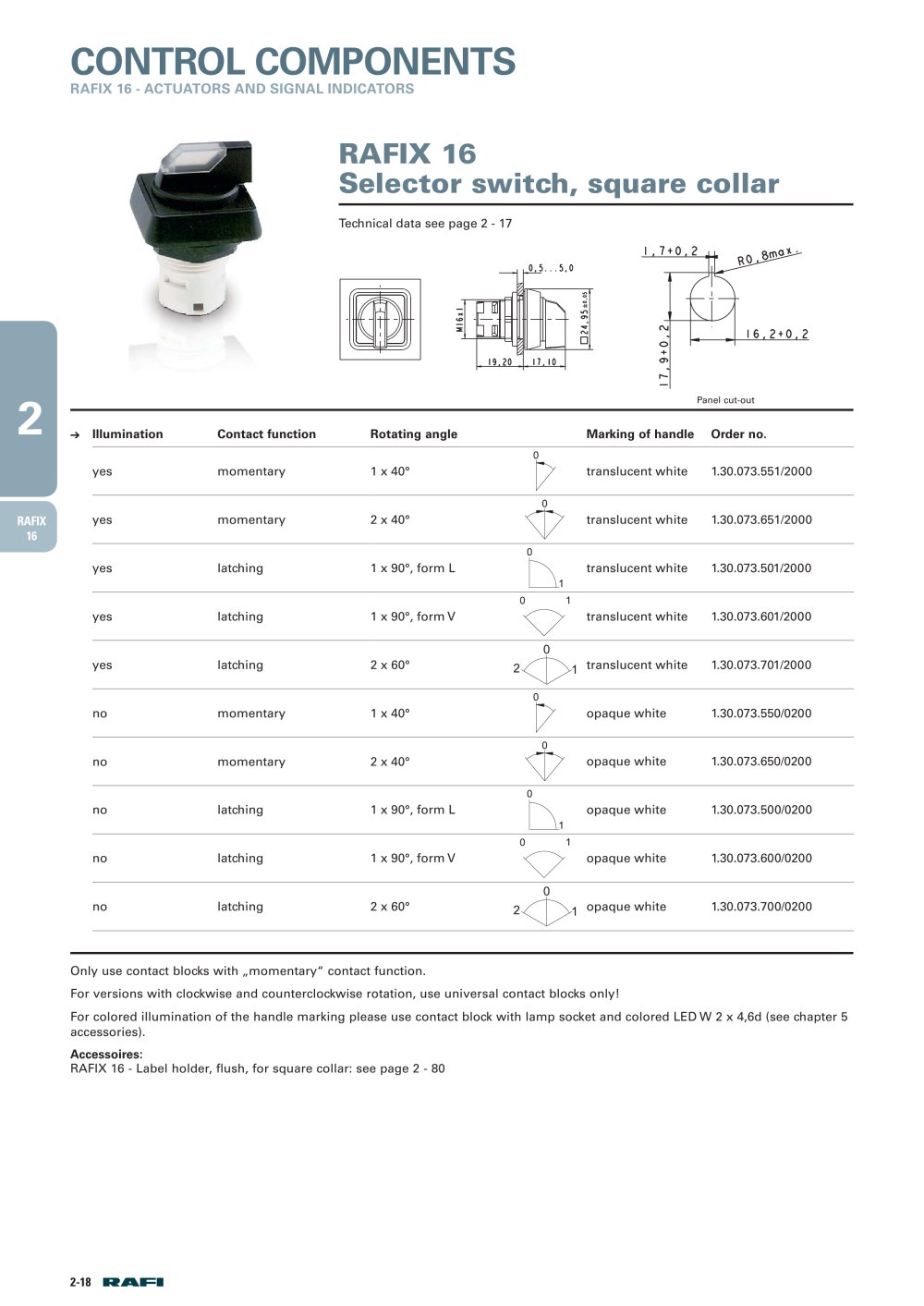

RAFIX 16 selector switch

Panel cut-outPict.: Handle marking opaque white

2

Mechanical design

Technical data

Mountingring nut Contact functionsee order block Contact arrangementaccording to contact block Illuminabilitysee order block Rotating anglesee order block General information Form of lenshandle Marking of handlesee order block Form of collarsee order block Dimensions Length of collarsee order block Diameter of collarsee order block Key grid25 x 25 mm Width of collarsee order block Overall height17.1 mm Mounting depth44.7 mm Mounting hole16.2 mm
RAFIX16

Accessories RAFIX 16 selector switch

Description Photo Order no. Page RAFIX 16 universal contact block, 1 NC + 1 NO, momentary, silver contacts, with lamp socket 1.20.123.001/0000 2 - 65 RAFIX 16 universal contact block, 1 NC + 1 NO, momentary, gold contacts, with lamp socket 1.20.123.011/0000 2 - 61 Label holder, flush, for square collar 5.07.620.004/0000 2 - 76 Fixing spanner for hexagon nut 5.58.002.034/0000 2 - 75
For suitable LEDs, filament lamps and other contact blocks, refer to the chapter „RAFIX 16 contact blocks“; for additional accessories,refer to the chapter „RAFIX 16 special accessories“.
