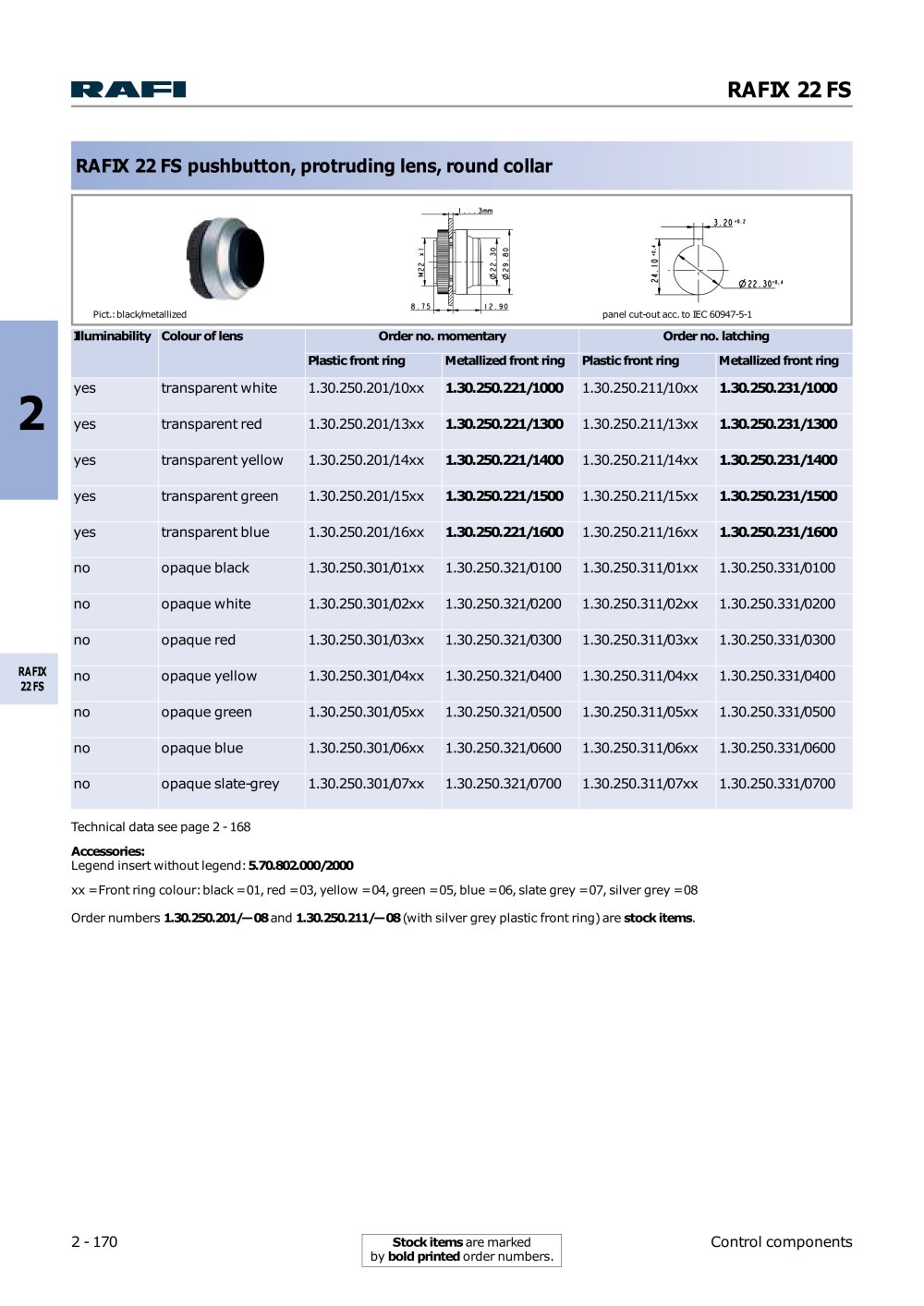

Stock items are marked by bold printed order numbers. RAFIX 22 FS 2 - 170 Control components 2 RAFIX 22 FS RAFIX 22 FS pushbutton, protruding lens, round collar Pict.: black/metallized panel cut-out acc. to IEC 60947-5-1 Illuminability Colour of lens Order no. momentary Plastic front ring Metallized front ring Order no. latching Plastic front ring Metallized front ring yes transparent white 1.30.250.201/10xx 1.30.250.221/1000 1.30.250.211/10xx 1.30.250.231/1000 yes transparent red 1.30.250.201/13xx 1.30.250.221/1300 1.30.250.211/13xx 1.30.250.231/1300 yes transparent yellow 1.30.250.201/14xx 1.30.250.221/1400 1.30.250.211/14xx 1.30.250.231/1400 yes transparent green 1.30.250.201/15xx 1.30.250.221/1500 1.30.250.211/15xx 1.30.250.231/1500 yes transparent blue 1.30.250.201/16xx 1.30.250.221/1600 1.30.250.211/16xx 1.30.250.231/1600 no opaque black 1.30.250.301/01xx 1.30.250.321/0100 1.30.250.311/01xx 1.30.250.331/0100 no opaque white 1.30.250.301/02xx 1.30.250.321/0200 1.30.250.311/02xx 1.30.250.331/0200 no opaque red 1.30.250.301/03xx 1.30.250.321/0300 1.30.250.311/03xx 1.30.250.331/0300 no opaque yellow 1.30.250.301/04xx 1.30.250.321/0400 1.30.250.311/04xx 1.30.250.331/0400 no opaque green 1.30.250.301/05xx 1.30.250.321/0500 1.30.250.311/05xx 1.30.250.331/0500 no opaque blue 1.30.250.301/06xx 1.30.250.321/0600 1.30.250.311/06xx 1.30.250.331/0600 no opaque slate-grey 1.30.250.301/07xx 1.30.250.321/0700 1.30.250.311/07xx 1.30.250.331/0700 Technical data see page 2 - 168 xx = Front ring colour: black = 01, red = 03, yellow = 04, green = 05, blue = 06, slate grey = 07, silver grey = 08 Order numbers 1.30.250.201/—08 and 1.30.250.211/—08 (with silver grey plastic front ring) are stock items. Accessories: Legend insert without legend: 5.70.802.000/2000
