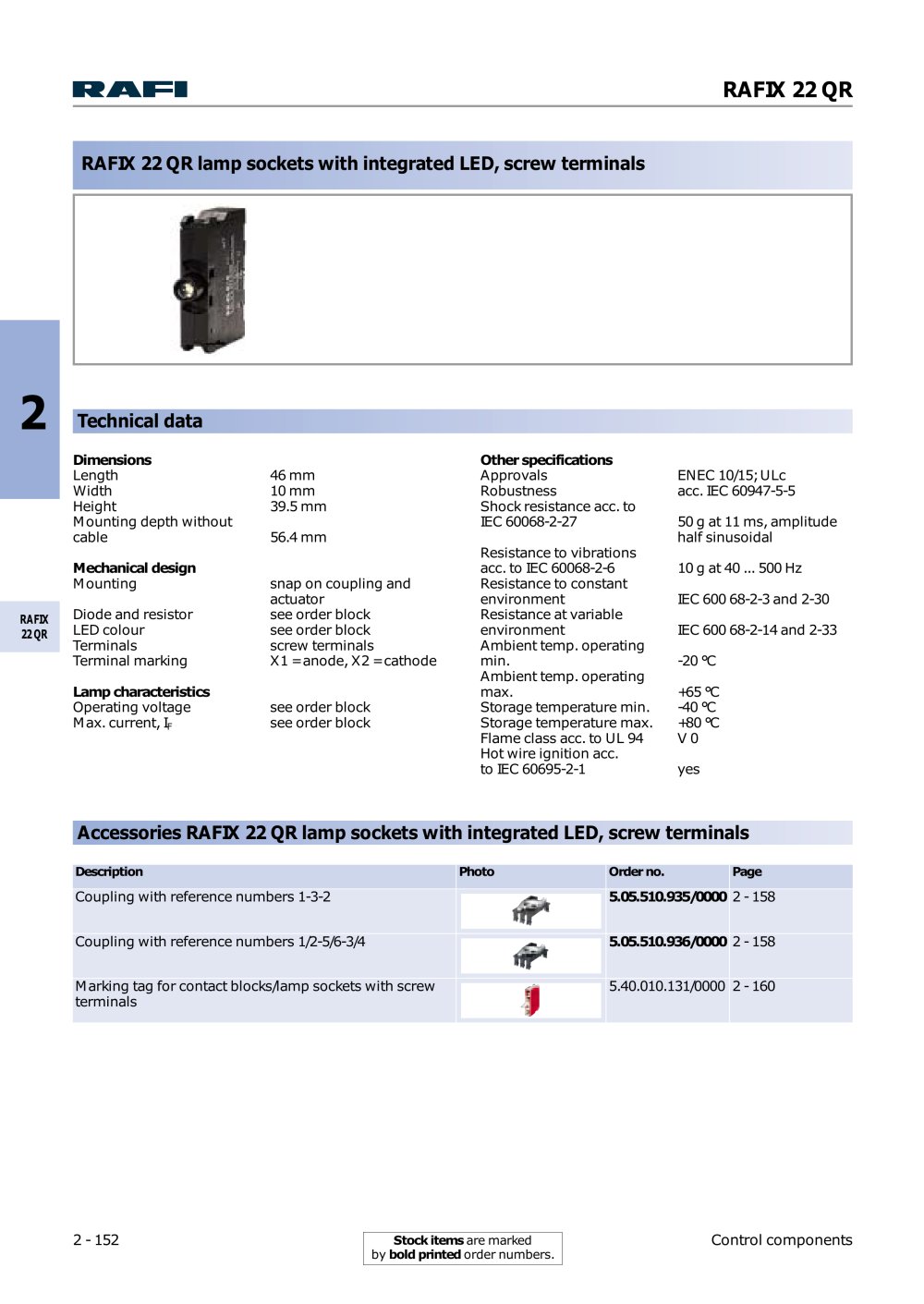

RAFIX 22 QR

RAFIX 22 QR lamp sockets with integrated LED, screw terminals

2

Technical data

Dimensions Other specifications Length46 mm Width 10 mm Height39.5 mmMounting depth withoutcable56.4 mm ApprovalsENEC 10/15; ULc Robustnessacc. IEC 60947-5-5Shock resistance acc. toIEC 60068-2-2750 g at 11 ms, amplitudehalf sinusoidalResistance to vibrations acc. to IEC 60068-2-610 g at 40 ... 500 Hz Resistance to constant environmentIEC 600 68-2-3 and 2-30 Resistance at variable environmentIEC 600 68-2-14 and 2-33 Ambient temp. operatingmin.-20 °CAmbient temp. operating max.+65 °C Storage temperature min.-40 °C Storage temperature max.+80 °C Flame class acc. to UL 94V 0 Hot wire ignition acc. to IEC 60695-2-1yes Mechanical design Mountingsnap on coupling andactuatorDiode and resistorsee order block LED coloursee order block Terminalsscrew terminals Terminal markingX1 = anode, X2 = cathode Lamp characteristics Operating voltagesee order block Max. current, I
RAFIX22 QR F see order block

Accessories RAFIX 22 QR lamp sockets with integrated LED, screw terminals

Description Photo Order no. Page Coupling with reference numbers 1-3-2 5.05.510.935/0000 2 - 158 Coupling with reference numbers 1/2-5/6-3/4 5.05.510.936/0000 2 - 158 Marking tag for contact blocks/lamp sockets with screw terminals 5.40.010.131/0000 2 - 160

2 - 152Control components

Stock items are markedby bold printed order numbers.
