RAFIX 22 QR

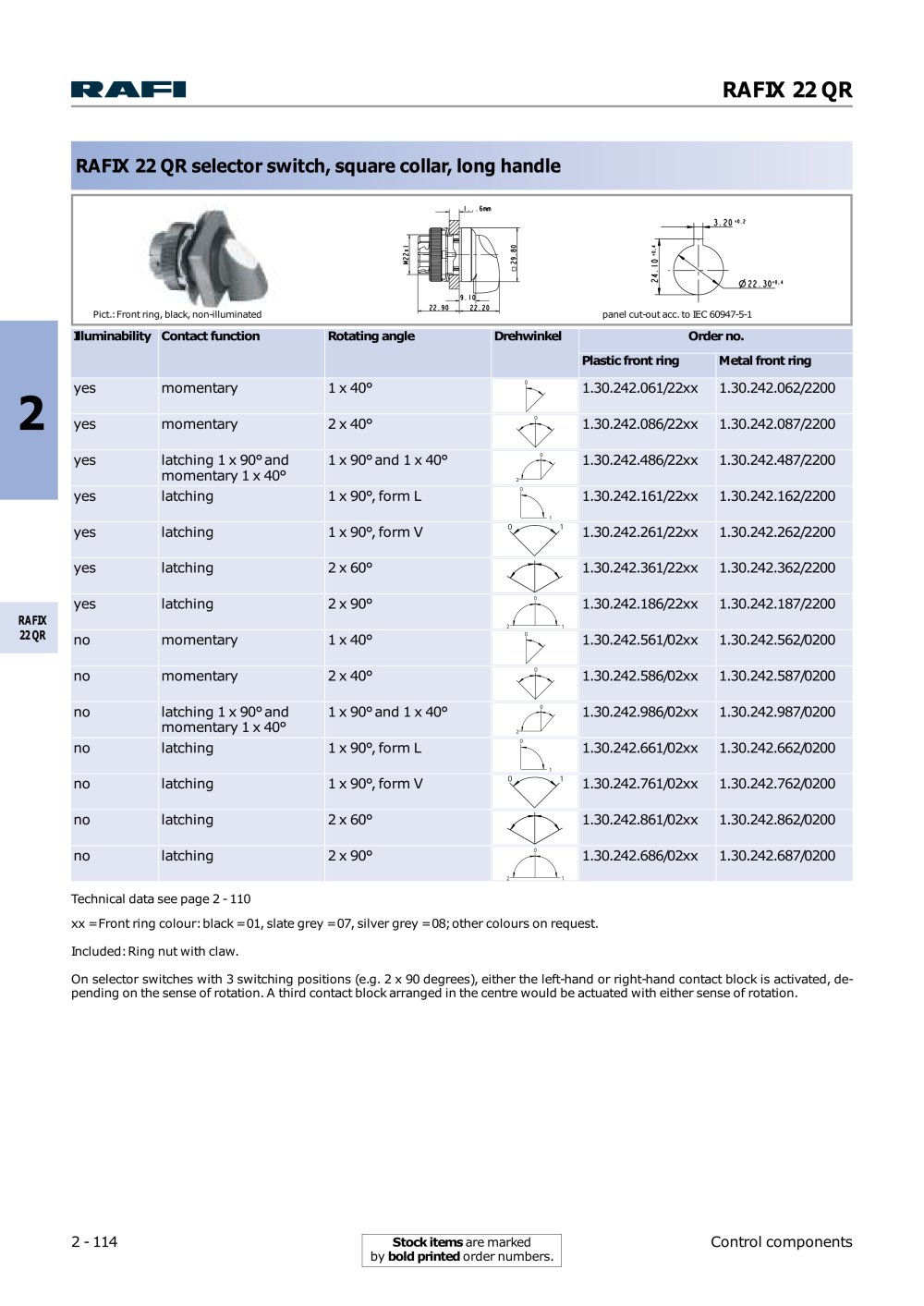

RAFIX 22 QR selector switch, square collar, long handle

Pict.: Front ring, black, non-illuminatedpanel cut-out acc. to IEC 60947-5-1 Illuminability Contact function Rotating angle Drehwinkel Order no. Plastic front ring Metal front ring yes momentary 1 x 40° 1 + 1S 1.30.242.061/22xx 1.30.242.062/2200

2

yes momentary 2 x 40° 1 + 1S 1.30.242.086/22xx 1.30.242.087/2200 yes latching 1 x 90°and momentary 1 x 40° 1 x 90°and 1 x 40° 1 + 1S
1.30.242.486/22xx 1.30.242.487/2200
2 yes latching 1 x 90°, form L 1 + 1S 1.30.242.161/22xx 1.30.242.162/2200 yes latching 1 x 90°, form V 1 + 1S 1.30.242.261/22xx 1.30.242.262/2200 yes latching 2 x 60° 1 + 1S 1.30.242.361/22xx 1.30.242.362/2200 yes latching 2 x 90° 1 + 1S 1.30.242.186/22xx 1.30.242.187/2200
RAFIX22 QR no momentary 1 x 40° 1 + 1S 1.30.242.561/02xx 1.30.242.562/0200 no momentary 2 x 40° 1 + 1S 1.30.242.586/02xx 1.30.242.587/0200 no latching 1 x 90°and momentary 1 x 40° 1 x 90°and 1 x 40° 1 + 1S
1.30.242.986/02xx 1.30.242.987/0200
2 no latching 1 x 90°, form L 1 + 1S 1.30.242.661/02xx 1.30.242.662/0200 no latching 1 x 90°, form V 1 + 1S 1.30.242.761/02xx 1.30.242.762/0200 no latching 2 x 60° 1 + 1S 1.30.242.861/02xx 1.30.242.862/0200 no latching 2 x 90° 1 + 1S 1.30.242.686/02xx 1.30.242.687/0200
Technical data see page 2 - 110 xx = Front ring colour: black = 01, slate grey = 07, silver grey = 08; other colours on request.Included: Ring nut with claw. On selector switches with 3 switching positions (e.g. 2 x 90 degrees), either the left-hand or right-hand contact block is activated, de-pending on the sense of rotation. A third contact block arranged in the centre would be actuated with either sense of rotation.

2 - 114Control components

Stock items are markedby bold printed order numbers.
