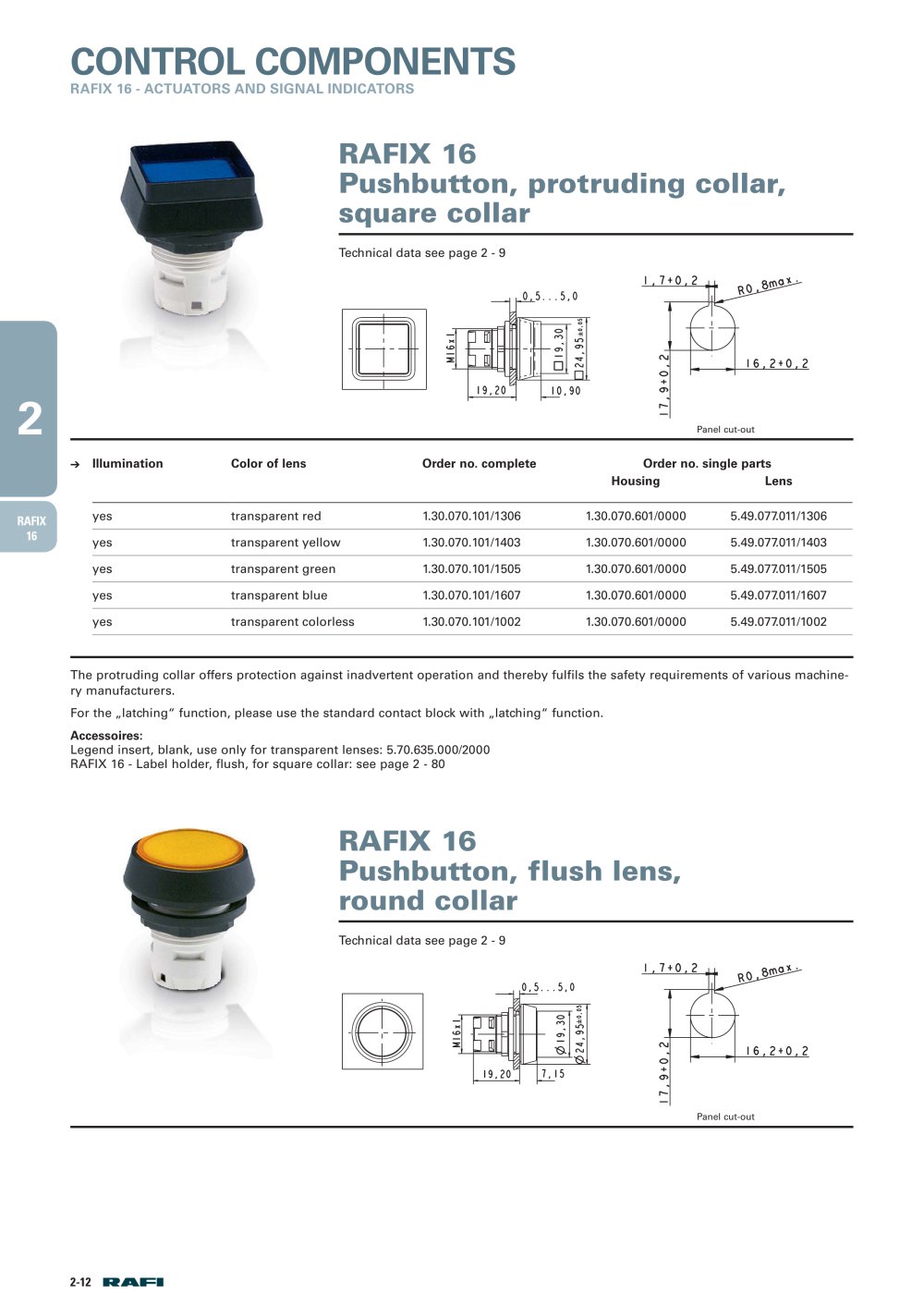

Stock items are marked by bold printed order numbers. RAFIX 16 Control components 2 - 11 2 RAFIX 16 RAFIX 16 pushbutton, protruding collar, square collar Pict.: yellow panel cut-out Illuminability Colour of lens Order no. complete Order no. single parts Housing Lens yes transparent colourless 1.30.070.101/1002 1.30.070.601/0000 5.49.077.011/1002 yes transparent red 1.30.070.101/1306 1.30.070.601/0000 5.49.077.011/1306 yes transparent yellow 1.30.070.101/1403 1.30.070.601/0000 5.49.077.011/1403 yes transparent green 1.30.070.101/1505 1.30.070.601/0000 5.49.077.011/1505 yes transparent blue 1.30.070.101/1607 1.30.070.601/0000 5.49.077.011/1607 no opaque black 1.30.070.351/0100 1.30.070.851/0000 5.05.510.640/0100 no opaque white 1.30.070.351/0200 1.30.070.851/0000 5.05.510.640/0200 no opaque red 1.30.070.351/0300 1.30.070.851/0000 5.05.510.640/0300 no opaque yellow 1.30.070.351/0400 1.30.070.851/0000 5.05.510.640/0400 no opaque green 1.30.070.351/0500 1.30.070.851/0000 5.05.510.640/0500 no opaque blue 1.30.070.351/0600 1.30.070.851/0000 5.05.510.640/0600 Technical data see page 2 - 8 The protruding collar offers protection against inadvertent operation and thereby fulfils the safety requirements of various machinery manufacturers, particularly in the printing industry. For the "latching" function, please use the standard contact block with "latching" function. Legend insert, blank, use only for transparent lenses: 5.70.635.000/2000 Accessories:
