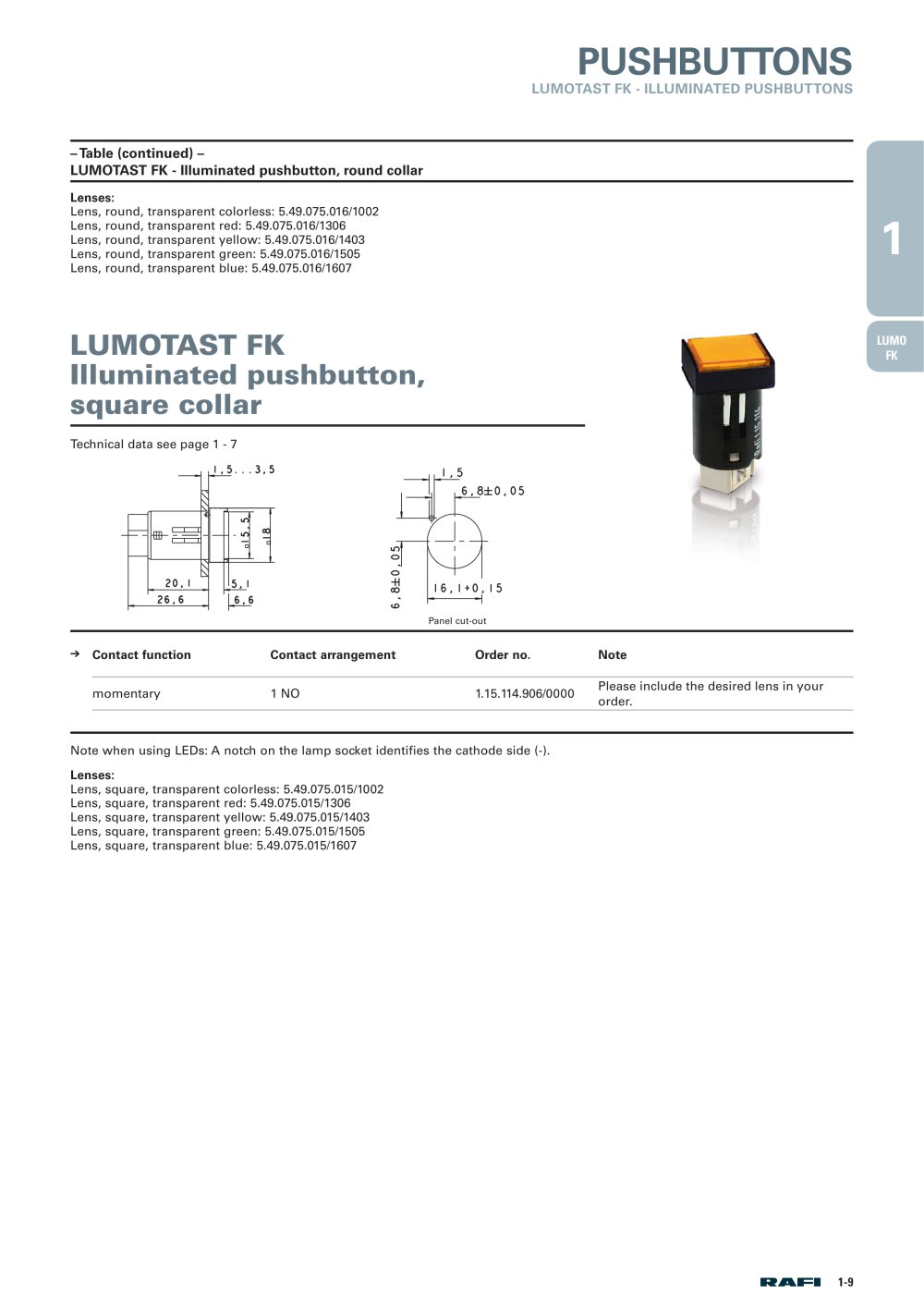

LUMOTAST FK

Series LUMOTAST FK

16.2 mm mounting hole diameter

1

Design

LUMOFK Pushbutton as supplied Insert pushbutton into panel cut-out Press once to fit Attach connector with flat-ribbon cable

Disassembly

1. Grip body/lens 2. Pull out body/lens 3. Release click lever 4. Pull out pushbutton/signal lamp with cable

1 - 10Pushbuttons
