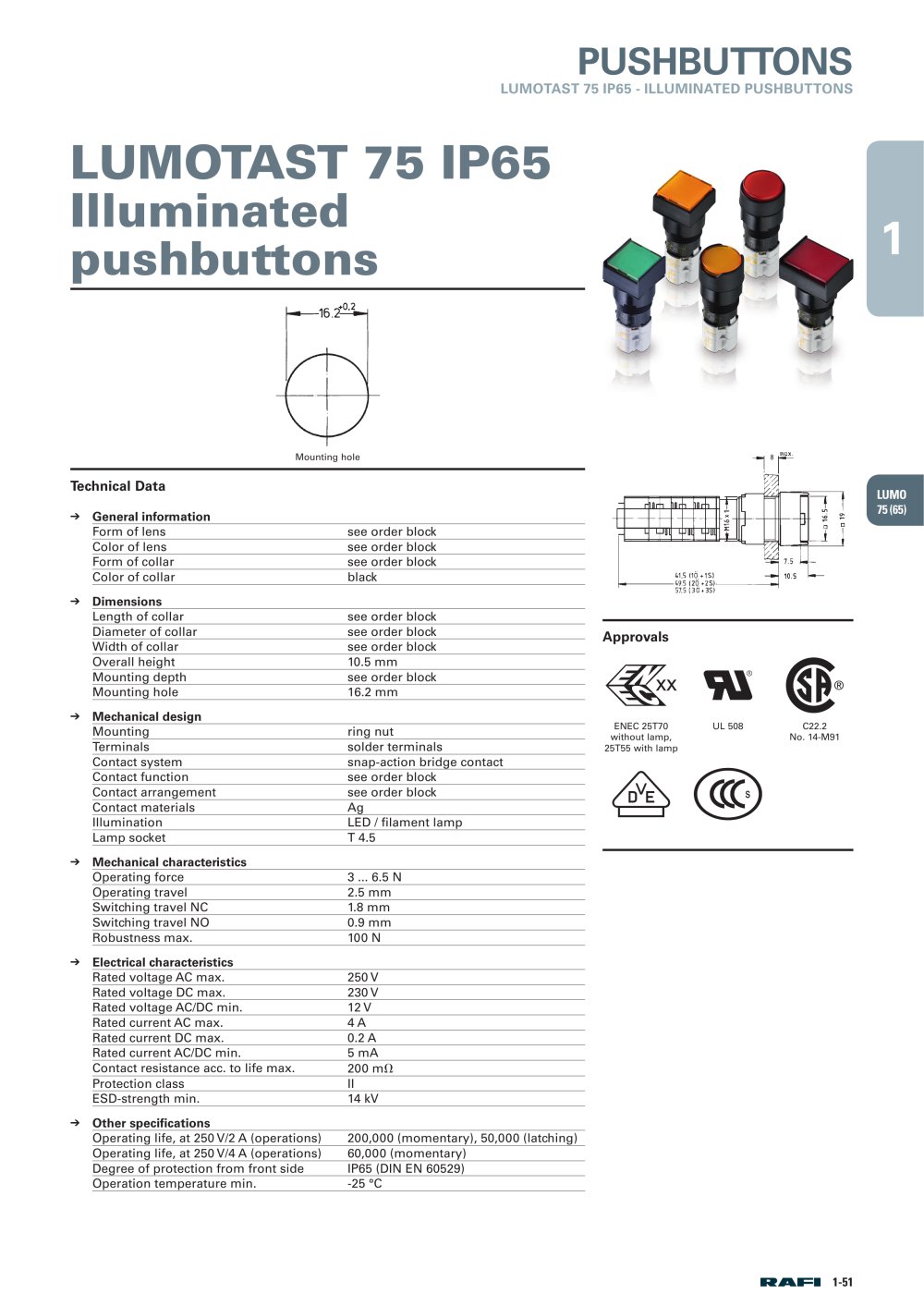

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Microsoft Sans Serif", sans-serif; } .font1 { font:13.00pt "Microsoft Sans Serif", sans-serif; } .font2 { font:29.00pt "Microsoft Sans Serif", sans-serif; } LUMOTAST 75 IP65 1 LUMO 75 (65) Contact arrangement Contact function Colour of collar Order no. without lens Note 1 NC + 1 NO momentary black 1.15.108.276/0000 Please include the desired lens in your order. 1 NC + 1 NO latching black 1.15.108.376/0000 Please include the desired lens in your order. 2 NC + 2 NO momentary black 1.15.108.277/0000 Please include the desired lens in your order. 2 NC + 2 NO latching black 1.15.108.377/0000 Please include the desired lens in your order. 3 NC + 3 NO momentary black 1.15.108.278/0000 Please include the desired lens in your order. 3 NC + 3 NO latching black 1.15.108.378/0000 Please include the desired lens in your order. Technical data see page 1 - 54 Lens, square, transparent colourless, for filament lamp or LED: 5.49.277.052/1002 Lens, square, transparent red, for LED: 5.49.277.052/1301 Lens, square, transparent red, for filament lamp: 5.49.277.052/1303 Lens, square, transparent yellow, for filament lamp or LED: 5.49.277.052/1402 Lens, square, transparent green, for filament lamp: 5.49.277.052/1502 Lens, square, transparent green, for LED: 5.49.277.052/1503 Lens, square, transparent blue, for filament lamp: 5.49.277.052/1601 Accessories: Legend insert, square, without legend: 5.70.629.000/2000 1 - 56 Stock items are marked by bold printed order numbers. Pushbuttons
