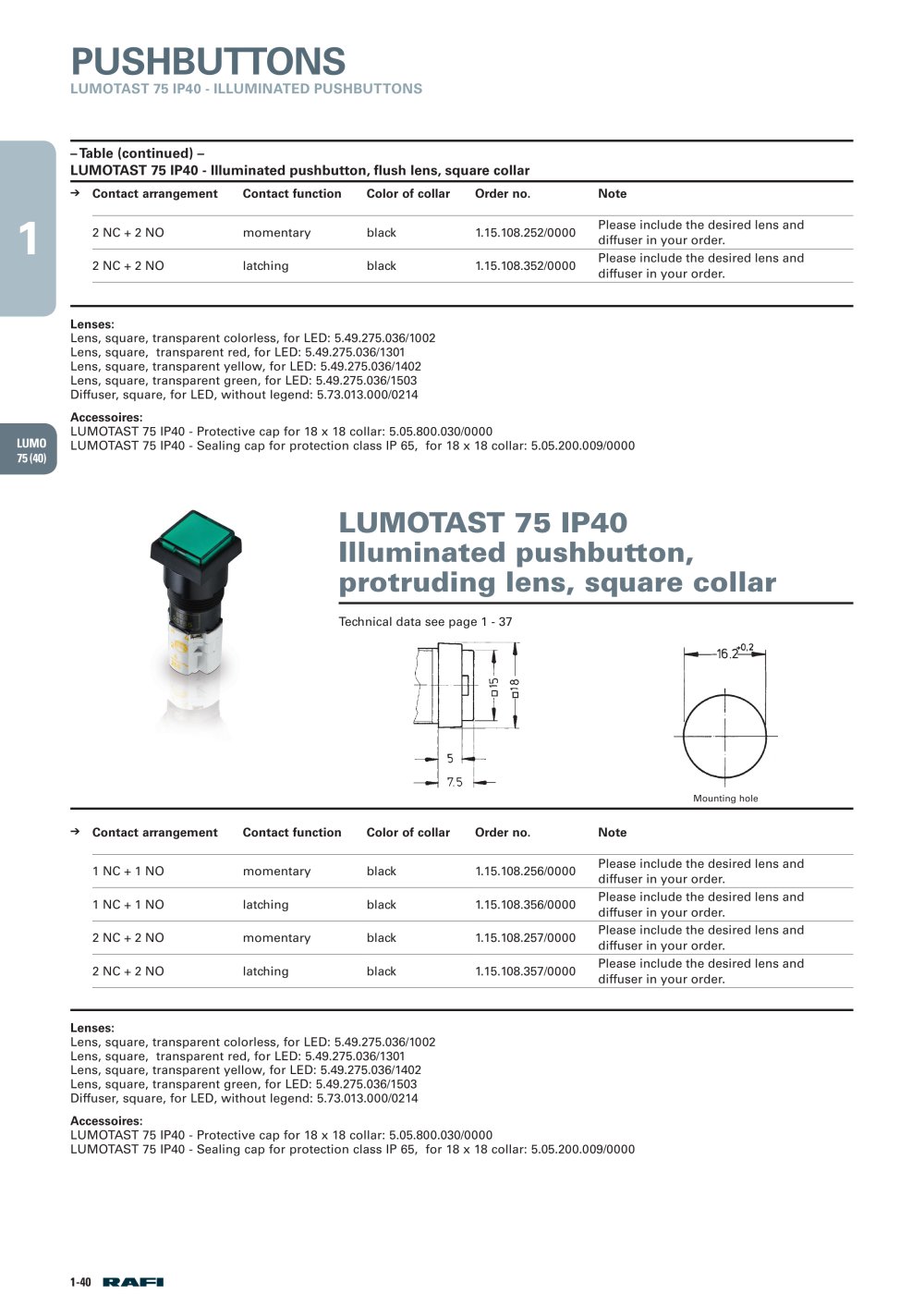

LUMOTAST 75 IP40

LUMOTAST 75 illuminated pushbutton IP40, protruding lens, square collar

Pict.: colourless

Mounting hole


Contact arrangement	Contact function	Colour of collar	Order no. without lens	Note
1 NC+1 NO	momentary	black	1.15.108.256/0000	Please include the desired lens and diffuser in your order.
1 NC+1 NO	latching	black	1.15.108.356/0000	Please include the desired lens and diffuser in your order.
2 NC + 2 NO	momentary	black	1.15.108.257/0000	Please include the desired lens and diffuser in your order.
2 NC + 2 NO	latching	black	1.15.108.357/0000	Please include the desired lens and diffuser in your order.
3 NC+ 3 NO	momentary	black	1.15.108.258/0000	Please include the desired lens and diffuser in your order.
3 NC+ 3 NO	latching	black	1.15.108.358/0000	Please include the desired lens and diffuser in your order.

LUMO 75 (40)

Technical data see page 1 - 38

Lens, square, transparent colourless, for filament lamp or LED: 5.49.275.036/1002

Lens, square, transparent red, for LED: 5.49.275.036/1301

Lens, square, transparent red, for filament lamp: 5.49.275.036/1303

Lens, square, transparent yellow, for filament lamp or LED: 5.49.275.036/1402

Lens, square, transparent green, for filament lamp: 5.49.275.036/1502

Lens, square, transparent green, for LED: 5.49.275.036/1503

Lens, square, transparent blue, for filament lamp: 5.49.275.036/1601

Accessories:

Sealing cap IP65 (for 18 x 18 collar): 5.05.200.009/0000

Protective cap (for 18 x 18 collar): 5.05.800.030/0000

Diffuser, square, for filament lamp, without legend: 5.73.013.000/0202

Diffuser, square, for LED, without legend: 5.73.013.000/0214

Pushbuttons Stock items are marked 1 - 43

by bold printed order numbers.
