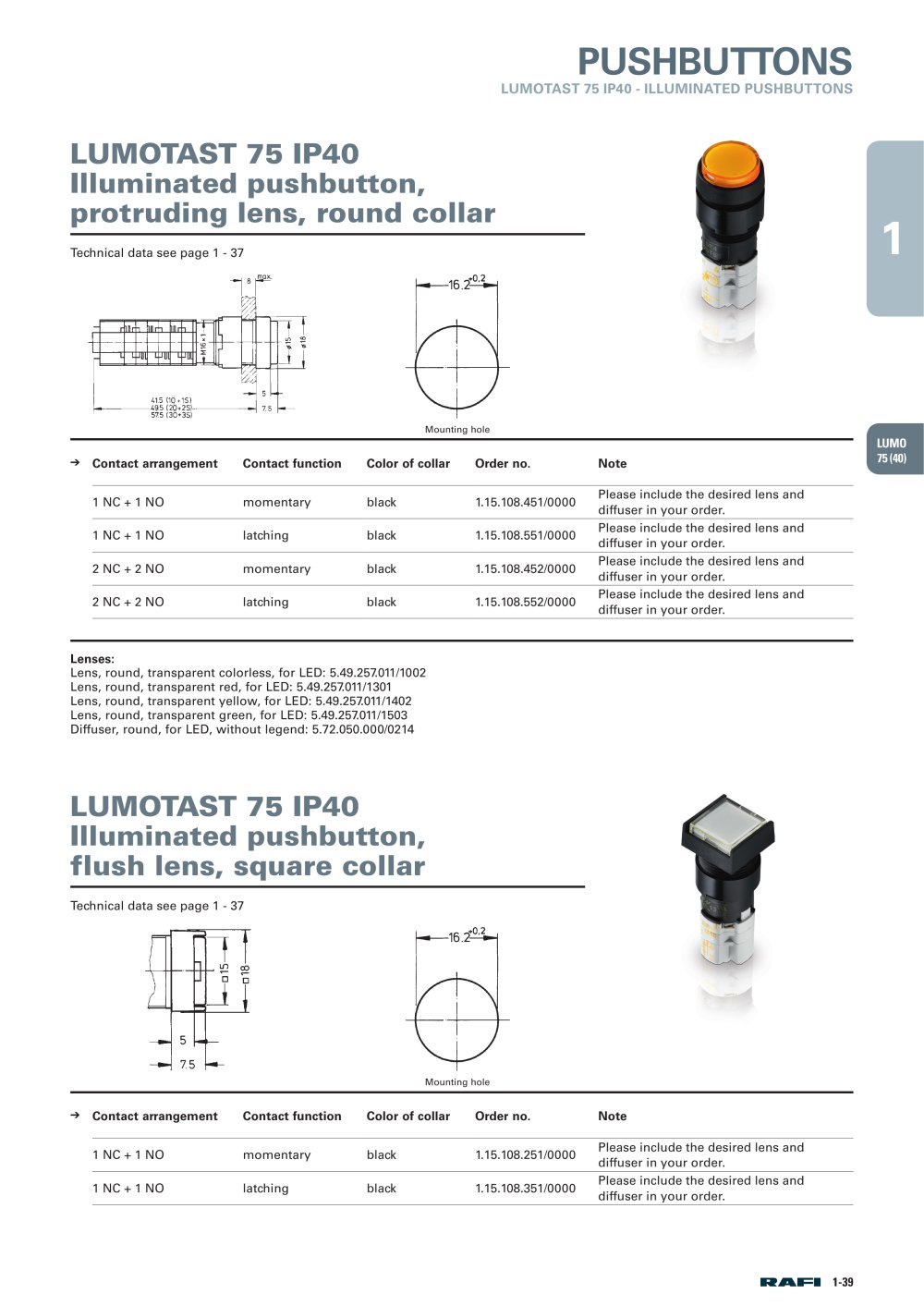

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Microsoft Sans Serif", sans-serif; } .font1 { font:8.00pt "Microsoft Sans Serif", sans-serif; } .font2 { font:11.00pt "Microsoft Sans Serif", sans-serif; } .font3 { font:13.00pt "Microsoft Sans Serif", sans-serif; } .font4 { font:29.00pt "Microsoft Sans Serif", sans-serif; } LUMOTAST 75 IP40 LUMOTAST 75 lluminatec pushbutton IP40 f ush ens, rectangular collar 1 Pict.: green LUMO 75 (40) Contact arrangement Contact function Colour of collar 1 NC + 1 NO momentary black 1 NC + 1 NO latching black 2 NC + 2 NO momentary black 2 NC + 2 NO latching black 3 NC + 3 NO momentary black 3 NC + 3 NO latching black Order no. Note without lens 1.15.108.051/0000 1.15.108.151/0000 1.15.108.052/0000 1.15.108.152/0000 1.15.108.053/0000 1.15.108.153/0000 Please include the desired lens and diffuser in your order. Please include the desired lens and diffuser in your order. Please include the desired lens and diffuser in your order. Please include the desired lens and diffuser in your order. Please include the desired lens and diffuser in your order. Please include the desired lens and diffuser in your order. Technical data see page 1 - 38 Lens, rectangular, transparent colourless, for filament lamp or LED: 5.49.275.032/1002 Lens, rectangular, transparent red, for LED: 5.49.275.032/1301 Lens, rectangular, transparent red, for filament lamp: 5.49.275.032/1303 Lens, rectangular, transparent yellow, for filament lamp or LED: 5.49.275.032/1402 Lens, rectangular, transparent green, for filament lamp: 5.49.275.032/1502 Lens, rectangular, transparent green, for LED: 5.49.275.032/1503 Lens, rectangular, transparent blue, for filament lamp: 5.49.275.032/1601 Accessories: Sealing cap IP65 (for 18 x 24 collar): 5.05.200.008/0000 Protective cap (for 18 x 24 collar): 5.05.800.027/0000 Diffuser, rectangular, for filament lamp, without legend: 5.73.012.000/0202 Diffuser, rectangular, for LED, without legend: 5.73.012.000/0214 1 - 42 Stock items are marked by bold printed order numbers. Pushbuttons
