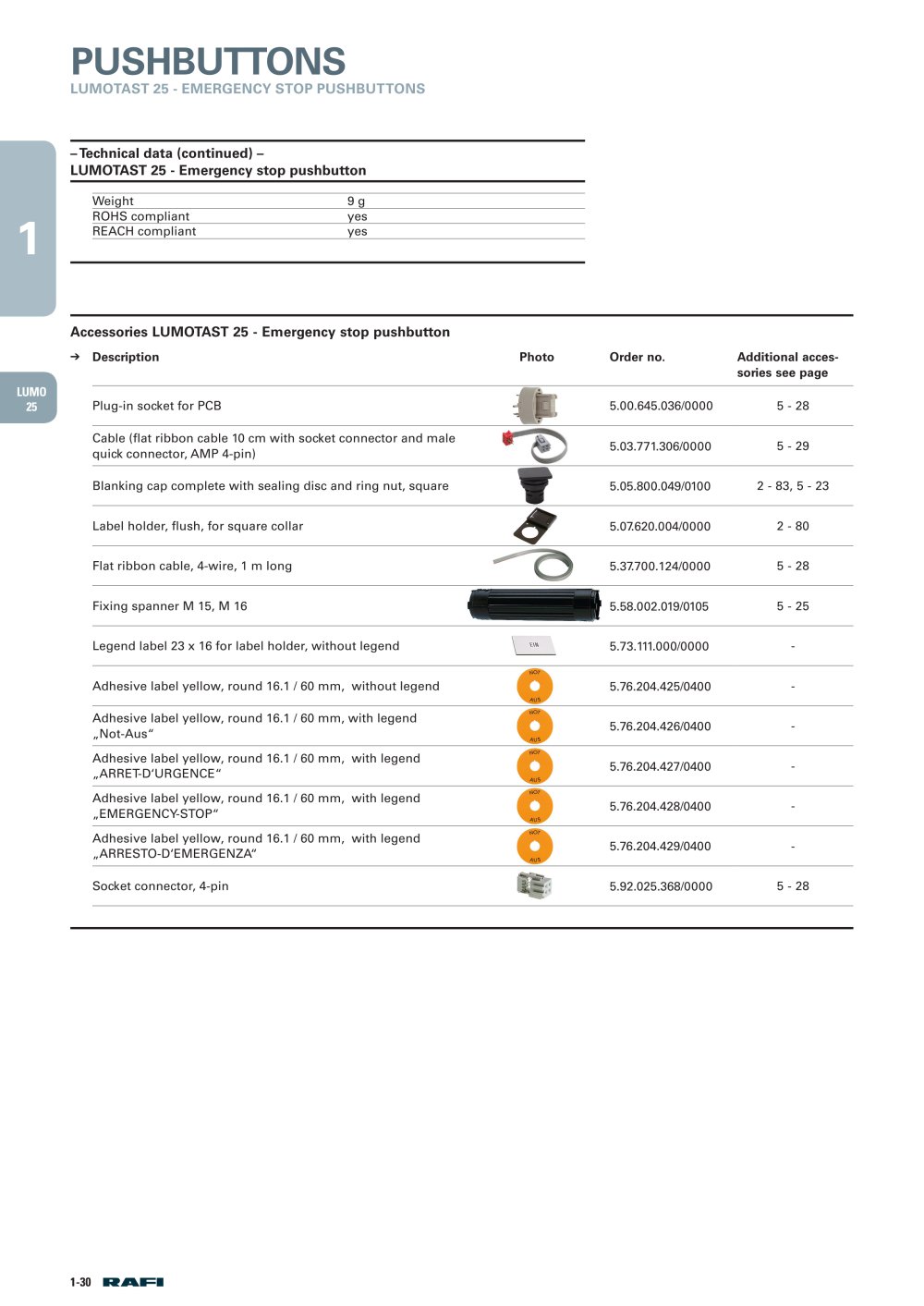

LUMOTAST 25
Description Photo Order no. Page Flat ribbon cable, 4-wire, 1 m long 5.37.700.124/0000 5 - 27 Fixing spanner M 15, M 16 5.58.002.019/0105 5 - 25
1
Legend label 23 x 16 for label holder, without legend 5.73.111.000/0000 2 - 76
Emergency stop label, yellow, adhesive, round 60 mm,without legend 5.76.204.425/0400 Emergency stop label, yellow, adhesive, round 60 mm,
with legend "NOT-AUS" 5.76.204.426/0400 Emergency stop label, yellow, adhesive, round 60 mm,
with legend "ARRET-D'URGENCE" 5.76.204.427/0400
LUMO25 Emergency stop label, yellow, adhesive, round 60 mm,
with legend "EMERGENCY-STOP" 5.76.204.428/0400 Emergency stop label, yellow, adhesive, round 60 mm,
with legend "ARRESTO-D'EMERGENZA" 5.76.204.429/0400 Socket connector, 4-pin 5.92.025.368/0000 5 - 26
LUMOTAST 25 emergency stop pushbutton, ring nut fixing
Pict.: black collarPanel cut-out Contact function Contact arrangement Colour of collar Order no. complete Order no. single parts Housing Lens latching 2 NC (forcibly actuated) black 1.15.154.006/0301 latching 2 NC (forcibly actuated) yellow 1.15.154.016/0301
Technical data see page 1 - 32 Pushbuttons1 - 33
Stock items are markedby bold printed order numbers.
