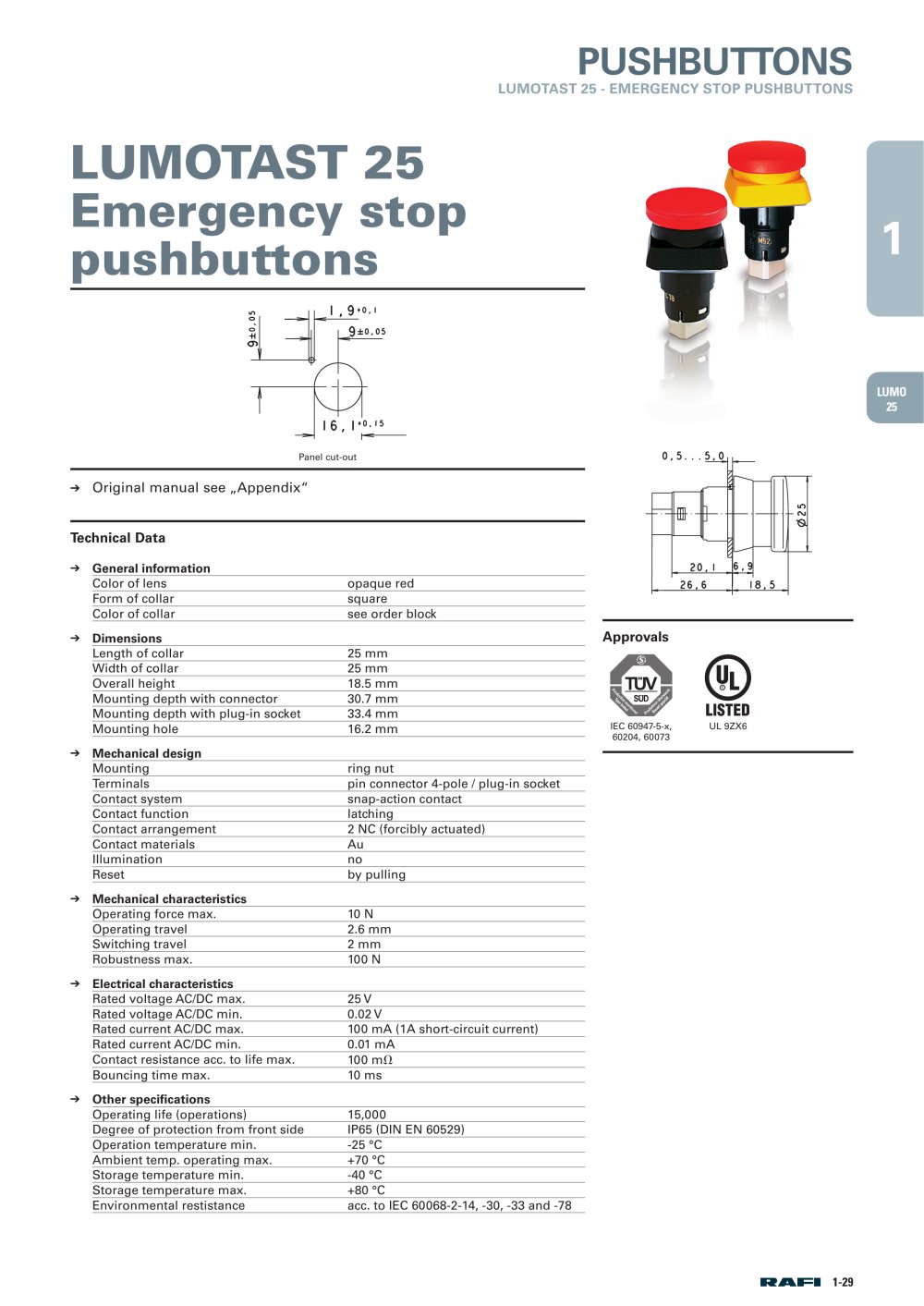

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Microsoft Sans Serif", sans-serif; } .font1 { font:11.00pt "Microsoft Sans Serif", sans-serif; } .font2 { font:13.00pt "Microsoft Sans Serif", sans-serif; } .font3 { font:22.45pt "Microsoft Sans Serif", sans-serif; } .font4 { font:23.00pt "Microsoft Sans Serif", sans-serif; } LUMOTAST 25 Technical data LUMO 25 General information Electrical characteristics Colour of lens opaque red Rated voltage AC/DC max. 25 V Form of collar square Rated voltage AC/DC min. 0.02 V Colour of collar see order block Rated current AC/DC max. 1 A , 100 mA rated current Rated current AC/DC min. 0.01 mA Dimensions Contact resistance max. 100 mfl Length of collar 25 mm Bouncing time max. 10 ms Width of collar 25 mm Overall height 18.5 mm Other specifications Mounting depth with Operating life 15000 connector 30.7 mm Degree of protection Mounting depth with from front side IP65 plug-in socket 33.4 mm Ambient temp. operating Mounting hole 16.2 mm min. -25 °C Ambient temp. operating Mechanical design max. +70 °C Mounting ring nut Storage temperature min. -40 °C Terminals pin connector 4-pol./ Storage temperature max. +80 °C plug-in socket Resistance to constant Contact system snap-action contact environment according to Contact function latching IEC 600 68-2-3 and 2-30 Contact arrangement 2 NC (forcibly actuated) Resistance at variable Contact materials Au environment according to Illuminability no IEC 600 68-2-14 and 2-33 Weight 9 g Mechanical characteristics Approvals TUV/UL according to Operating force max. 10 N EN 60947-5-5 and -5-1/A2, Operating travel 2.6 mm UL 508 Switching travel 2 mm Robustness min. 100 N Accessories LUMOTAST 25 emergency stop pushbutton Description Photo Order no. Page Plug-in socket for PCB m 5.00.645.036/0000 5 - 28 Cable (flat ribbon cable 10 cm with socket connector and male quick connector, AMP 4-pin) 5.03.771.306/0000 5 - 27 Blanking cap complete with sealing disc and ring nut, square 4 5.05.800.049/0100 5 - 33 Label holder, flush, for square collar 5.07.620.004/0000 2 - 76 1 - 32 Stock items are marked by bold printed order numbers. Pushbuttons
