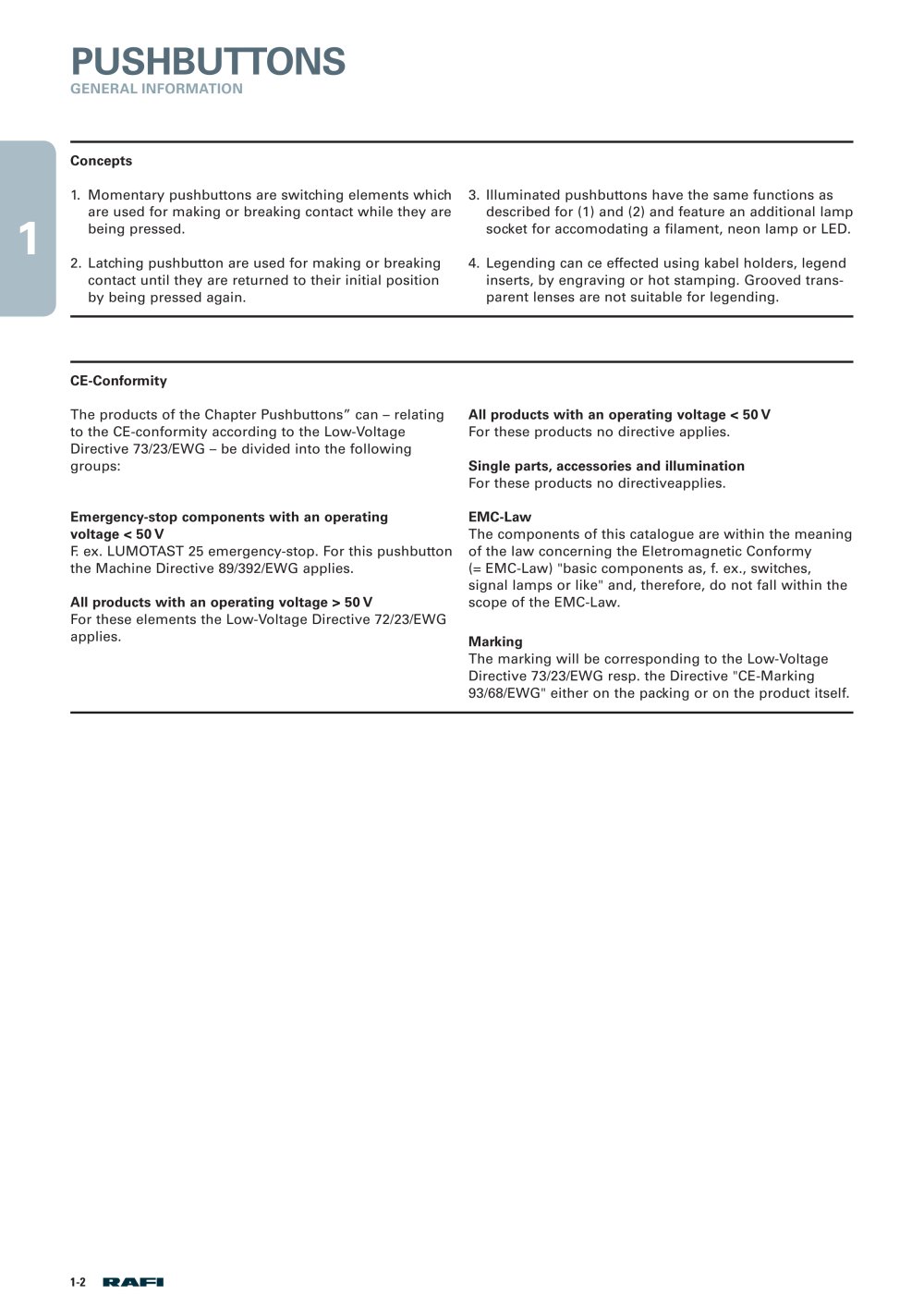

CE-Conformity Declarations of Conformity Declarations of conformity for all concerned products are availableand can be delivered upon request.Please always state the exact order reference of the respective product. Marking

Pushbuttons

The marking will be corresponding to the Low-Voltage Directive 73/23/ EWG resp. the Directive ”CE-Marking 93/68/EWG” either on the packing or on the product itself. Legending can ce effected usinglegend inserts, by engraving or hot stamping. Grooved transpa-rent lenses are not suitable for legending.

General information

Illuminated pushbuttons Pushbuttons with degree of protection IP 65 are provided with a special sealing, which guaran-tees reliable and long-lasting protection.5. have thesame functions as described for (1) and (2) and feature an additional lamp socket for accomodating a filament, neon lamp or LED.4.

1

Concepts 1. Momentary pushbuttons are swit-ching elements which are used for making or breaking contact while they are being pressed.2. Latching pushbutton are used formaking or breaking contact until they are returned to their initial position by being pressed again.3. All products with an operating voltage < 50 V For these products no directive applies. Single parts, accessories and illumination For these products no directive ap- plies. EMC-Law The components of this catalogue are within the meaning of the law concerning the Eletromagnetic Conformy (= EMC-Law) ”basic com- ponents as, f. ex., switches, signal lamps or like” and, therefore, do not fall within the scope of the EMC-Law. The products of the Chapter Pushbuttons” can – relating to the CE-conformity according to the Low-Voltage Directive 73/23/EWG – be divided into the following groups: Emergency-stop components withan operating voltage < 50 V F. ex. LUMOTAST 25 emergency- stop. For this pushbutton the Machi- ne Directive 89/392/EWG applies. All products with an operating voltage > 50 V For these elements the Low-Voltage Directive 72/23/EWG applies.

1 - 2Pushbuttons
