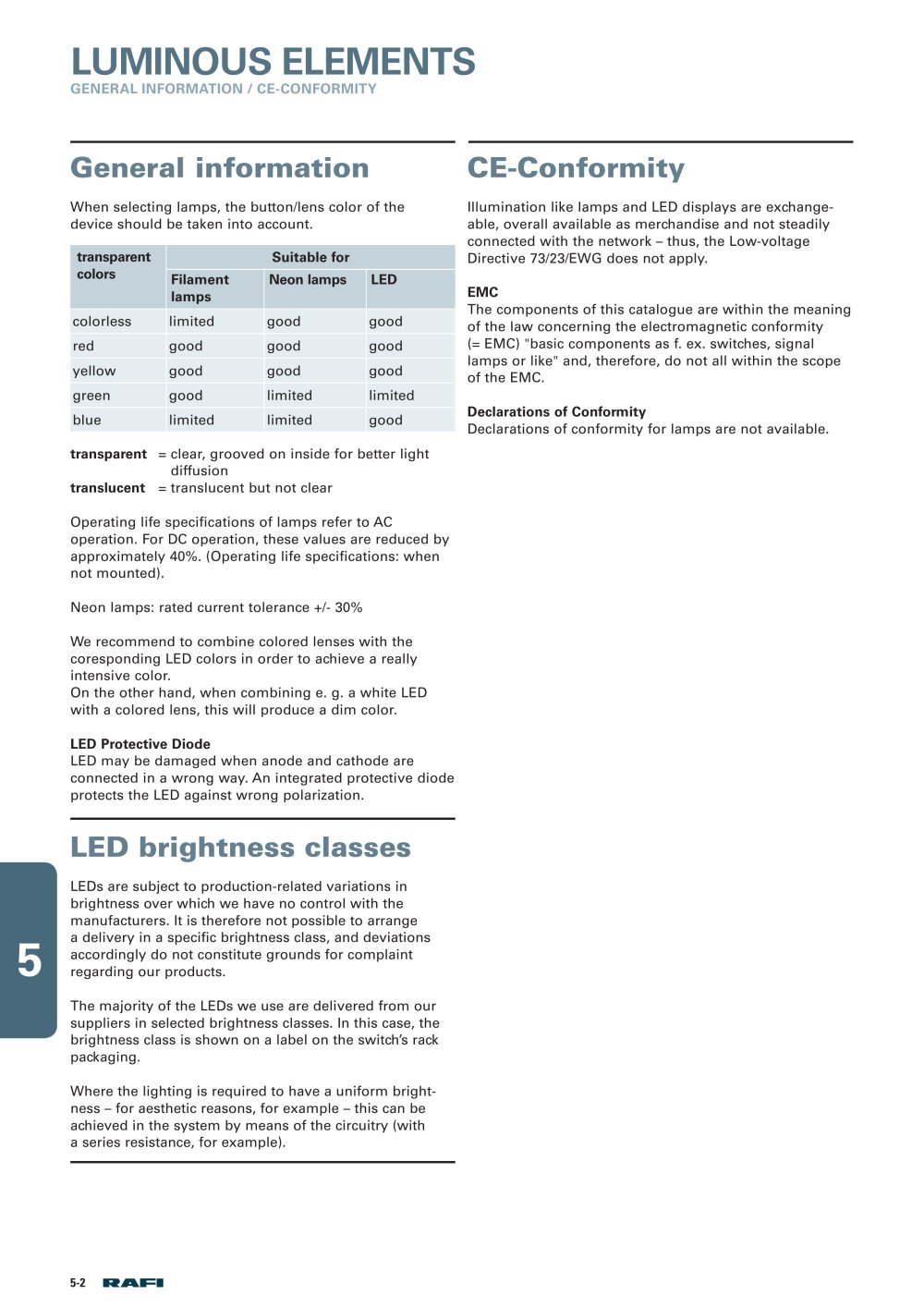

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:34.00pt "Arial", sans-serif; } Lamps General information When selecting lamps, the button/lens colour of the devi-ce should be taken into account. CE-Conformity Illumination like lamps and LEDs displays are exchangea-ble, overall available as merchandise and not steadily connected with the network - thus, the Low-voltage Direc­tive 73/23/EWG does not apply. EMC The components of this catalogue are within the meaning of the law concerning the electromagnetic conformity (= EMC) "basic components as f. ex. switches, signal lamps or like" and, therefore, do not all within the scope of the EMC. Declarations of Conformity Declarations of conformity for lamps are not available. transparent colours Suitable for Filament lamps Neon lamps LED colourless limited good good red good good good yellow good good good green good limited limited blue limited limited good transparent = clear, grooved on inside for better light diffusion translucent = translucent but not clear Operating life specifications of lamps refer to AC operation. For DC operation, these values are reduced by approximately 40%. (Operating life specifications: when not mounted). Neon lamps: rated current tolerance +/- 30% We recommend to combine coloured lenses with the coresponding LED colours in order to achieve a really intensive colour. On the other hand, when combining e.g. a white LED with a coloured lens, this will produce a dim colour. 5 5 - 2 Accessories
