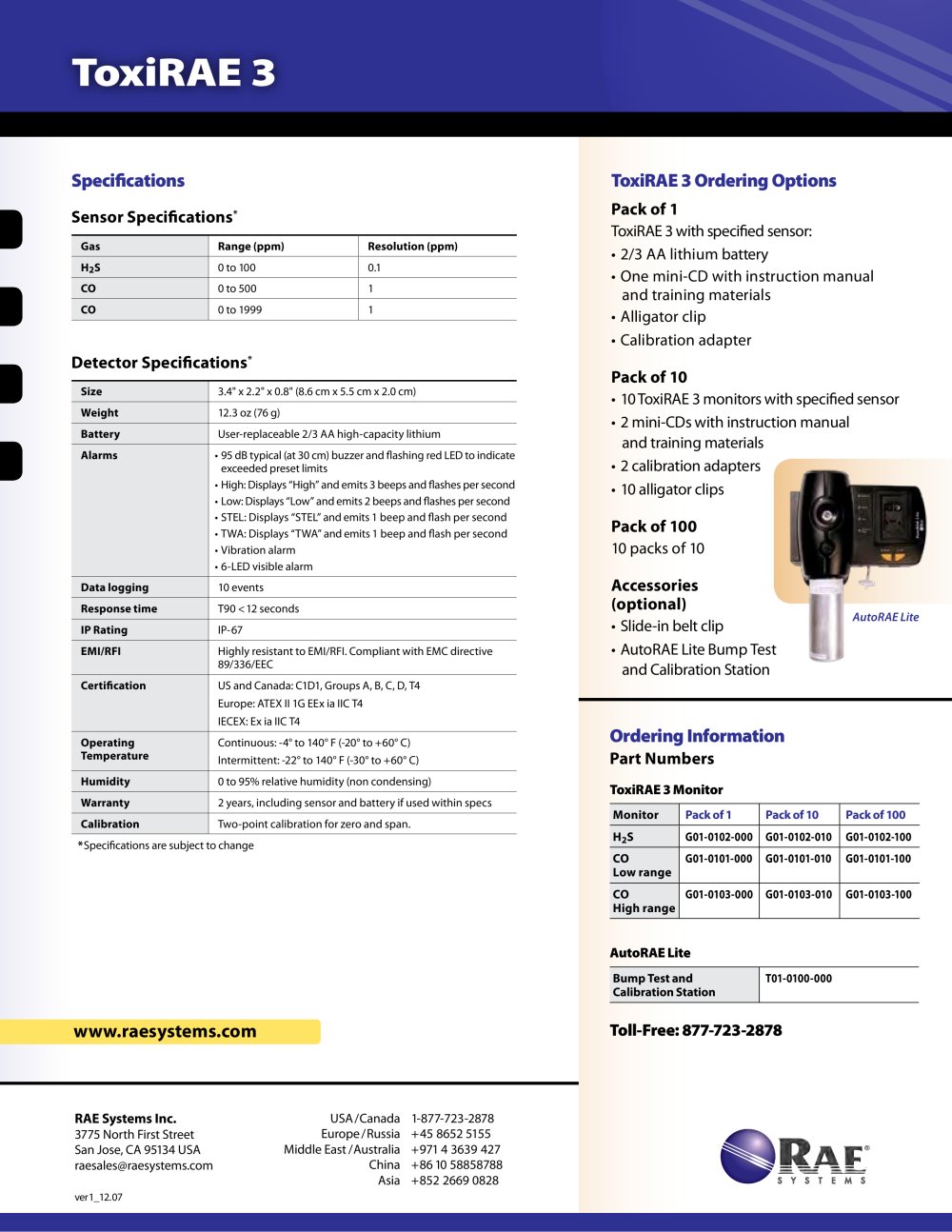

ToxiRAE 3

Specifications

Sensor Specifications*

ToxiRAE 3 Ordering Options

Pack of 1

ToxiRAE 3 with specified sensor:

• 2/3 AA lithium battery

• One mini-CD with instruction manual and training materials

• Alligator clip

• Calibration adapter

Pack of 10

• 10 ToxiRAE 3 monitors with specified sensor

• 2 mini-CDs with instruction manual and training materials

• 2 calibration adapters

• 10 alligator clips

Detector Specifications*


	Size	3.4" x 2.2" x 0.8" (8.6 cm x 5.5 cm x 2.0 cm)
	Weight	12.3 oz (76 g)
	Battery	User-replaceable 2/3 AA high-capacity lithium
	Alarms	• 95 dB typical (at 30 cm) buzzer and flashing red LED to indicate exceeded preset limits • High: Displays "High" and emits 3 beeps and flashes per second • Low: Displays "Low" and emits 2 beeps and flashes per second • STEL: Displays "STEL" and emits 1 beep and flash per second • TWA: Displays "TWA" and emits 1 beep and flash per second • Vibration alarm • 6-LED visible alarm
	Data logging	10 events
	Response time	T90 < 12 seconds
	IP Rating	IP-67
	EMI/RFI	Highly resistant to EMI/RFI. Compliant with EMC directive 89/336/EEC
	Certification	US and Canada: C1D1, Groups A, B, C, D, T4 Europe: ATEX II 1G EEx ia IIC T4 IECEX: Ex ia IIC T4
	Operating Temperature	Continuous: -4° to 140° F (-20° to +60° C) Intermittent: -22° to 140° F (-30° to +60° C)
	Humidity	0 to 95% relative humidity (non condensing)
	Warranty	2 years, including sensor and battery if used within specs
	Calibration	Two-point calibration for zero and span.

Pack of 100

10 packs of 10

Accessories (optional)

• Slide-in belt clip

• AutoRAE Lite Bump Test and Calibration Station

AutoRAE Lite

Ordering Information

Part Numbers

ToxiRAE 3 Monitor

*Specifications are subject to change

AutoRAE Lite

Toll-Free: 877-723-2878

www.raesystems.com

USA /Canada 1-877-723-2878

Europe/Russia +45 8652 5155

Middle East/Australia +971 4 3639 427

China +86 10 58858788

Asia +852 2669 0828

RAE Systems Inc.

3775 North First Street San Jose, CA 95134 USA raesales@raesystems.com

ver 1_12.07
