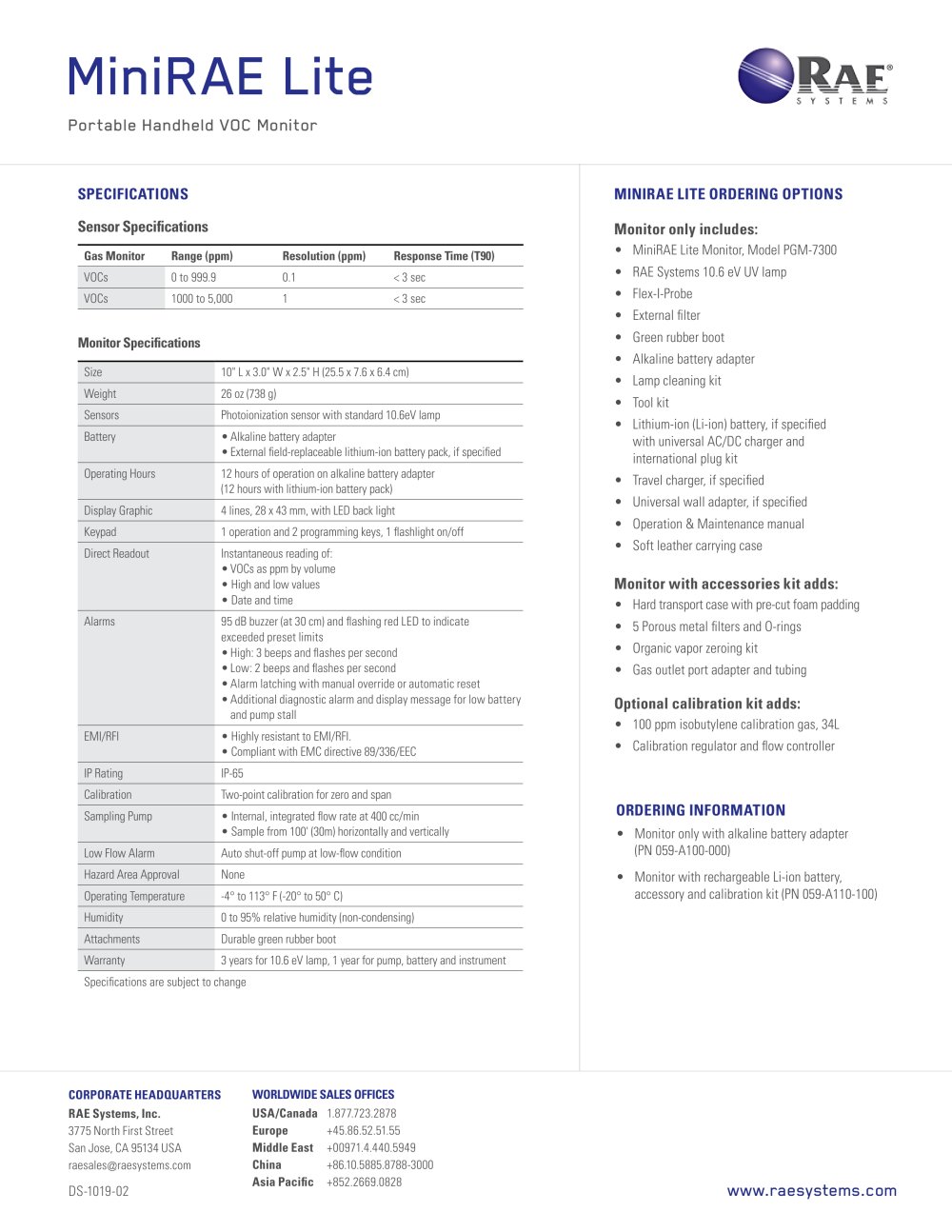

iRAE Lite

Specifications

Sensor Specifications*

MiniRAE Lite Ordering Options

Monitor only includes:

• MiniRAE Lite Monitor, Model PGM-7300

• RAE Systems 10.6 eV UV lamp

• Flex-I-Probe

• External filter

• Green rubber boot


Gas Monitor	Range (ppm)	Resolution (ppm)	Response Time (T90)
VOCs	0 to 999.9	0.1	< 3 sec
VOCs	1000 to 5,000	1	< 3 sec

Monitor Specifications*


Size	10" L x 3.0" W x 2.5" H (25.5 x 7.6 x 6.4 cm)	• Alkaline battery adapter
Weight	26 oz (738 g)	• Lamp-cleaning kit
Sensors	Photoionization sensor with standard 10.6eV lamp	• Tool kit
Battery	• Alkaline battery adapter • External field-replaceable lithium-ion battery pack, if specified	• Lithium-ion (Li-ion) battery, if specified with universal AC/DC charger and international plug kit
Operating Hours	12 hours of operation on alkaline battery adapter (12 hours with lithium-ion battery pack)
Display Graphic	4 lines, 28 x 43 mm, with LED back light	• Travel charger, if specified
Keypad	1 operation and 2 programming keys, 1 flashlight on/off	• Universal wall adapter, if specified
Direct Readout	Instantaneous reading of:	• Operation & Maintenance manual
	• VOCs as ppm by volume • High and low values	• Soft leather carrying case
	• Date and time	Monitor with accessories kit adds: • Hard transport case with pre-cut foam • 5 porous metal filters and O-rings
Alarms	95 dB buzzer (at 30 cm/12") and flashing red LED to indicate exceeded preset limits • High: 3 beeps and flashes per second • Low: 2 beeps and flashes per second
	• Alarm latching with manual override or automatic reset • Additional diagnostic alarm and display message for low battery and pump stall	• Organic vapor zeroing kit • Gas outlet port adapter and tubing
EMI/RFI	Highly resistant to EMI/RFI. Compliant with EMC directive
	89/336/EEC	Optional calibration kit adds: • 100 ppm isobutylene calibration gas, 34L • Calibration regulator and low controller
IP Rating	IP-65
Calibration	Two-point calibration for zero and span
Sampling Pump	• Internal, integrated flow rate at 400 cc/min • Sample from 100' (30m) horizontally and vertically
Low Flow Alarm	Auto shut-off pump at low-flow condition
Hazard Area Approval	None	Ordering Information Part Numbers
Operating Temperature	-4° to 113° F (-20° to 50° C)
Humidity	0 to 95% relative humidity (non-condensing)
Attachments	Durable green rubber boot	Monitor only with alkaline battery adapter
Warranty	3 years for 10.6 eV lamp, 1 year for pump, battery and instrument	P/N 059-A100-000

* Specifications are subject to change

Monitor with rechargeable Li-ion battery, accessory and calibration kit

P/N 059-A110-100

Toll-Free: 877-723-2878

www.raesystems.com

USA/Canada 1-877-723-2878

Europe/Russia +45 8652 5155

Middle East/Australia +971 4 3639 427

China +86 10 58858788

Asia +852 2669 0828

RAE Systems Inc.

3775 North First Street San Jose, CA 95134 USA raesales@raesystems.com

ver 1_11.07
