® a\g

r/a\dw_;

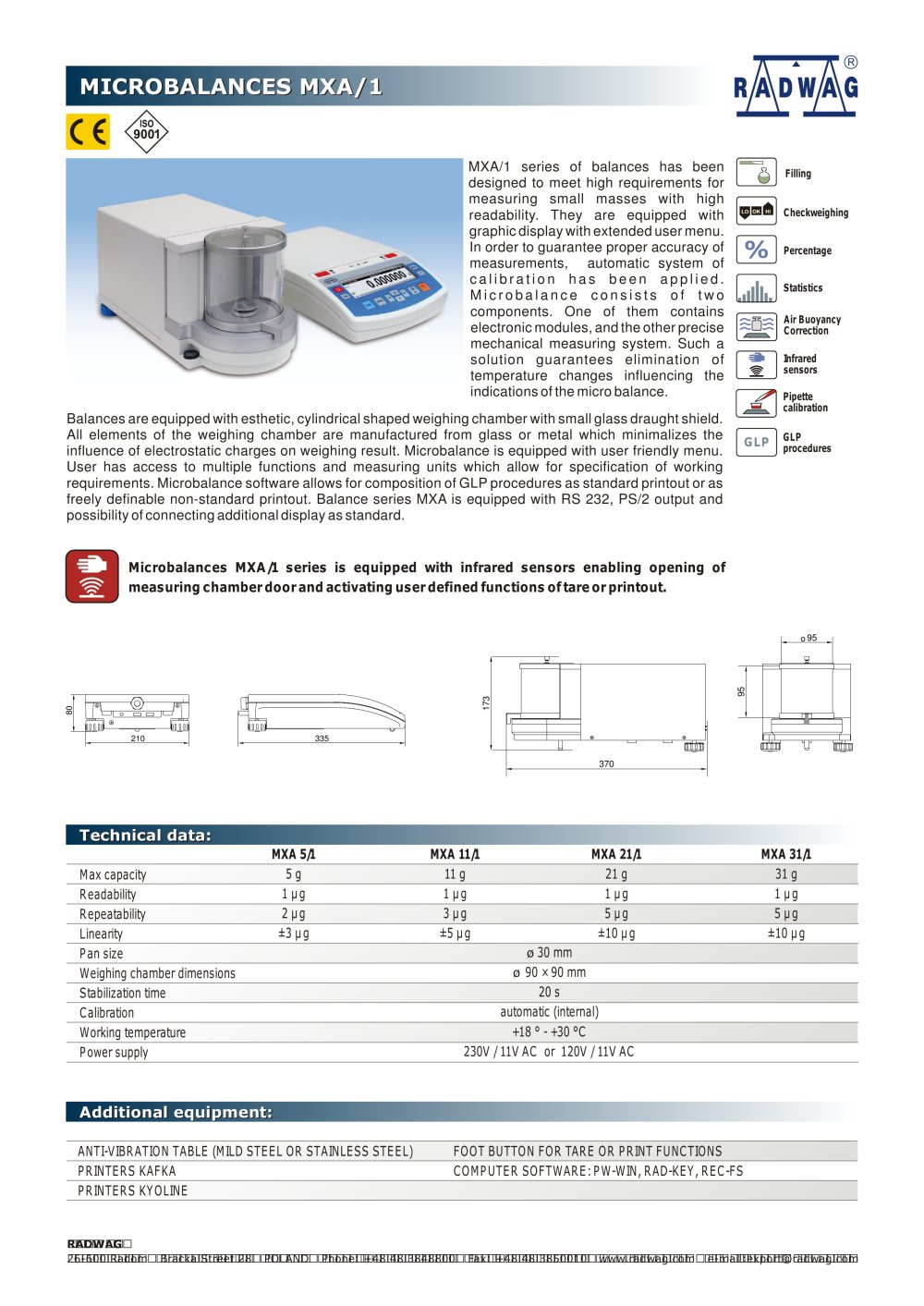

MICROBALANCES

MXA/1 series of balances has been designed to meet high requirements for measuring small masses with high readability. They are equipped with graphic display with extended user menu. In order to guarantee proper accuracy of measurements, automatic system of calibration has been applied. Microbalance consists of two components. One of them contains electronic modules, and the other precise mechanical measuring system. Such a solution guarantees elimination of temperature changes influencing the indications of the micro balance.

Balances are equipped with esthetic, cylindrical shaped weighing chamber with small glass draught shield. All elements of the weighing chamber are manufactured from glass or metal which minimalizes the influence of electrostatic charges on weighing result. Microbalance is equipped with user friendly menu. User has access to multiple functions and measuring units which allow for specification of working requirements. Microbalance software allows for composition of GLP procedures as standard printout or as freely definable non-standard printout. Balance series MXA is equipped with RS 232, PS/2 output and possibility of connecting additional display as standard.

Filling

Checkweighing

Percentage

Statistics

Lük]

\ Air Buoyancy t=L Correction

Infrared sensors

Pipette calibration

GLP

procedures

GLP

Microbalances MXA/1 series is equipped with infrared sensors enabling opening of measuring chamber door and activating user defined functions of tare or printout.

o95

370


Technical data:
MXA 5/1	MXA 11/1	MXA 21/1	MXA 31/1
Max capacity 5 g	ii g	21 g	31 g
Readability 1 g	i g	i g	1 g
Repeatability 2 g	3 g	5 g	5 g
Linearity ±3 g	±5 g	±10 g	±10 g
Pan size		0 30 mm
Weighing chamber dimensions		0 90 x 90 mm
Stabilization time		20 s
Calibration		automatic (internal)
Working temperature		+18° - +30°C
Power supply	230V / 11V AC or 120V / 11V AC

Additional equipment: ^^^^^1

ANTI-VIBRATION TABLE (MILD STEEL OR STAINLESS STEEL)	FOOT BUTTON FOR TARE OR PRINT FUNCTIONS
PRINTERS KAFKA	COMPUTER SOFTWARE: PW-WIN, RAD-KEY, REC-FS
PRINTERS KYOLINE

RADWAG

26-600 Radom Bracka Street 28 POLAND Phone: +48 48 3848800 Fax: +48 48 3850010 www.radwag.com e-mail:export@radwag.com
