| | | r/a\dw/a\g | | |
| | | ANALYTICA | | K | | |
| | | |
| | | |
| | | |
| | | Ci M | | |
| | | |
| | | Counting pieces | | |

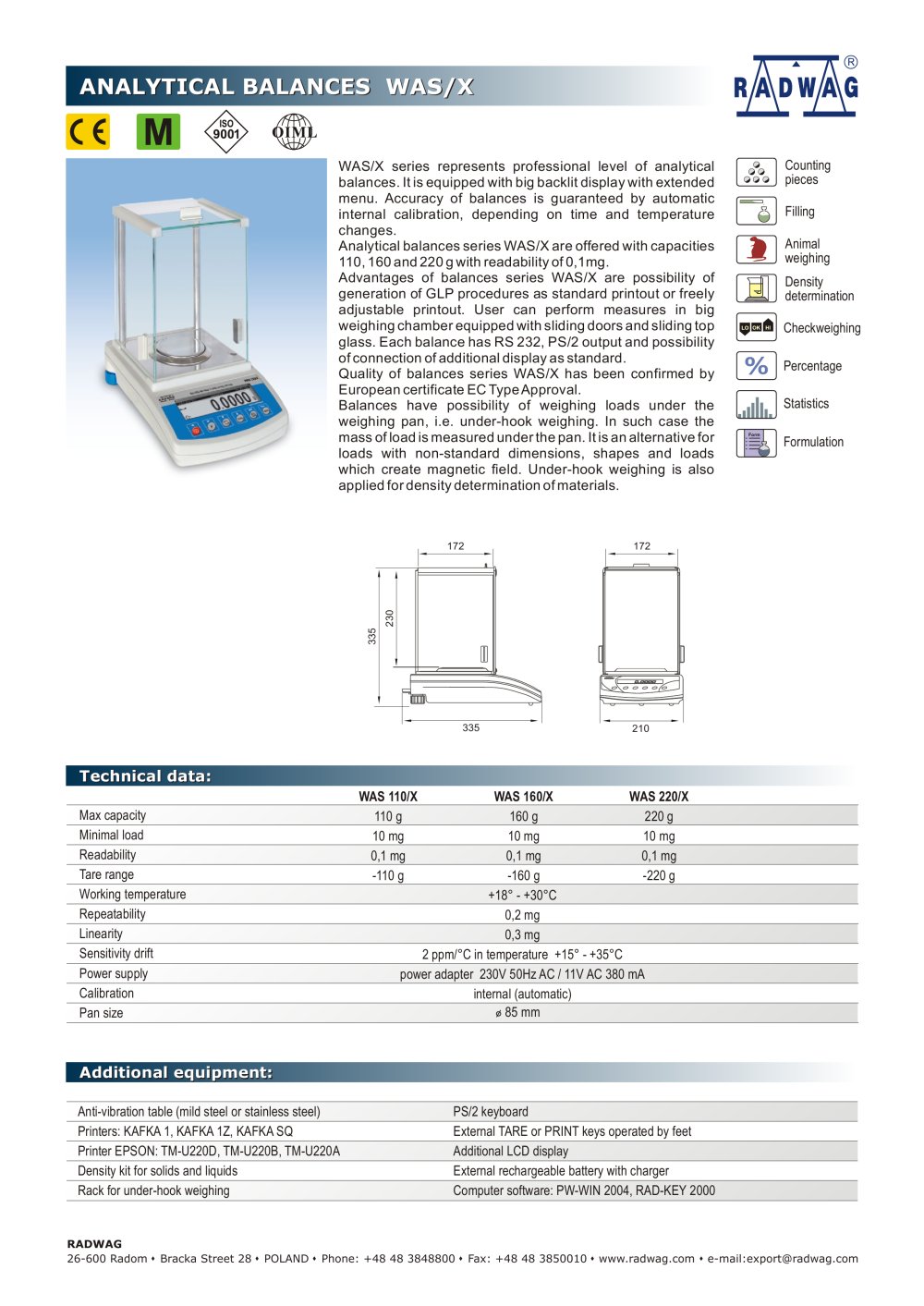

| | | WAS/X series represents professional level of analytical balances. It is equipped with big backlit display with extended menu. Accuracy of balances is guaranteed by automatic internal calibration, depending on time and temperature changes. Analytical balances series WAS/X are offered with capacities 110,160 and 220 g with readability of 0,1mg. Advantages of balances series WAS/X are possibility of generation of GLP procedures as standard printout or freely adjustable printout. User can perform measures in big weighing chamber equipped with sliding doors and sliding top glass. Each balance has RS 232, PS/2 output and possibility of connection of additional display as standard. Quality of balances series WAS/X has been confirmed by European certificate ECType Approval. Balances have possibility of weighing loads under the weighing pan, i.e. under-hook weighing. In such case the mass of load is measured under the pan. It is an alternative for loads with non-standard dimensions, shapes and loads which create magnetic field. Under-hook weighing is also applied for density determination of materials. | | |
| | | O 00 000 | | |
| | | |
| | | |
| | | Ö Fillin9 | | |
| | | |
| | | Animal weighing Density determination | | |
| | | |
| | | Çjnil| Checkweighing
| |
| | | |
| | | % | | |
| | | Percentage | |
| | | |
| | | |
| | | Statistics | | |
| | | |
| | | =k Formulation | | |
| | | |
| | | |
| | | | | | | | | | | | Technical data: | | | | | | | | WAS110/X | WAS 160/X | WAS 220/X | | | | Max capacity | 110g | 160 g | 220 g | | | | Minimal load | 10 mg | 10 mg | 10 mg | | | | Readability | 0,1 mg | 0,1 mg | 0,1 mg | | | | Tare range | -110g | -160 g | -220 g | | | | Working temperature | | +18°-+30°C | | | | | Repeatability | | 0,2 mg | | | | | Linearity | | 0,3 mg | | | | | Sensitivity drift | | 2 ppm/°C in temperature +15° | +35°C | | | | Power supply | power adapter 230V 50Hz AC /11V AC 380 mA | | | | Calibration | | internal (automatic) | | | | | | | | | | | | |
| | | |
| | | Pan size 0 85 mm | | |
| | | |
| | | | | | | | | | Additional equipment: ^^^^^fl | | | | | | | | Anti-vibration table (mild steel or stainless steel) | PS/2 keyboard | | | | Printers: KAFKA 1, KAFKA 1Z, KAFKA SQ | External TARE or PRINT keys operated by feet | | | | Printer EPSON: TM-U220D, TM-U220B, TM-U220A | Additional LCD display | | | | Density kit for solids and liquids | External rechargeable battery with charger | | | | Rack for under-hook weighing | Computer software: PW-WIN 2004, RAD-KEY 2000 | | | | | | | | | |
| | | |
| | | RADWAG | |
| | | |
| | | 26-600 Radom ♦ Bracka Street 28 ♦ POLAND ♦ Phone: +48 48 3848800 ♦ Fax: +48 48 3850010 ♦ www.radwag.com ♦ e-mail:export@radwag.com | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
