r/a\dw/a\g

ce m

a_Q Counting aaa | pieces

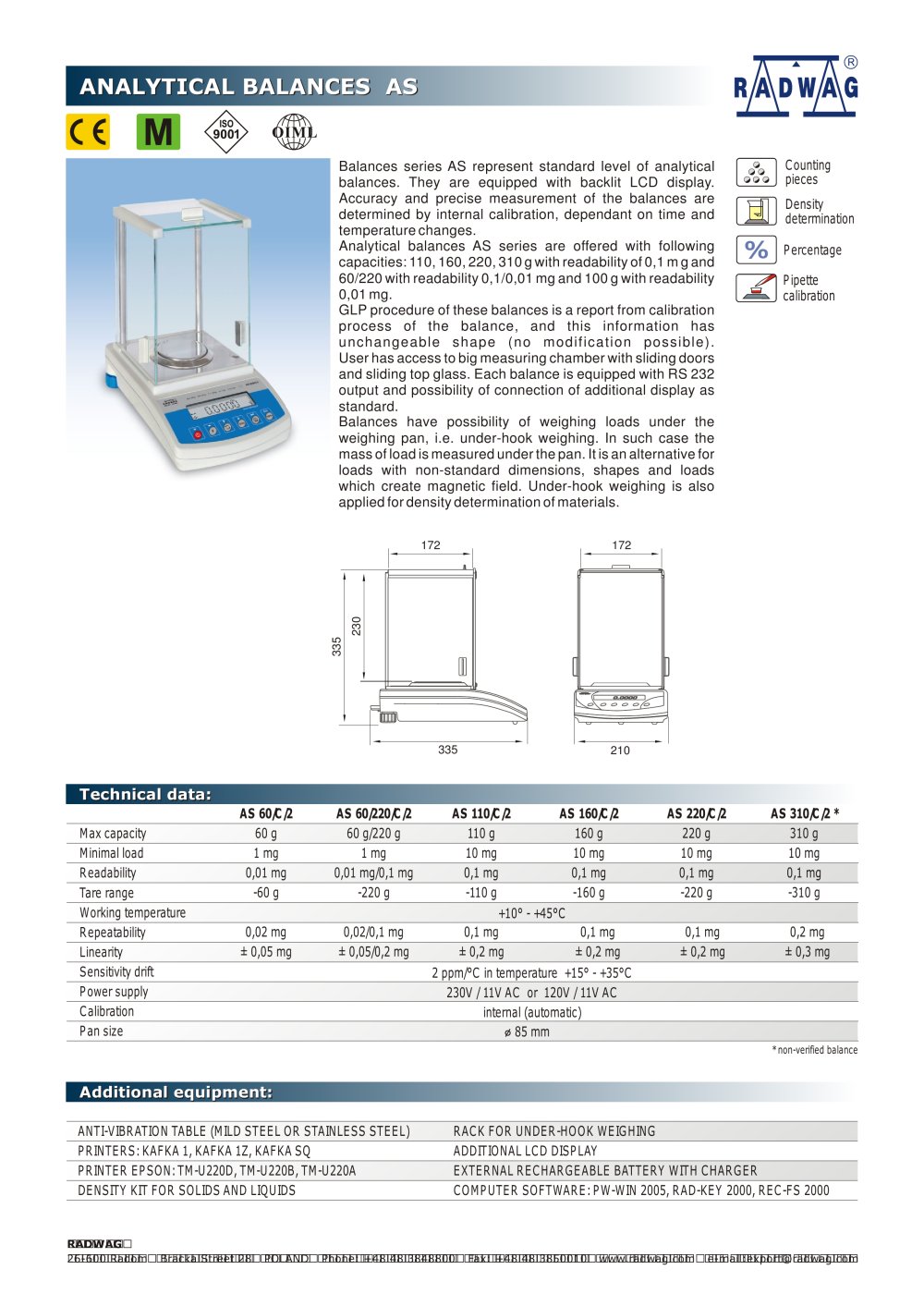

Balances series AS represent standard level of analytical balances. They are equipped with backlit LCD display. Accuracy and precise measurement of the balances are determined by internal calibration, dependant on time and temperature changes.

Analytical balances AS series are offered with following capacities: 110, 160, 220, 310 g with readability of 0,1 m g and 60/220 with readability 0,1/0,01 mg and 100 g with readability 0,01 mg.

GLP procedure of these balances is a report from calibration process of the balance, and this information has unchangeable shape (no modification possible). User has access to big measuring chamber with sliding doors and sliding top glass. Each balance is equipped with RS 232 output and possibility of connection of additional display as standard.

Balances have possibility of weighing loads under the weighing pan, i.e. under-hook weighing. In such case the mass of load is measured under the pan. It is an alternative for loads with non-standard dimensions, shapes and loads which create magnetic field. Under-hook weighing is also applied for density determination of materials.

Density determination

Percentage

Pipette calibration

172

CO CO

335

210

Technical data:


	AS 60/C/2	AS 60/220/C/2	AS 110/C/2	AS 160/C/2	AS 220/C/2	AS 310/C/2 *
Max capacity	60 g	60 g/220 g	110 g	160 g	220 g	310 g
Minimal load	1 mg	1 mg	10 mg	10 mg	10 mg	10 mg
Readability	0,01 mg	0,01 mg/0,1 mg	0,1 mg	0,1 mg	0,1 mg	0,1 mg
Tare range	-60 g	-220 g	-110 g	-160 g	-220 g	-310 g
Working temperature			+10°	- +45°C
Repeatability	0,02 mg	0,02/0,1 mg	0,1 mg	0,1 mg	0,1 mg	0,2 mg
Linearity	± 0,05 mg	± 0,05/0,2 mg	± 0,2 mg	± 0,2 mg	± 0,2 mg	± 0,3 mg
Sensitivity drift			2 ppm/°C in temperature +15° - +35°C

Power supply

230V / 11V AC or 120V / 11V AC

Calibration

internal (automatic)

Pan size

185 mm

* non-verified balance

Additional equipment:

RACK FOR UNDER-HOOK WEIGHING

ANTI-VIBRATION TABLE (MILD STEEL OR STAINLESS STEEL)

PRINTERS: KAFKA 1, KAFKA 1Z, KAFKA SQ

ADDITIONAL LCD DISPLAY

EXTERNAL RECHARGEABLE BATTERY WITH CHARGER

PRINTER EPSON: TM-U220D, TM-U220B, TM-U220A

COMPUTER SOFTWARE: PW-WIN 2005, RAD-KEY 2000, REC-FS 2000

DENSITY KIT FOR SOLIDS AND LIQUIDS

RADWAG

26-600 Radom Bracka Street 28 POLAND Phone: +48 48 3848800 Fax: +48 48 3850010 www.radwag.com e-mail:export@radwag.com
