r/a\dw/a\g

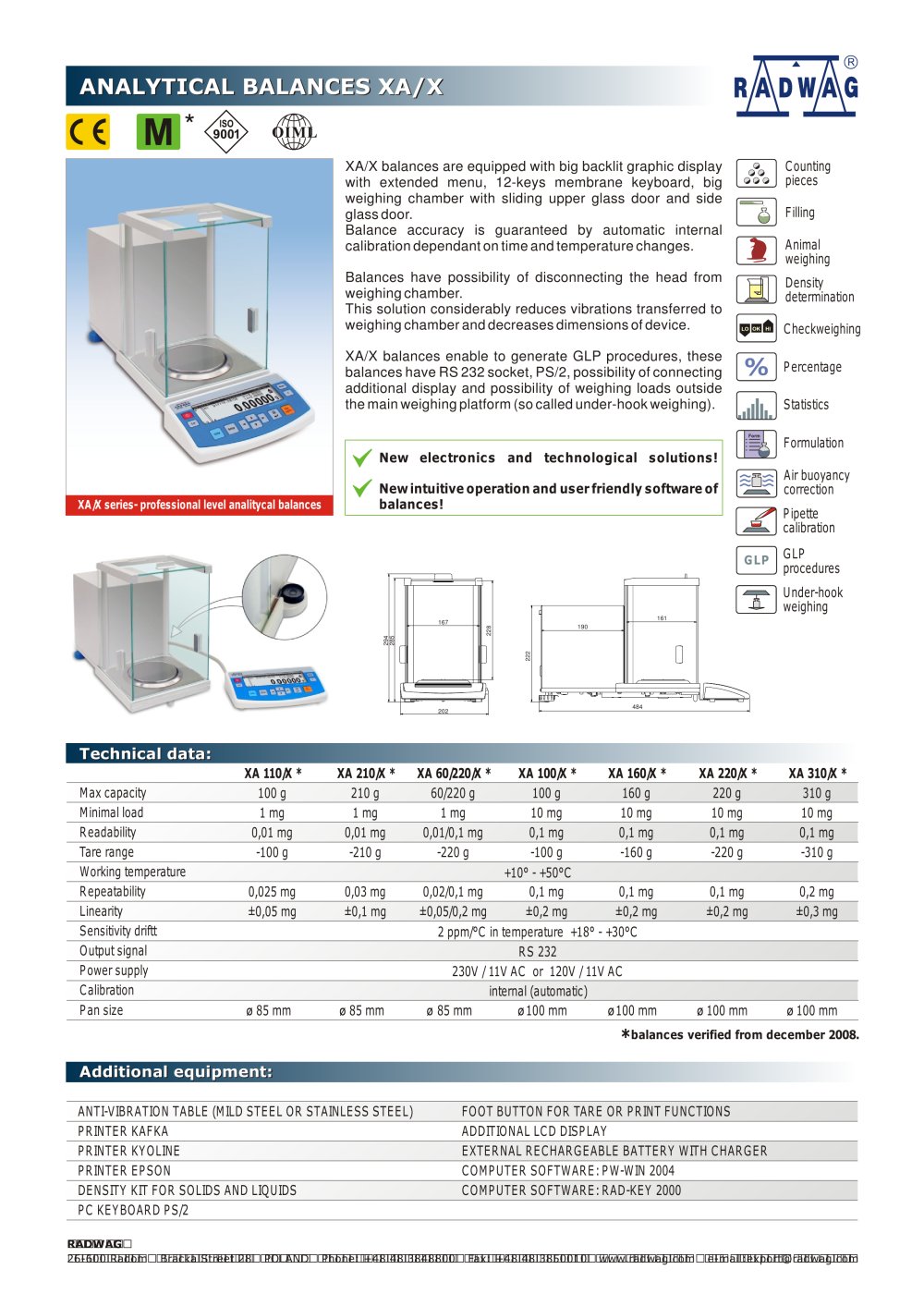

ALYTI CAL BALANCES XA/ X

CC M*

Counting pieces

Filling

Animal weighing

Density determination

XA/X balances are equipped with big backlit graphic display with extended menu, 12-keys membrane keyboard, big weighing chamber with sliding upper glass door and side glass door.

Balance accuracy is guaranteed by automatic internal calibration dependant on time and temperature changes.

Balances have possibility of disconnecting the head from weighing chamber.

This solution considerably reduces vibrations transferred to weighing chamber and decreases dimensions of device.

XA/X balances enable to generate GLP procedures, these balances have RS 232 socket, PS/2, possibility of connecting additional display and possibility of weighing loads outside the main weighing platform (so called under-hook weighing).

O 00 000

Cjratìi Checkweighing

Percentage

Statistics Formulation

New electronics and technological solutions!

>f New intuitive operation and user friendly software of balances!

Air buoyancy correction

Pipette calibration

GLP

procedures

Under-hook weighing


Technical data: ^^^^^1
	XA 110/X *	XA 210/X *	XA 60/220/X *	XA 100/X *	XA 160/X *	XA 220/X *	XA 310/X *
Max capacity	100 g	210 g	60/220 g	100 g	160 g	220 g	310 g
Minimal load	1 mg	1 mg	1 mg	10 mg	10 mg	10 mg	10 mg
Readability	0,01 mg	0,01 mg	0,01/0,1 mg	0,1 mg	0,1 mg	0,1 mg	0,1 mg
Tare range	-100 g	-210 g	-220 g	-100 g	-160 g	-220 g	-310 g
Working temperature				+10° - +50°C
Repeatability	0,025 mg	0,03 mg	0,02/0,1 mg	0,1 mg	0,1 mg	0,1 mg	0,2 mg
Linearity	±0,05 mg	±0,1 mg	±0,05/0,2 mg	±0,2 mg	±0,2 mg	±0,2 mg	±0,3 mg
Sensitivity driftt			2 ppm/°C in temperature +18°		- +30°C
Output signal				RS 232
Power supply			230V / 11V AC or 120V / 11V AC
Calibration				internal (automatic)
Pan size	0 85 mm	0 85 mm	0 85 mm	0100 mm	0100 mm	0100 mm	0100 mm
* balances verified from december 2008
Additional equipment:

ANTI-VIBRATION TABLE (MILD STEEL OR STAINLESS STEEL) FOOT BUTTON FOR TARE OR PRINT FUNCTIONS


	PRINTER KAFKA	ADDITIONAL LCD DISPLAY
	PRINTER KYOLINE	EXTERNAL RECHARGEABLE BATTERY WITH CHARGER
	PRINTER EPSON	COMPUTER SOFTWARE: PW-WIN 2004
	DENSITY KIT FOR SOLIDS AND LIQUIDS	COMPUTER SOFTWARE: RAD-KEY 2000
	PC KEYBOARD PS/2

RADWAG

26-600 Radom Bracka Street 28 POLAND Phone: +48 48 3848800 Fax: +48 48 3850010 www.radwag.com e-mail:export@radwag.com
