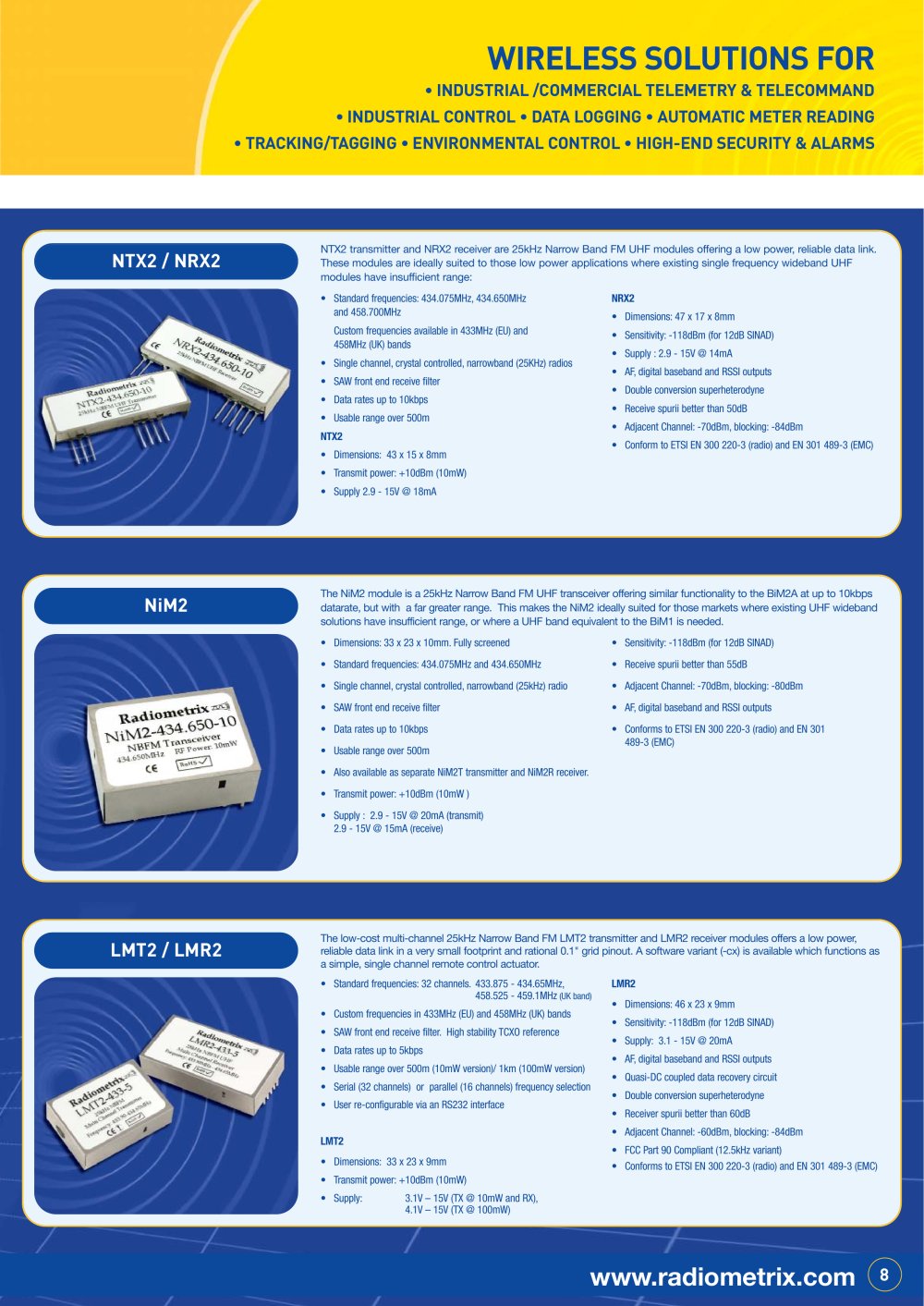

WIRELESS SOLUTIONS FOR

NRX2 •Dimensions: 47 x 17 x 8mm•Sensitivity: -118dBm (for 12dB SINAD) •Supply : 2.9 - 15V @ 14mA •AF, digital baseband and RSSI outputs •Double conversion superheterodyne •Receive spurii better than 50dB •Adjacent Channel: -70dBm, blocking: -84dBm •Conform to ETSI EN 300 220-3 (radio) and EN 301 489-3 (EMC)

• INDUSTRIAL /COMMERCIAL TELEMETRY & TELECOMMAND • INDUSTRIAL CONTROL • DATA LOGGING • AUTOMATIC METER READING • TRACKING/TAGGING • ENVIRONMENTAL CONTROL • HIGH-END SECURITY & ALARMS

NTX2 transmitter and NRX2 receiver are 25kHz Narrow Band FM UHF modules offering a low power, reliable data link.These modules are ideally suited to those low power applications where existing single frequency wideband UHF modules have insufficient range: •Dimensions: 43 x 15 x 8mm •Transmit power: +10dBm (10mW)•Supply 2.9 - 15V @ 18mA

NTX2 / NRX2

NTX2 •Standard frequencies: 434.075MHz, 434.650MHz and 458.700MHzCustom frequencies available in 433MHz (EU) and 458MHz (UK) bands•Single channel, crystal controlled, narrowband (25KHz) radios •SAW front end receive filter •Data rates up to 10kbps •Usable range over 500m The NiM2 module is a 25kHz Narrow Band FM UHF transceiver offering similar functionality to the BiM2A at up to 10kbpsdatarate, but with a far greater range. This makes the NiM2 ideally suited for those markets where existing UHF wideband solutions have insufficient range, or where a UHF band equivalent to the BiM1 is needed.

NiM2

•Dimensions: 33 x 23 x 10mm. Fully screened•Standard frequencies: 434.075MHz and 434.650MHz •Single channel, crystal controlled, narrowband (25kHz) radio•SAW front end receive filter•Data rates up to 10kbps •Usable range over 500m•Also available as separate NiM2T transmitter and NiM2R receiver.•Transmit power: +10dBm (10mW )•Supply : 2.9 - 15V @ 20mA (transmit)2.9 - 15V @ 15mA (receive) •Sensitivity: -118dBm (for 12dB SINAD) •Receive spurii better than 55dB•Adjacent Channel: -70dBm, blocking: -80dBm•AF, digital baseband and RSSI outputs•Conforms to ETSI EN 300 220-3 (radio) and EN 301 489-3 (EMC) LMR2 The low-cost multi-channel 25kHz Narrow Band FM LMT2 transmitter and LMR2 receiver modules offers a low power, reliable data link in a very small footprint and rational 0.1" grid pinout. A software variant (-cx) is available which functions asa simple, single channel remote control actuator. •Dimensions: 46 x 23 x 9mm •Sensitivity: -118dBm (for 12dB SINAD) •Supply: 3.1 - 15V @ 20mA•AF, digital baseband and RSSI outputs•Quasi-DC coupled data recovery circuit•Double conversion superheterodyne•Receiver spurii better than 60dB •Adjacent Channel: -60dBm, blocking: -84dBm•FCC Part 90 Compliant (12.5kHz variant)•Conforms to ETSI EN 300 220-3 (radio) and EN 301 489-3 (EMC)

LMT2 / LMR2

• Standard frequencies: 32 channels.433.875 - 434.65MHz,458.525 - 459.1MHz
(UK band) • Custom frequencies in 433MHz (EU) and 458MHz (UK) bands•SAW front end receive filter. High stability TCXO reference•Data rates up to 5kbps •Usable range over 500m (10mW version)/ 1km (100mW version)•Serial (32 channels) or parallel (16 channels) frequency selection•User re-configurable via an RS232 interface LMT2 •Dimensions: 33 x 23 x 9mm •Transmit power: +10dBm (10mW) •Supply: 3.1V – 15V (TX @ 10mW and RX), 4.1V – 15V (TX @ 100mW)
