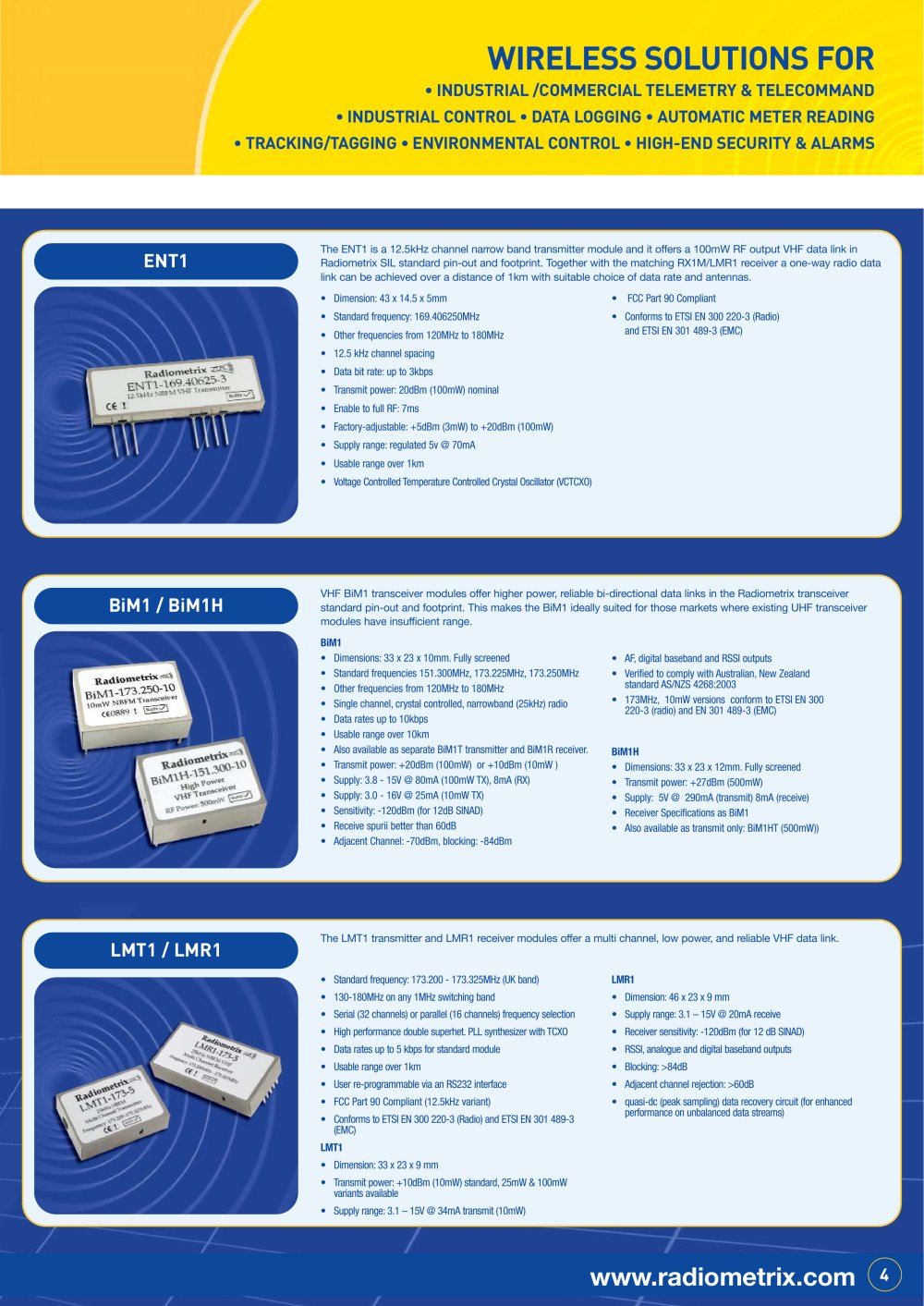

WIRELESS SOLUTIONS FOR
• INDUSTRIAL /COMMERCIAL TELEMETRY & TELECOMMAND • INDUSTRIAL CONTROL • DATA LOGGING • AUTOMATIC METER READING • TRACKING/TAGGING • ENVIRONMENTAL CONTROL • HIGH-END SECURITY & ALARMS
The ENT1 is a 12.5kHz channel narrow band transmitter module and it offers a 100mW RF output VHF data link inRadiometrix SIL standard pin-out and footprint. Together with the matching RX1M/LMR1
receiver a one-way radio data
link can be achieved over a distance of 1km with suitable choice of data rate and antennas.
ENT1
•Dimension: 43 x 14.5 x 5mm•Standard frequency: 169.406250MHz•Other frequencies from 120MHz to 180MHz
•12.5 kHz channel spacing
•Data bit rate: up to 3kbps
•Transmit power: 20dBm (100mW) nominal
•Enable to full RF: 7ms
•Factory-adjustable: +5dBm (3mW) to +20dBm (100mW)
•Supply range: regulated 5v @ 70mA
•Usable range over 1km
•Voltage Controlled Temperature Controlled Crystal Oscillator (VCTCXO)
•FCC Part 90 Compliant•Conforms to ETSI EN 300 220-3 (Radio) and ETSI EN 301 489-3 (EMC) BiM1H •Dimensions: 33 x 23 x 12mm. Fully screened
•Transmit power: +27dBm (500mW) •Supply: 5V @ 290mA (transmit) 8mA (receive)•Receiver Specifications as BiM1
•Also available as transmit only: BiM1HT (500mW)) VHF BiM1 transceiver modules offer higher power, reliable bi-directional data links in the Radiometrix transceiver standard pin-out and footprint. This makes the BiM1 ideally suited for those markets where existing UHF transceiver
modules have insufficient range.
BiM1 / BiM1H
BiM1 •Dimensions: 33 x 23 x 10mm. Fully screened
•Standard frequencies 151.300MHz, 173.225MHz, 173.250MHz •Other frequencies from 120MHz to 180MHz •Single channel, crystal controlled, narrowband (25kHz) radio
•Data rates up to 10kbps •Usable range over 10km
•Also available as separate BiM1T transmitter and BiM1R
receiver.
•Transmit power: +20dBm (100mW) or +10dBm (10mW )
•Supply: 3.8 - 15V @ 80mA (100mW TX), 8mA (RX)•Supply: 3.0 - 16V @ 25mA (10mW TX)•Sensitivity: -120dBm (for 12dB SINAD) •Receive spurii better than 60dB•Adjacent Channel: -70dBm, blocking: -84dBm
•AF, digital baseband and RSSI outputs•Verified to comply with Australian, New Zealand standard AS/NZS 4268:2003•173MHz, 10mW versions conform to ETSI EN 300 220-3 (radio) and EN 301 489-3 (EMC) LMR1 •Dimension: 46 x 23 x 9 mm
•Supply range: 3.1 – 15V @ 20mA receive
•Receiver sensitivity: -120dBm (for 12 dB SINAD)•RSSI, analogue and digital baseband outputs•Blocking: >84dB
•Adjacent channel rejection: >60dB
•quasi-dc (peak sampling) data recovery circuit (for enhanced performance on unbalanced data streams) The LMT1 transmitter and LMR1
receiver modules offer a multi channel, low power, and reliable VHF data link.
LMT1 / LMR1
•Standard frequency: 173.200 - 173.325MHz (UK band)•130-180MHz on any 1MHz switching band
•Serial (32 channels) or parallel (16 channels) frequency selection
•High performance double superhet. PLL synthesizer with TCXO•Data rates up to 5 kbps for standard module•Usable range over 1km
•User re-programmable via an RS232 interface
•FCC Part 90 Compliant (12.5kHz variant)
•Conforms to ETSI EN 300 220-3 (Radio) and ETSI EN 301 489-3 (EMC) LMT1 •Dimension: 33 x 23 x 9 mm•Transmit power: +10dBm (10mW) standard, 25mW & 100mW variants available•Supply range: 3.1 – 15V @ 34mA transmit (10mW)
