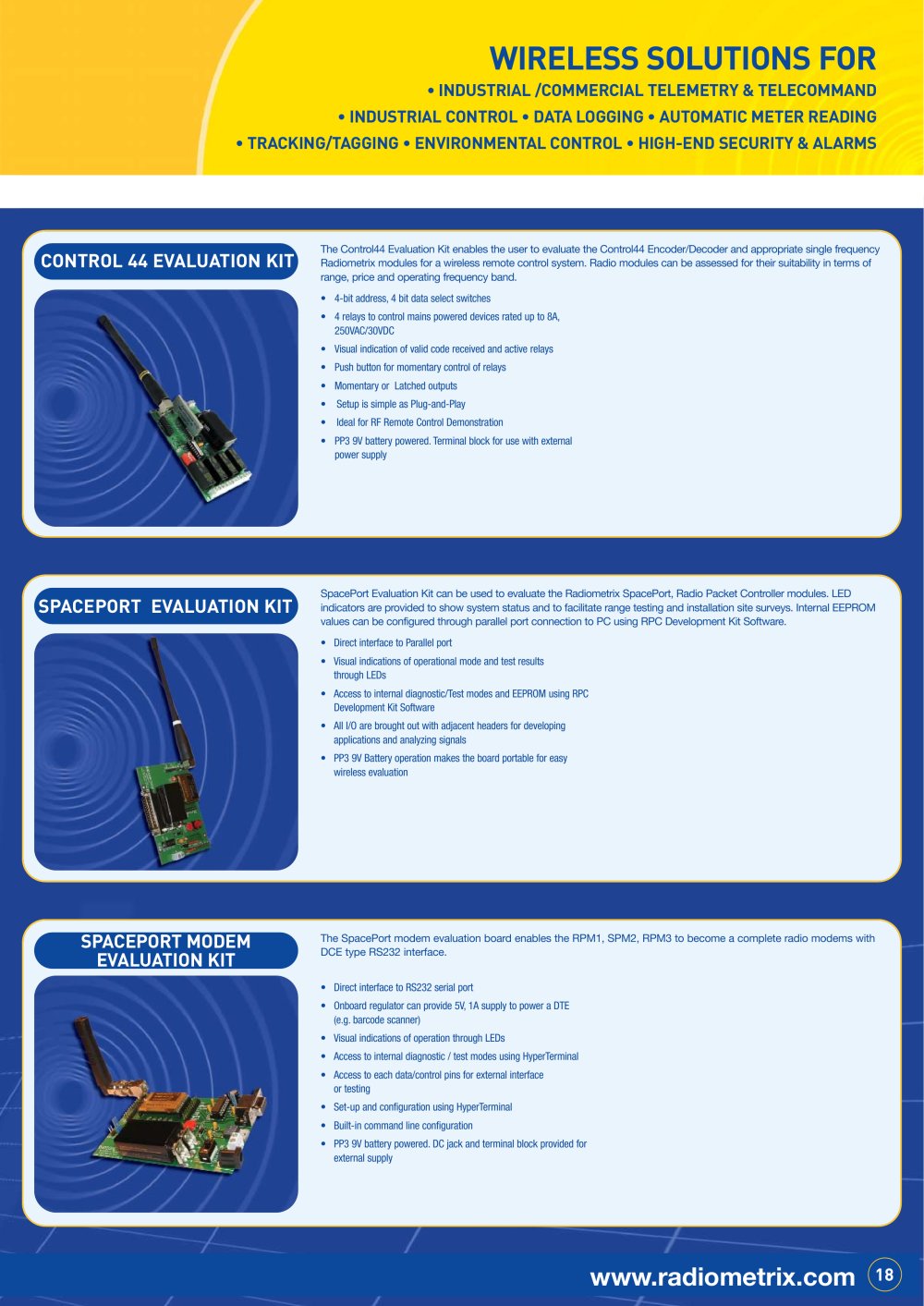

WIRELESS SOLUTIONS FOR

• INDUSTRIAL /COMMERCIAL TELEMETRY & TELECOMMAND • INDUSTRIAL CONTROL • DATA LOGGING • AUTOMATIC METER READING • TRACKING/TAGGING • ENVIRONMENTAL CONTROL • HIGH-END SECURITY & ALARMS

The Control44 Evaluation Kit enables the user to evaluate the Control44 Encoder/Decoder and appropriate single frequencyRadiometrix modules for a wireless remote control system. Radio modules can be assessed for their suitability in terms of range, price and operating frequency band.

CONTROL 44 EVALUATION KIT

•4-bit address, 4 bit data select switches•4 relays to control mains powered devices rated up to 8A,250VAC/30VDC•Visual indication of valid code received and active relays •Push button for momentary control of relays •Momentary or Latched outputs • Setup is simple as Plug-and-Play • Ideal for RF Remote Control Demonstration • PP3 9V battery powered. Terminal block for use with externalpower supply SpacePort Evaluation Kit can be used to evaluate the Radiometrix SpacePort, Radio Packet Controller modules. LED indicators are provided to show system status and to facilitate range testing and installation site surveys. Internal EEPROMvalues can be configured through parallel port connection to PC using RPC Development Kit Software.

SPACEPORT EVALUATION KIT

•Direct interface to Parallel port •Visual indications of operational mode and test results through LEDs •Access to internal diagnostic/Test modes and EEPROM using RPC Development Kit Software •All I/O are brought out with adjacent headers for developing applications and analyzing signals •PP3 9V Battery operation makes the board portable for easy wireless evaluation

SPACEPORT MODEM EVALUATION KIT

The SpacePort modem evaluation board enables the RPM1, SPM2, RPM3 to become a complete radio modems with DCE type RS232 interface. • Direct interface to RS232 serial port •Onboard regulator can provide 5V, 1A supply to power a DTE (e.g. barcode scanner) •Visual indications of operation through LEDs •Access to internal diagnostic / test modes using HyperTerminal •Access to each data/control pins for external interface or testing • Set-up and configuration using HyperTerminal •Built-in command line configuration •PP3 9V battery powered. DC jack and terminal block provided forexternal supply

www.radiometrix.com

18
